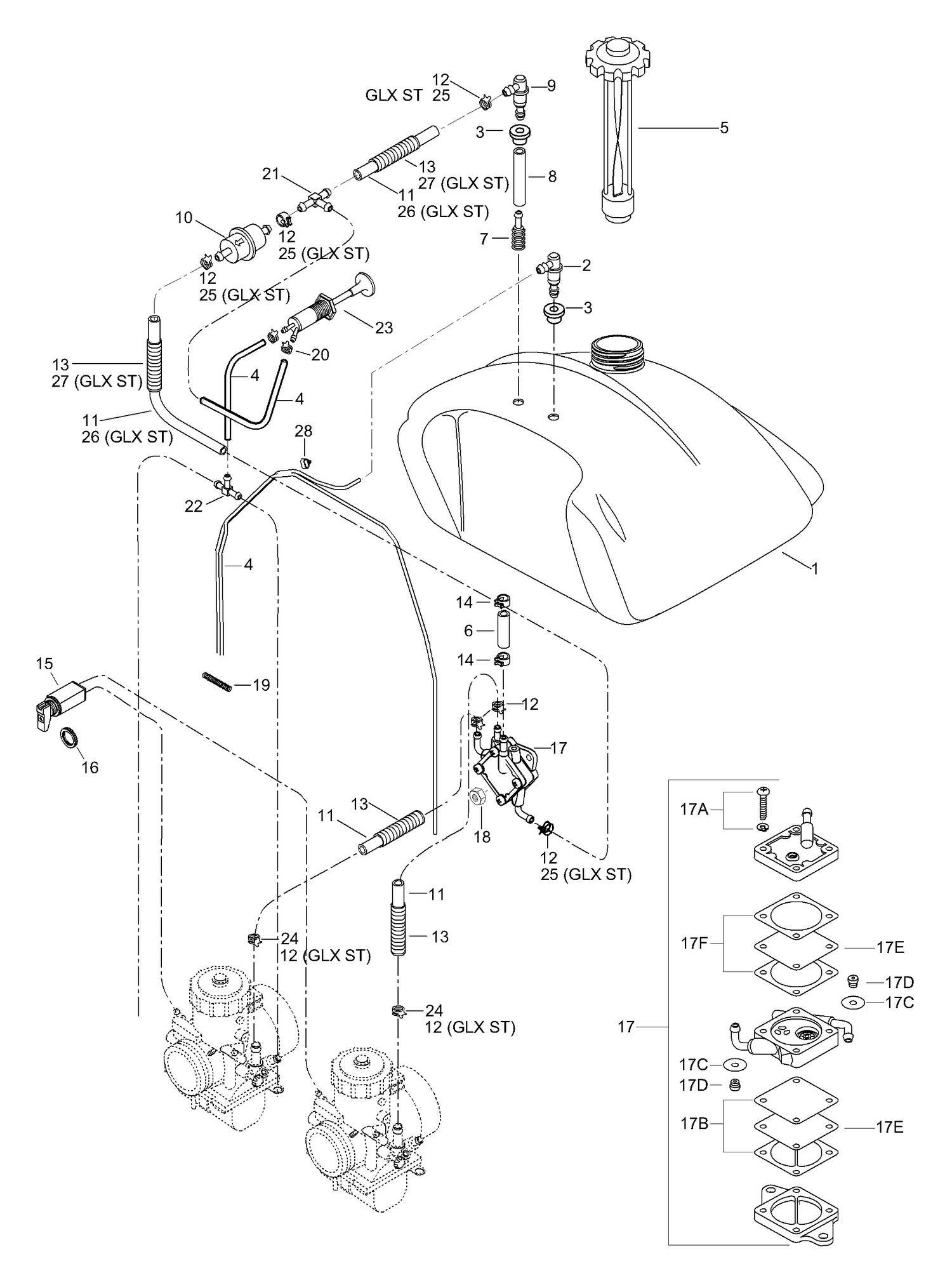

| Ref | Part Number | Description |
|---|
| 1 |
519393 |
Fuel tank 42 l |
| 2 |
533535 |
Connector-male |
| 3 |
280000674 |
Grommet This part replaces 28037. |
| 4 |
39035 |
Airpipe 5/3 |
| 5 |
572161200 |
Cap |
| 6 |
415080200 |
HOSE, POLYURETHANE - Call your local BRP dealership This part replaces 39001. |
| 7 |
414872100 |
Fuel Filter |
| 8 |
39048 |
Fuel hose 12.5/7.5 |
| 9 |
5341709 |
CONNECTOR-MALE - Call your local BRP dealership |
| 10 |
414536500 |
Fuel filter |
| 11 |
39004 |
Fuel hose 8/5 |
| 12 |
27086 |
CLAMP - Call your local BRP dealership |
| 13 |
Not |
Available As Spare Part - Spiral tube - DOES NOT APPLY TO THIS MODEL |
| 14 |
414420700 |
Universal Spring Clamp |
| 15 |
535482 |
Choke |
| 16 |
512059364 |
NUT-PLASTIC - Call your local BRP dealership This part replaces 414977200. |
| 17 |
19113 |
FUEL PUMP ASS'Y - Call your local BRP dealership |
| 17A |
Not |
Available As Spare Part - Screw - DOES NOT APPLY TO THIS MODEL |
| 17B |
Not |
Available As Spare Part - Gasket - DOES NOT APPLY TO THIS MODEL |
| 17C |
Not |
Available As Spare Part - Grommet - DOES NOT APPLY TO THIS MODEL |
| 17D |
Not |
Available As Spare Part - Valve - DOES NOT APPLY TO THIS MODEL |
| 17E |
Not |
Available As Spare Part - Diaphragm - DOES NOT APPLY TO THIS MODEL |
| 17F |
Not |
Available As Spare Part - Gasket - DOES NOT APPLY TO THIS MODEL |
| 18 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 19 |
25006 |
Spring |
| 20 |
Not |
Available As Spare Part - Clamp - DOES NOT APPLY TO THIS MODEL |
| 21 |
Not |
Available As Spare Part - T-piece, fuel - DOES NOT APPLY TO THIS MODEL |
| 22 |
Not |
Available As Spare Part - T-piece, fuel - DOES NOT APPLY TO THIS MODEL |
| 23 |
Not |
Available As Spare Part - Primer - DOES NOT APPLY TO THIS MODEL |
| 24 |
Not |
Available As Spare Part - Clamp - DOES NOT APPLY TO THIS MODEL |
| 25 |
414415200 |
Clamp |
| 26 |
39046 |
Fuel hose 11/8 |
| 27 |
28015 |
Spiral tube |
