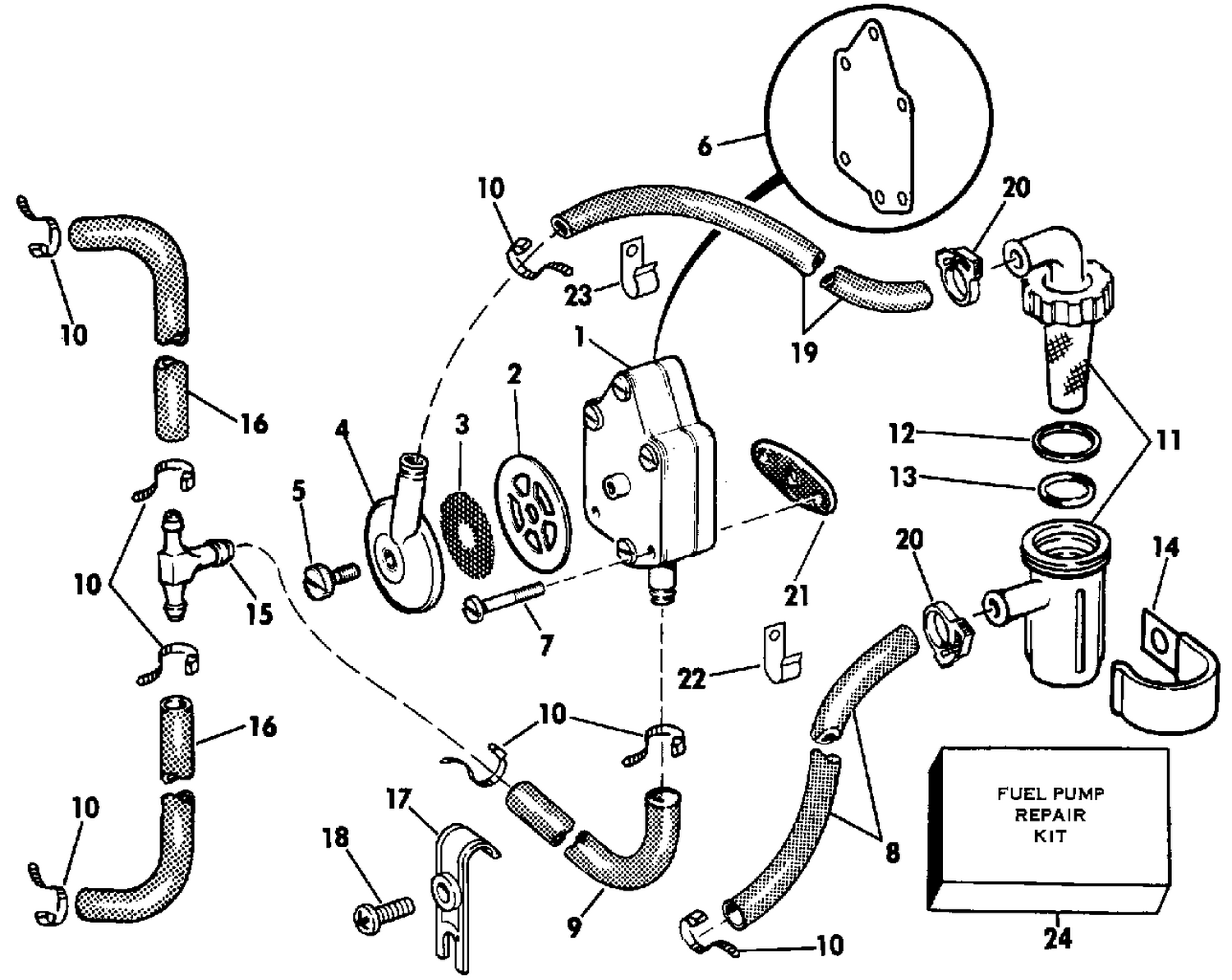

| Ref | Part Number | Description |
|---|
| 1 |
0438556 |
FUEL PUMP ASSY. This part replaces 0398338. |
| 2 |
0338879 |
GASKET, Cap to pump, upper This part replaces 0332694. |
| 4 |
0330092 |
CAP Filter |
| 8 |
HOSE, |
Connector to filter 229mm (9") |
| 9 |
0332911 |
HOSE, Oil pulse, upper This part replaces 0327414. |
| 10 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 11 |
0397715 |
FILTER, Fuel |
| 15 |
0326031 |
TEE, Carburetor hose |
| 16 |
HOSE, |
Tee to carburetor 76mm (3") |
| 17 |
0333739 |
RETAINER, Fuel hose to cover This part replaces 0318313. |
| 18 |
0310539 |
SCREW, Clamp choke solenoid |
| 19 |
HOSE, |
Fuel filter to fuel pump 102mm (4") |
| 21 |
0303615 |
GASKET |
| 22 |
0310947 |
CLAMP |
| 23 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
