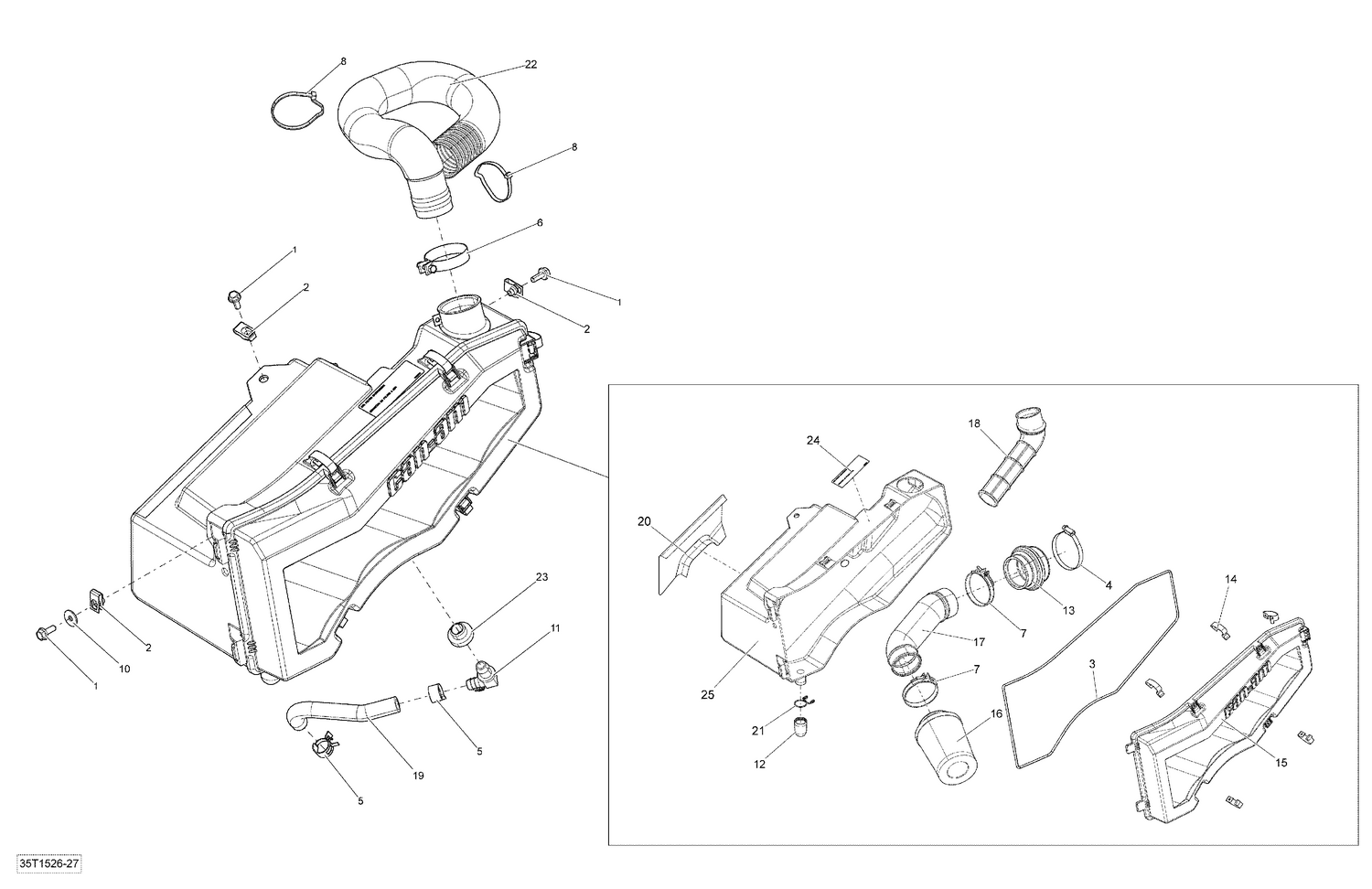

02- Air Intake Silencer _35T1527
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207661646 | Hex. Flange Screw M6 X 16 |
| 2 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000048. |
| 3 | 293250178 | GASKET - Call your local BRP dealership |
| 4 | 293650091 | Norma Clamp |
| 5 | 293650110 | Norma Clamp |
| 6 | 293650160 | GEMI CLAMP - Call your local BRP dealership |
| 7 | 293650175 | Clamp |
| 8 | 293750008 | Tie Wrap 368 mm |
| 10 | 250200082 | Flat Washer |
| 11 | 414523600 | Elbow Fitting |
| 12 | 707800080 | Drain Tube |
| 13 | 707800177 | INTAKE ADAPTOR - Call your local BRP dealership |
| 14 | 707800249 | Cover Bracket |
| 15 | 707800263 | AIR INTAKE SILENCER COVER - Call your local BRP dealership |
| 16 | 707800264 | Air Filter |
| 17 | 707800265 | RIGID ADAPTOR - Call your local BRP dealership |
| 18 | 707800266 | FRONT INTAKE ADAPTOR - Call your local BRP dealership |
| 19 | 707800268 | VENT HOSE - Call your local BRP dealership |
| 20 | 707800276 | HEAT PROTECTOR - Call your local BRP dealership |
| 21 | 707800278 | Retainer Clip |
| 22 | 707800287 | VENT HOSE - Call your local BRP dealership |
| 23 | 707800347 | Grommet |
| 24 | 707800373 | Air Filter Maintenance Decal |
