| Ref | Part Number | Description |
|---|
| 1 |
0124880 |
SCREW, Bracket, timing pointer |
| 2 |
0585104 |
STOP SWITCH |
| 3 |
0314002 |
BUSHING |
| 4 |
0336111 |
HANDLE, Shift |
| 5 |
0336182 |
LEVER, Starter lockout |
| 6 |
0335365 |
LEVER, Shift |
| 7 |
0343273 |
LINK, Shift handle to lever |
| 8 |
0336154 |
PIN, Shift link |
| 9 |
0439585 |
PIN & RETAINER ASSY., Shift handle This part replaces 0336155. |
| 10 |
0301912 |
COTER PIN |
| 10 |
516010651 |
BRP Logo 20 MM x 2 MM |
| 12 |
0336180 |
PLATE, Retaining |
| 13 |
0336417 |
DISPOSITIF DE RETENUE, tringlerie de sens de marche |
| 14 |
0332070 |
SCREW, Retaining plate |
| 15 |
0336537 |
SLEEVE, Steering handle screw |
| 15 |
704909040 |
Emblem BRP Logo 48 MM UV |
| 17 |
0336156 |
STEERING ARM |
| 18 |
0433325 |
CABLE ASSY., Throttle |
| 19 |
0345064 |
COLLAR, Throttle friction This part replaces 0336137. |
| 20 |
0336159 |
COVER, Steering arm |
| 24 |
0336445 |
HOLDER, Spare parts |
| 27 |
0336220 |
PLATE, Steering arm |
| 29 |
0336558 |
RETAINER, Throttle cable |
| 30 |
0315232 |
RETAINER , Needle valve stbd |
| 30 |
704909040 |
Emblem BRP Logo 48 MM UV |
| 32 |
0124880 |
SCREW, Bracket, timing pointer |
| 33 |
0335377 |
SCREW, Steering handle |
| 37 |
0334135 |
BUSHING |
| 38 |
0336596 |
TUBING, Cable and leads |
| 40 |
0432927 |
CABLE ASSY., Starter lockout |
| 42 |
0324690 |
DRIVE PIN |

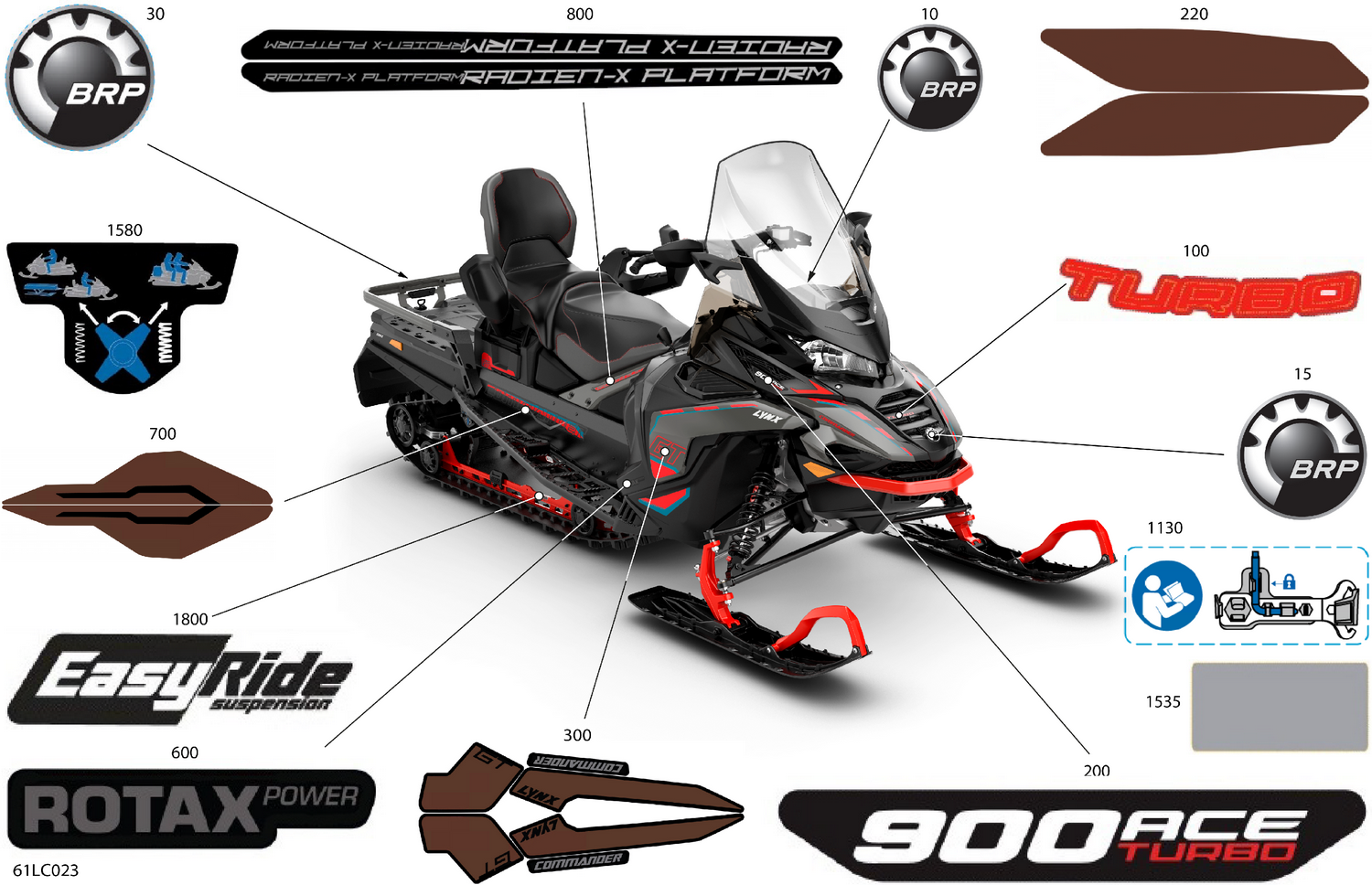

| 100 |
516009698 |
Hood Decal "Turbo" |
| 200 |
516009687 |
Upper Side Panel Decal "900 ACE Turbo" |
| 220 |
516010670 |
LH/RH Front Hood Decal |
| 300 |
516010667 |
LH/RH Side Panel Decal |
| 600 |
516008760 |
Decal "Rotax Power" |
| 700 |
516010668 |
LH/RH Frame Decal |
| 800 |
516010669 |
LH/RH Platform Decal |
| 1130 |
516011629 |
Tool Instruction Label |
| 1535 |
516009954 |
Protective Decal |
| 1580 |
516009928 |
Suspension Adjustment Decal |
