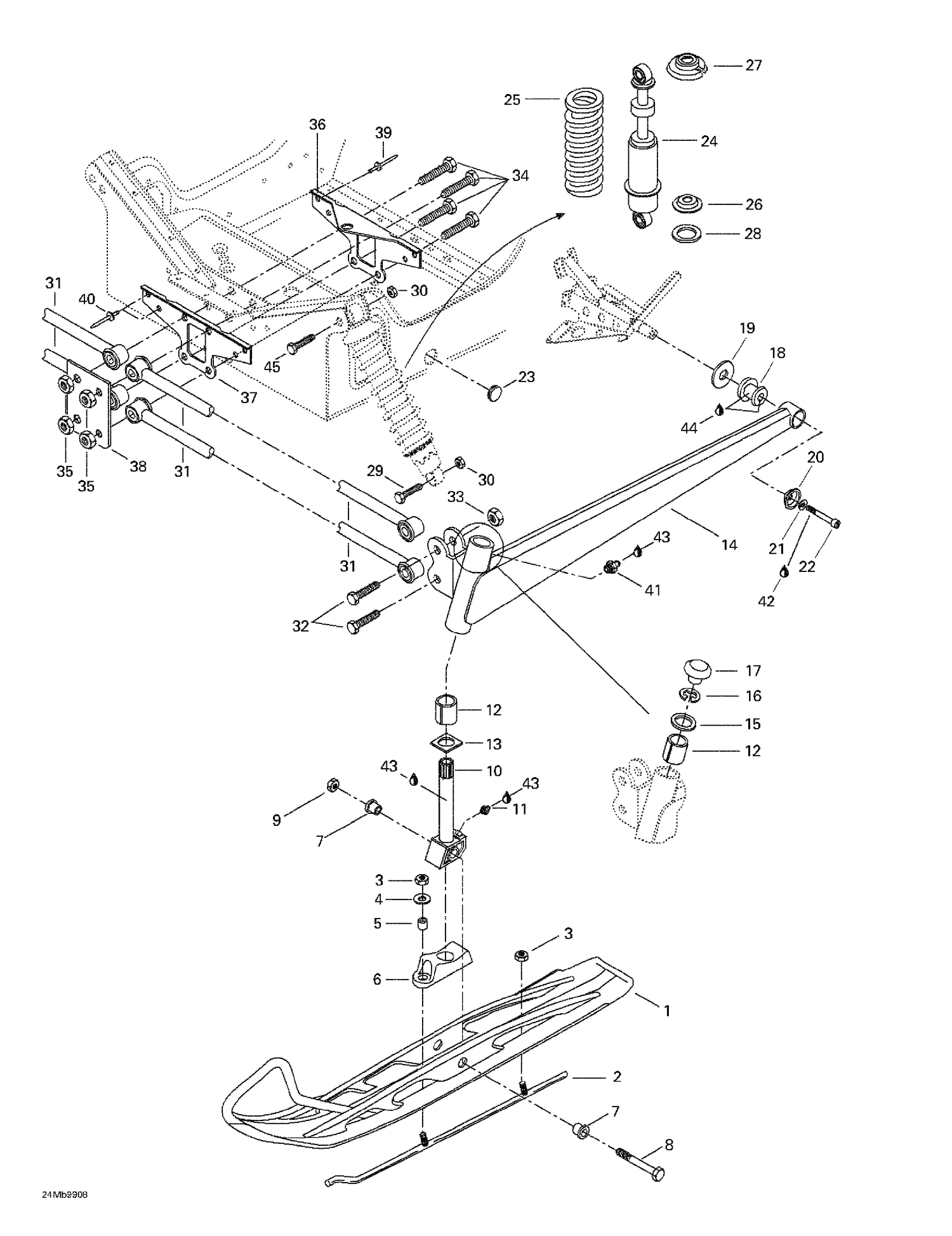

07- Front Suspension And Ski
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 505070199 | Ski |
| 2 | 505066102 | Runner |
| 3 | 232581414 | Hex. Elastic Stop Nut M8 |
| 4 | 234082410 | Flat Washer 8 mm This part replaces 224080251. |
| 5 | 506117300 | BUSHING - Call your local BRP dealership |
| 6 | 570053500 | Ski Stopper |
| 7 | 414530600 | CUSHION - Call your local BRP dealership |
| 8 | 270006044 | Hex. Screw |
| 9 | 232521414 | NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045. |
| 11 | 408200700 | Grease Fitting |
| 12 | 572069900 | Cushion |
| 13 | 506081200 | Wear Plate |
| 14 | 506133510 | RH Swing Arm |
| 15 | 506080900 | Thrust Washer |
| 16 | 371910400 | CIRCLIP - Call your local BRP dealership |
| 17 | 572091300 | Cap |
| 18 | 570062200 | DAMPER - Call your local BRP dealership |
| 19 | 503146700 | WASHER - Call your local BRP dealership |
| 20 | 705007171 | Cup This part replaces 506115800. |
| 21 | 234181401 | Lock Washer 8 mm This part replaces 224781140. |
| 22 | 205082544 | Socket Head Screw M8 X 25 This part replaces 222982565. |
| 23 | 414916600 | Black, Nylon Cap |
| 24 | 505070013 | Shock |
| 25 | 414955800 | Shock Spring (Black) |
| 26 | 503165100 | GUIDE_SPRING - Call your local BRP dealership |
| 27 | 706200881 | Spring Stopper This part replaces 503140600. |
| 28 | 503184400 | Washer |
| 29 | 207005544 | Hex. Screw M10 X 55 |
| 30 | 233601416 | Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 31 | 580649500 | Arm Ass'y |
| 32 | 207025044 | Hex. Screw M12 x 50 |
| 33 | 232521414 | NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045. |
| 34 | 732601113 | Hex. Screw M12 x 100 |
| 35 | 232521414 | NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045. |
| 36 | 517254900 | Rear Link Plate |
| 37 | 517254800 | Front Link Plate |
| 38 | 518306700 | Support |
| 39 | 390909200 | Avex Rivet |
| 40 | 390404900 | Rivet pop 1/4" |
| 41 | 408200700 | Grease Fitting |
| 42 | 293800060 | Loctite 243, 10 ml This part replaces 293800015. |
| 43 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 44 | 293550030 | Grease, Super Lube This part replaces 293550014. |
| 506133410 | Bras | Oscillant GA 506133410 |
| 506133410 | LH | Swing Arm 506133410 |
