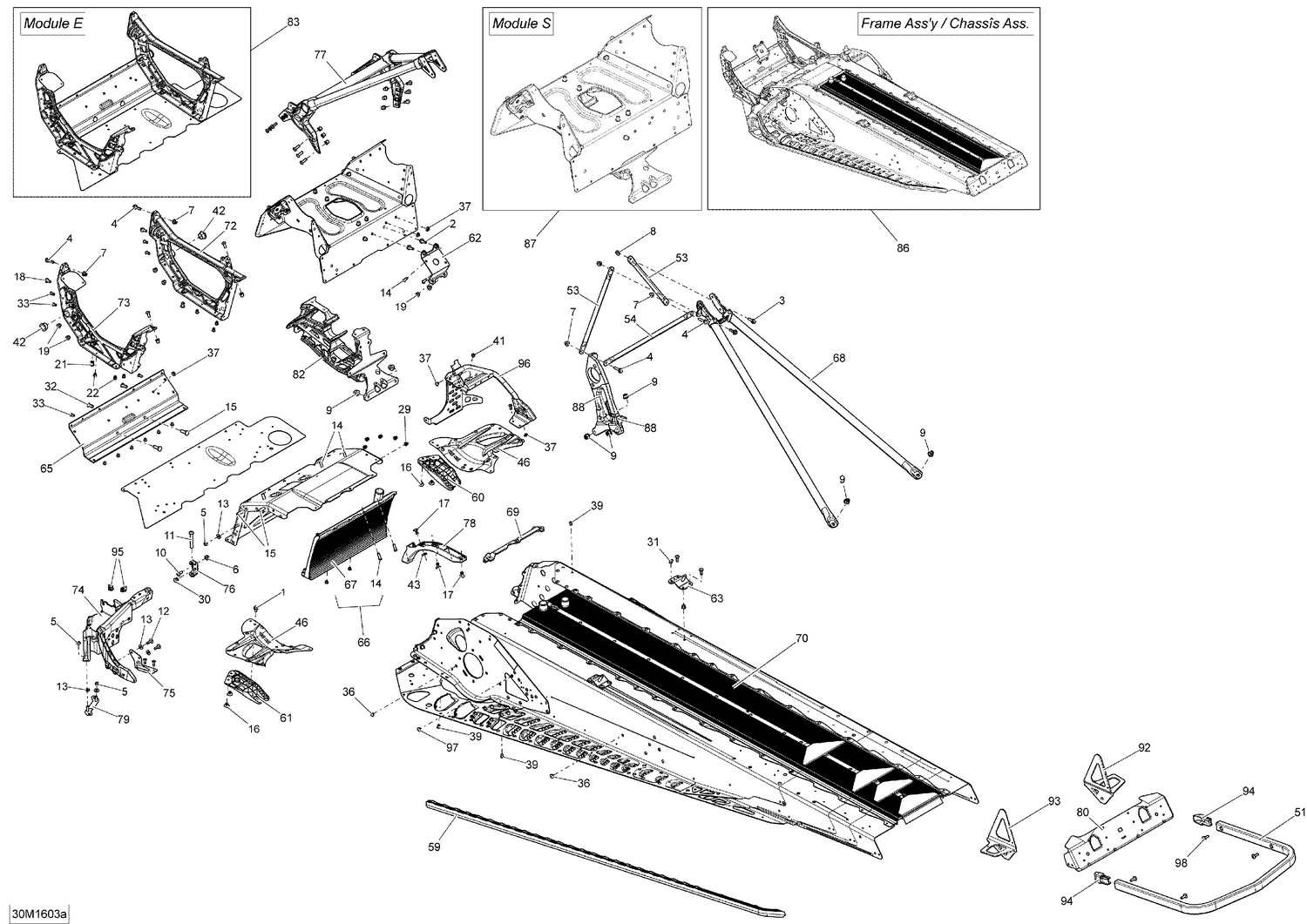

09- Frame - Package Sport
Parts (71)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 2 | 207661644 | Hex. Flange Screw M6 X 16 |
| 3 | 207662044 | Hex. Flange Screw M6 X 20 |
| 4 | 207662544 | Hex. Flange Screw M6 X 25 |
| 5 | 232561414 | Elastic Stop Nut M6 |
| 6 | 233061414 | Hex. Flange Nut M6 |
| 7 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 8 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 9 | 233281414 | Hex. Flange Elastic Nut M8 |
| 10 | 250000534 | Tork Screw M6 X 16 |
| 11 | 250000535 | Torx Screw M8 X 55 |
| 12 | 250000536 | Tork Screw M6 X 18 |
| 13 | 250200039 | Flat Washer |
| 14 | 250300027 | Clinch Stud M6 X 20 |
| 15 | 250300038 | Clinch Stud |
| 16 | 293150104 | Pop Rivet 3/16" |
| 17 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 18 | 210261650 | Hex. Flange Screw M6 X 16 |
| 19 | 293150119 | Hemlock Rivet, 6.5 mm |
| 21 | 293150120 | Hemlock Rivet 6.5 mm |
| 22 | 293150144 | Stavex Rivet |
| 29 | 293150146 | Henrob Rivet |
| 30 | 293150266 | Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 31 | 293150174 | Hemlock Rivet, 6.4 mm |
| 32 | 293150182 | Monobolt Rivet 6.4 |
| 33 | 293150191 | Monobolt Rivet, 4.8 mm |
| 36 | 293730041 | Full Moon Dart 8 mm |
| 37 | 293730042 | Full Moon Dart 5 mm |
| 37 | 293730053 | Black Dart 5 mm |
| 39 | 390909100 | Avex Rivet |
| 41 | 390909200 | Avex Rivet |
| 42 | 505073317 | Leg Cushion |
| 43 | 517124300 | Washer |
| 46 | 518324874 | RH Reinforcement |
| 46 | 518324875 | LH Reinforcement |
| 51 | 518324980 | Clear Rear Bumper |
| 53 | 518325114 | Upper Lateral Column Support |
| 54 | 518325115 | Center Column Support |
| 59 | 518325377 | RH ROLLER - Call your local BRP dealership |
| 59 | 518325378 | LH Roller |
| 60 | 518325782 | RH Deflector, Black Polypropylene |
| 61 | 518325783 | LH Deflector, Black Polypropylene |
| 62 | 518325943 | MAG Engine Support |
| 63 | 518325973 | RH Rear Base |
| 63 | 518325974 | LH Rear Base |
| 65 | 518326198 | Front Member |
| 66 | 518326485 | Front Radiator |
| 67 | 518326485 | Front Radiator This part replaces 518326486. |
| 68 | 518326559 | Rear Member |
| 69 | 518326656 | Seal |
| 70 | 518327588 | Rear Radiator 137'' |
| 72 | 518326795 | RH Member |
| 73 | 518326796 | LH Member |
| 74 | 518326820 | LH Stirup |
| 75 | 518326960 | Support |
| 76 | 518326961 | U-Attach |
| 77 | 518326970 | Front Member |
| 78 | 518326973 | Front Tunnel Protector |
| 79 | 518326986 | Attach |
| 80 | 518327105 | Rear Cap |
| 82 | 518327487 | Front Suspension Support |
| 83 | 518327567 | E Module |
| 86 | 415130276 | FRAME 137 RENEGADE - Call your local BRP dealership This part replaces 415130018. |
| 87 | 518328320 | Cross Member S Module |
| 88 | 518328346 | Pulley Support |
| 92 | 518328789 | RH Bracket |
| 93 | 518328790 | LH Bracket |
| 94 | 520000567 | Full Moon Cap |
| 95 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 96 | 518328938 | RH Stirup |
| 97 | 293730059 | Full Moon Dart 10 mm |
