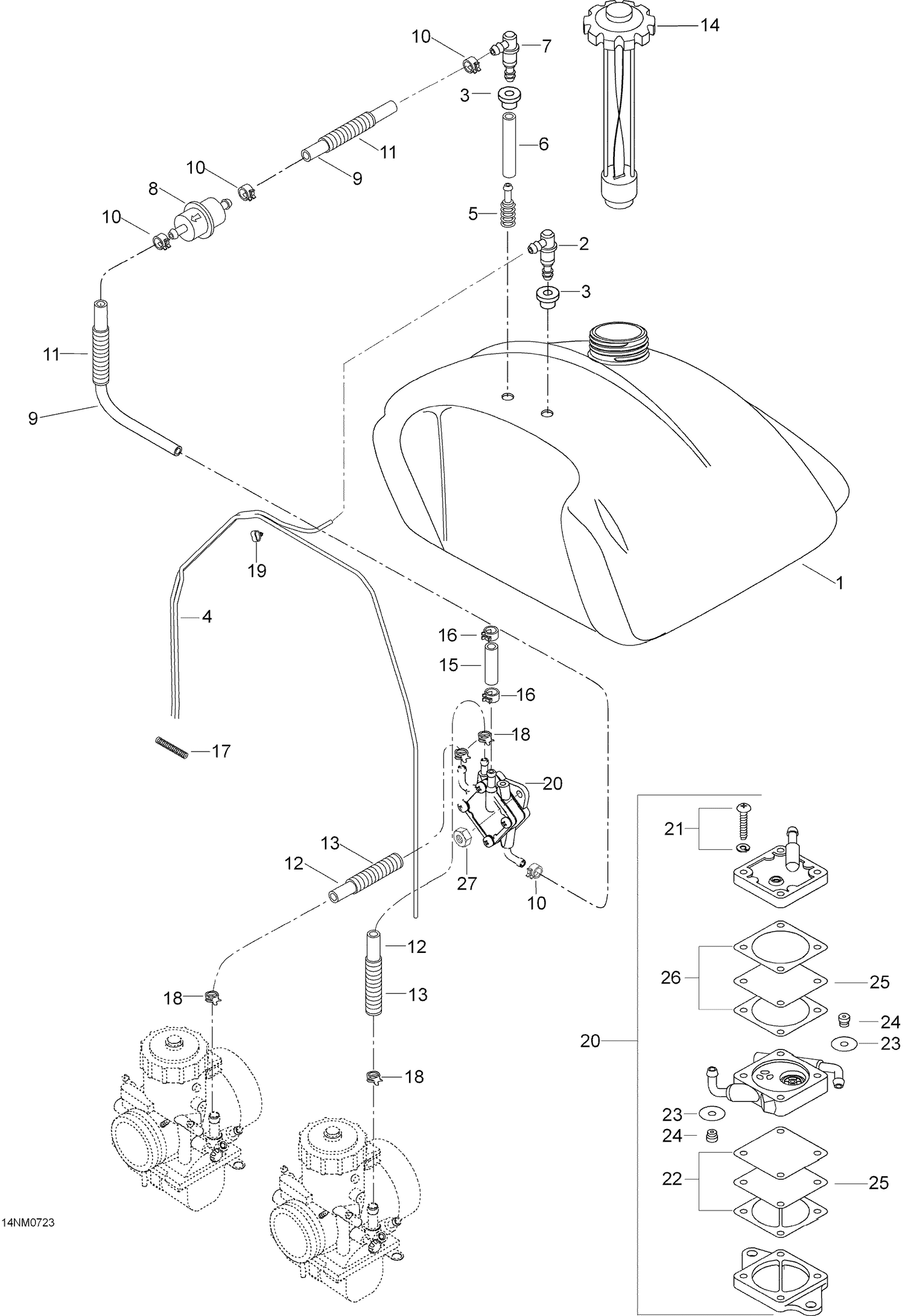

| Ref | Part Number | Description |
|---|
| 1 |
519393 |
Polttoainetankki 42 l |
| 2 |
533535 |
Connector-male |
| 3 |
280000674 |
Grommet This part replaces 28037. |
| 4 |
39035 |
Ilmaletku 5/3, 1800 mm |
| 5 |
414872100 |
Fuel filter (in tank, fuel line) |
| 6 |
39048 |
Fuel line 12.5/7.5, 440 mm |
| 7 |
5341709 |
CONNECTOR-MALE - Call your local BRP dealership |
| 8 |
414536500 |
Polttoaineen suodatin |
| 9 |
39046 |
Polttoaineletku 11/8 |
| 10 |
414415200 |
Universal Spring Clamp |
| 11 |
28015 |
Suojaspiraali PP-MOD 13 (D=15.8) |
| 12 |
39004 |
Polttoaineletku 8/5 |
| 13 |
28012 |
Skydd spiral slang |
| 14 |
605349994 |
Mittari-korkki |
| 15 |
415080200 |
HOSE, POLYURETHANE - Call your local BRP dealership This part replaces 39001. |
| 16 |
414420700 |
Universal Spring Clamp |
| 17 |
25003 |
Tukijousi |
| 18 |
414554800 |
Jousikiristin |
| 19 |
513032923 |
TUBE CLAMP - Call your local BRP dealership |
| 21 |
Not |
Available As Spare Part - Screw |
| 22 |
404902300 |
GASKET - Call your local BRP dealership |
| 23 |
404902100 |
GROMMET - Call your local BRP dealership |
| 24 |
275500042 |
VALVE - Call your local BRP dealership |
| 25 |
404902200 |
DIAPHRAGM - Call your local BRP dealership |
| 26 |
404902400 |
GASKET - Call your local BRP dealership |
