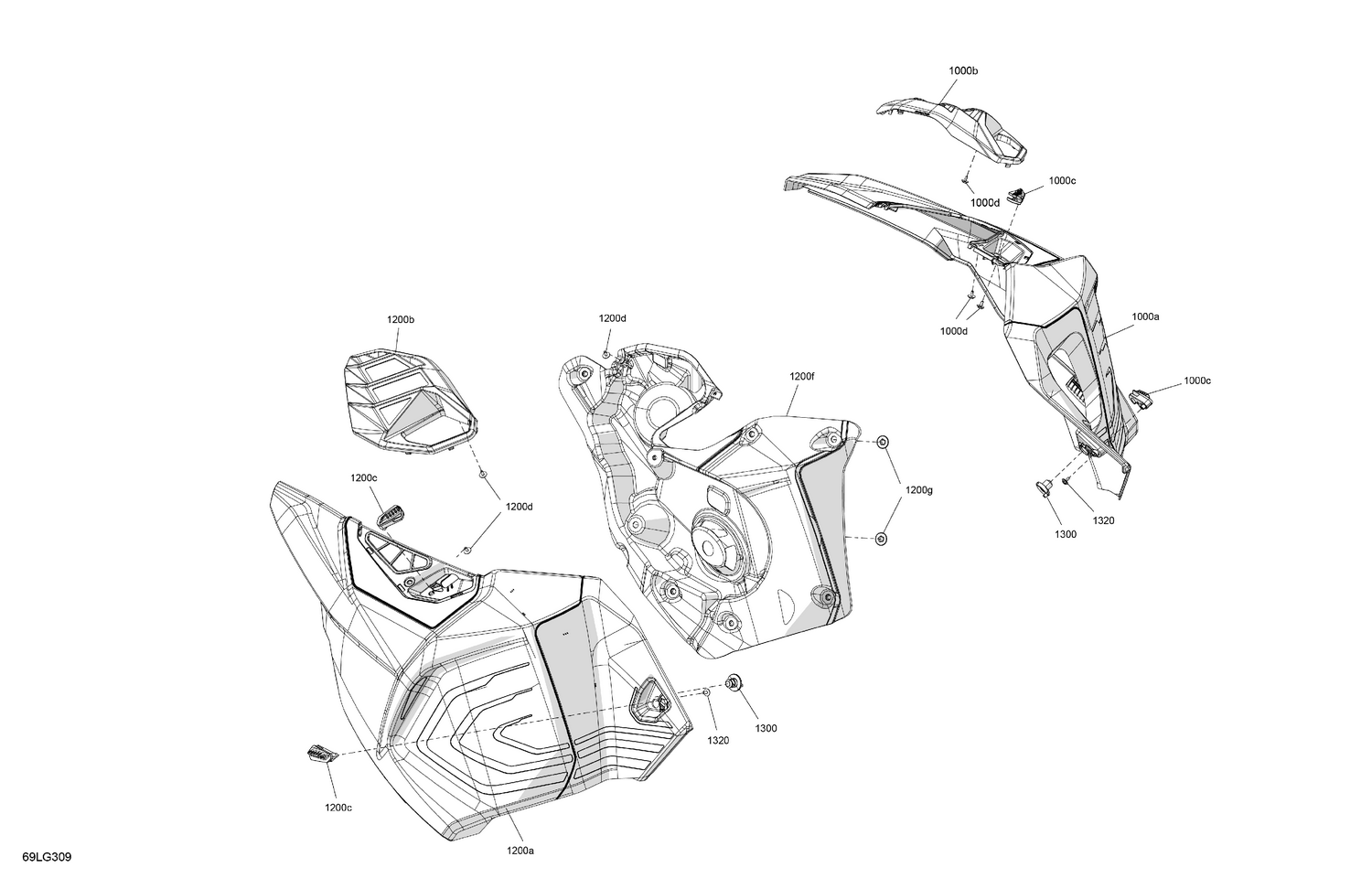

07- Body - Side Panels
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1000a | 517307223 | RH Side Panel Without Opening This part replaces 517310095. |
| 1000b | 517308589 | Deep Black, RH Grille Trim |
| 1000c | 517305773 | RH Rear Latch |
| 1000d | 250000805 | Plastite Screw M4 X 10 |
| 1200a | 517308736 | Deep Black, LH Panel This part replaces 517310105. |
| 1200b | 517308684 | Deep Black, LH Grille Trim |
| 1200c | 517305774 | LH Rear Latch |
| 1200d | 250000805 | Plastite Screw M4 X 10 |
| 1200f | 517308590 | Acoustic Panel |
| 1200g | 508000853 | Push Nut |
| 1300 | 517305985 | Rear Stud |
