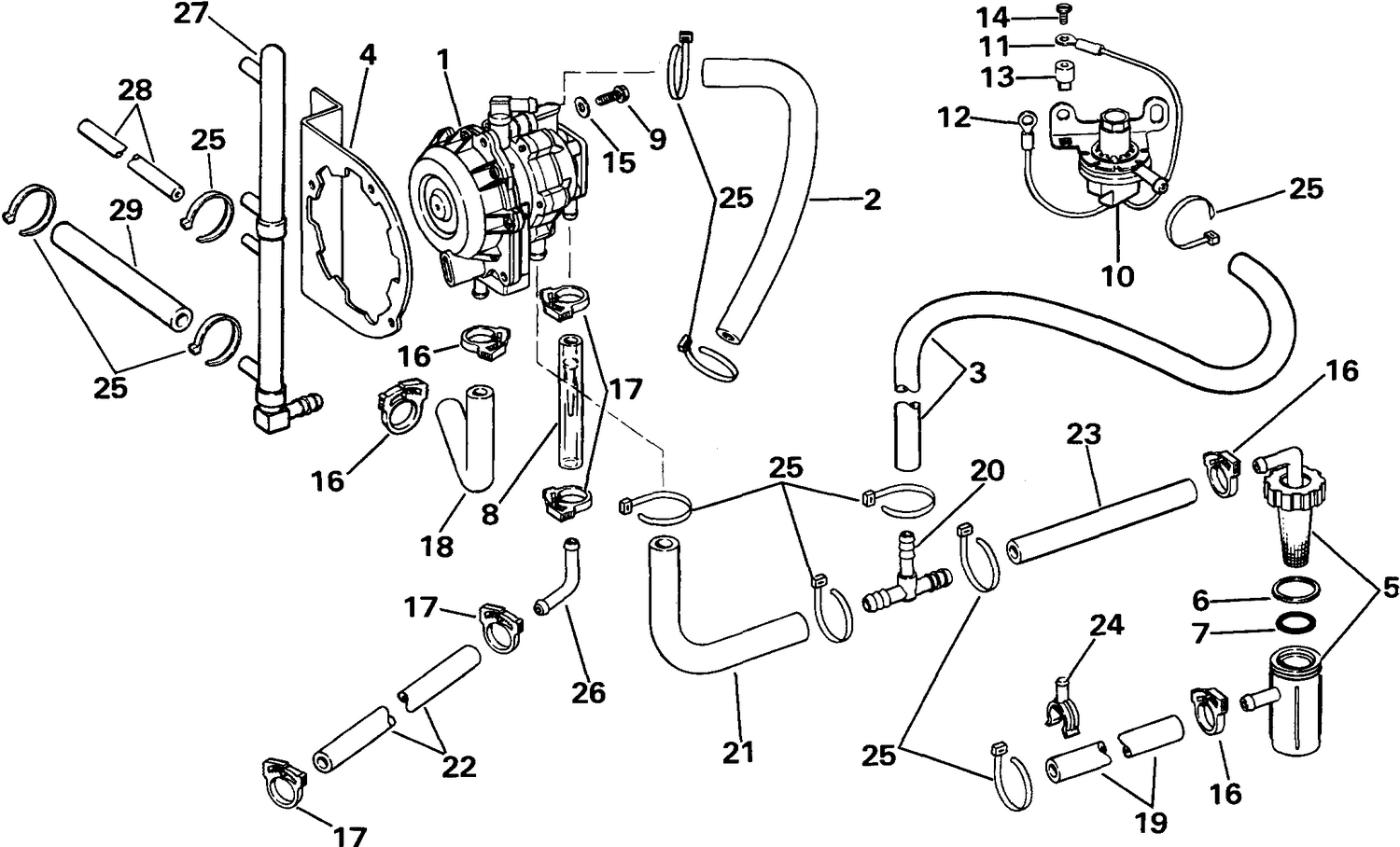

| Ref | Part Number | Description |
|---|
| 1 |
5007423 |
Kit Ay This part replaces 0174563. |
| 2 |
0333395 |
HOSE, Connector to filter This part replaces 0320572. |
| 3 |
0332728 |
HOSE, Tee to # 3 carb. This part replaces 0330430. |
| 4 |
0329605 |
BRACKET, Fuel pump to manifold |
| 5 |
0397715 |
FILTER, Fuel This part replaces 0394375. |
| 8 |
0395183 |
FILTER & OIL HOSE ASSY., Lower |
| 10 |
0394937 |
VACUUM SWITCH |
| 13 |
0328600 |
TERMINAL GROMMET |
| 14 |
0330448 |
SCREW, Switch lead |
| 17 |
0322654 |
PINCE RAPIDE, flexible d'huile |
| 19 |
HOSE, |
Fuel connector to filter, 238 mm (9-3/8") |
| 20 |
0329603 |
TEE, Fuel hose |
| 21 |
0333397 |
HOSE, Connector to filter This part replaces 0329604. |
| 22 |
HOSE, |
Connector to elbow 70 mm (2-3/4") |
| 23 |
HOSE, |
Filter to tee 178 mm (7") |
| 24 |
0329661 |
SUPPORT/BOUCHON |
| 25 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 26 |
0330323 |
ELBOW, Connector to pump |
| 27 |
0390466 |
FUEL MANIFOLD ASSY |
| 28 |
HOSE, |
Manifold to primer 171mm (6-3/4") |
