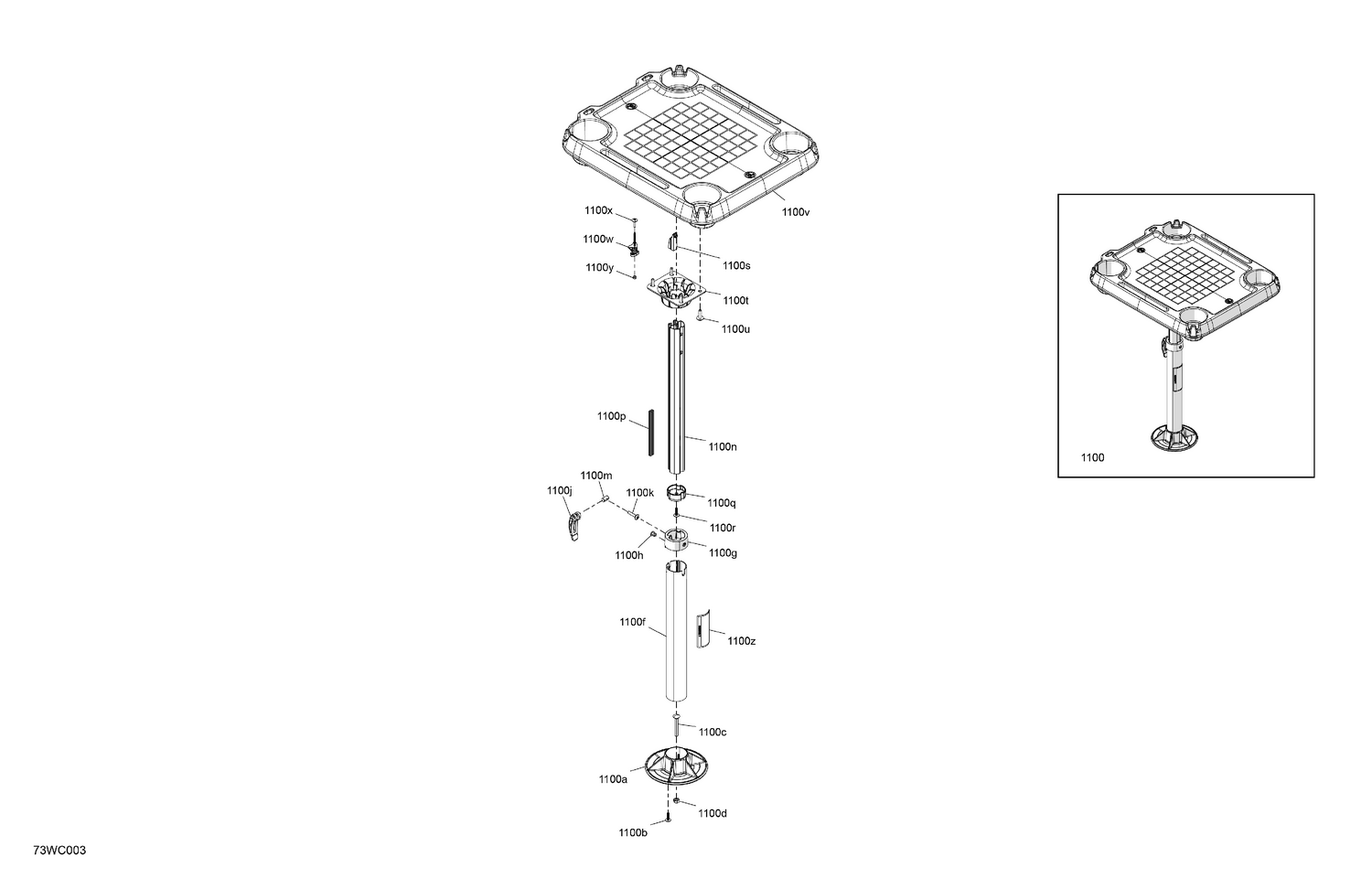

07- FURNITURE - Adjustable Table
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1100a | 269003363 | Table Base |
| 1100b | 250001087 | Flange Screw Plastite #10, 14 X 7/8" |
| 1100c | 207786060 | Carriage Bolt M8 X 60 |
| 1100d | 232081600 | Hex. Nut M8 |
| 1100f | 295101129 | Ext Tube Service Kit |
| 1100g | 269003667 | Adjusting Ring |
| 1100h | 293150284 | Ornit Rivet 6,4 X 15.6 |
| 1100j | 277002094 | Anodized Lock Lever |
| 1100k | 250000634 | Stainless Torx Screw M6 X 30 |
| 1100m | 506153052 | Lever Pin |
| 1100n | 269003691 | Int Tube |
| 1100p | 269003779 | Stopper |
| 1100q | 269003669 | End Piece |
| 1100r | 250001087 | Flange Screw Plastite #10, 14 X 7/8" |
| 1100s | 269003815 | Spacer |
| 1100t | 269003712 | Upper Support |
| 1100u | 250000978 | Hexagonal Cap Screw M6 X 25 |
| 1100v | 269003365 | Table Top |
| 1100w | 269003881 | Lock Lever |
| 1100x | 250000895 | Torx-Truss M/S M5X20 |
| 1100y | 232551200 | Elastic Stop Nut 5 mm |
