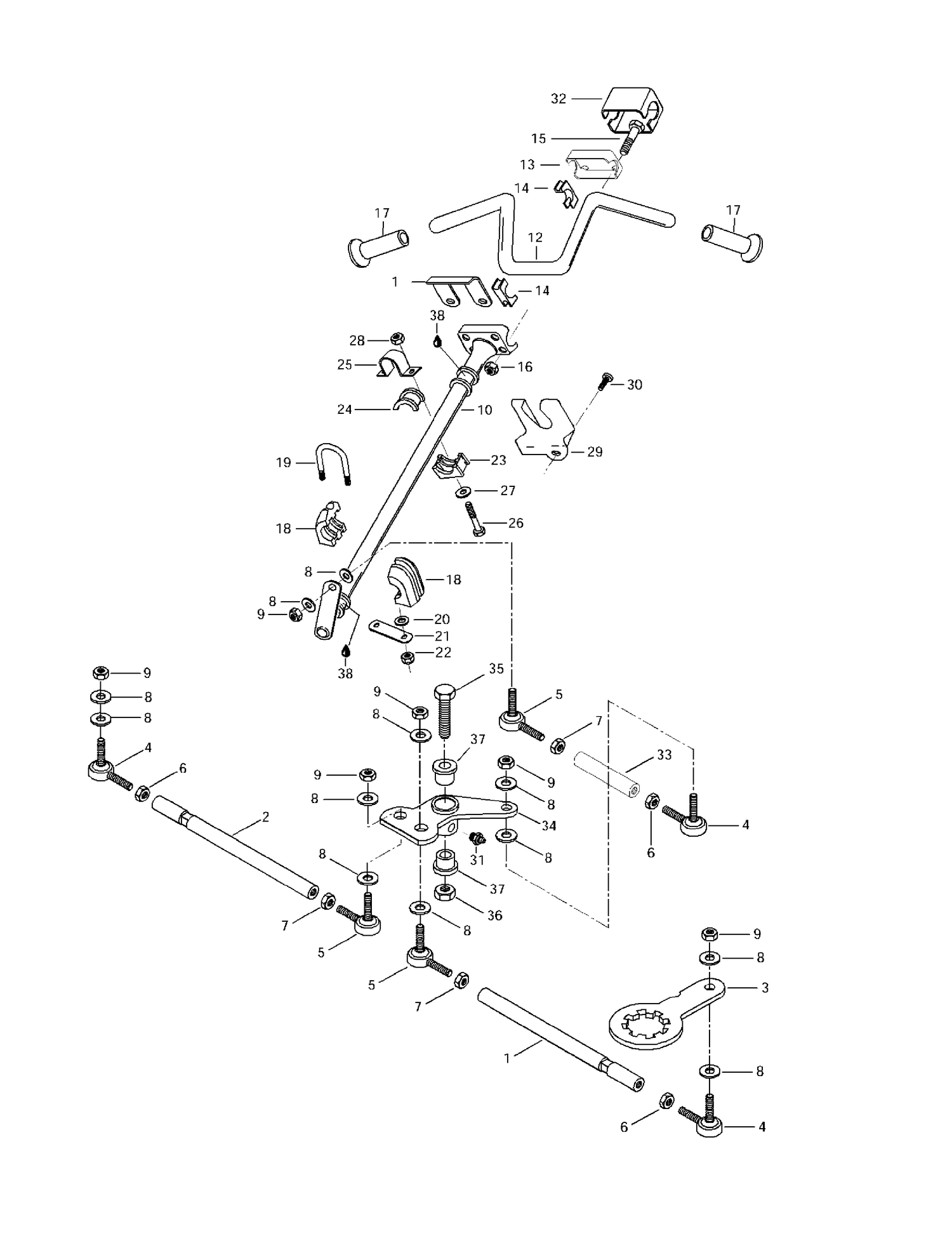

| Ref | Part Number | Description |
|---|
| 1 |
506113300 |
Tie Rod |
| 2 |
506113400 |
Tie Rod |
| 3 |
506121800 |
Steering Arm |
| 4 |
506151492 |
RH BALL JOINT - Call your local BRP dealership This part replaces 414768000. |
| 5 |
506151845 |
LH JOINT BALL - Call your local BRP dealership This part replaces 414768100. |
| 6 |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 7 |
250100016 |
LH Threaded Hex. Jam Nut M10 This part replaces 732610011. |
| 8 |
503125900 |
HARD WASHER - Call your local BRP dealership |
| 9 |
232501416 |
Elastic Flange Nut M10 This part replaces 732610042. |
| 10 |
506113600 |
Main Tube |
| 11 |
517224200 |
Retainer Support |
| 12 |
506115900 |
Handlebar |
| 13 |
506055400 |
Steering Clamp |
| 14 |
709400919 |
Steering Support This part replaces 414491600. |
| 15 |
207085544 |
Hex. Screw M8 X 55 This part replaces 222085565. |
| 16 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 17 |
506151530 |
RH Grip 6-1/2" This part replaces 572061700. |
| 18 |
572067100 |
HALF-BUSHING - Call your local BRP dealership |
| 19 |
506060600 |
U-clamp |
| 20 |
234081410 |
Flat Washer 8 mm This part replaces 224081171. |
| 21 |
517134700 |
Lock Tab |
| 22 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 23 |
572064400 |
Bushing |
| 24 |
572064500 |
BUSHING - Call your local BRP dealership |
| 25 |
517126200 |
Retainer Support |
| 26 |
207182044 |
Hex. Screw M8 X 20 This part replaces 222082065. |
| 27 |
234081410 |
Flat Washer 8 mm This part replaces 224081171. |
| 28 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 29 |
517262000 |
PAINT PLATE - Call your local BRP dealership |
| 30 |
364901600 |
Phillips Screw 8x1/2" |
| 31 |
408200700 |
Grease Fitting |
| 32 |
572066900 |
Steering Cover |
| 33 |
506113800 |
Tie Rod |
| 34 |
506118000 |
Welded Idler Arm |
| 35 |
207006544 |
Hex. Screw M10 X 1.5 X 65 This part replaces 222006565. |
| 36 |
233601416 |
Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 37 |
414530000 |
CUSHION - Call your local BRP dealership |
