Parts Catalog

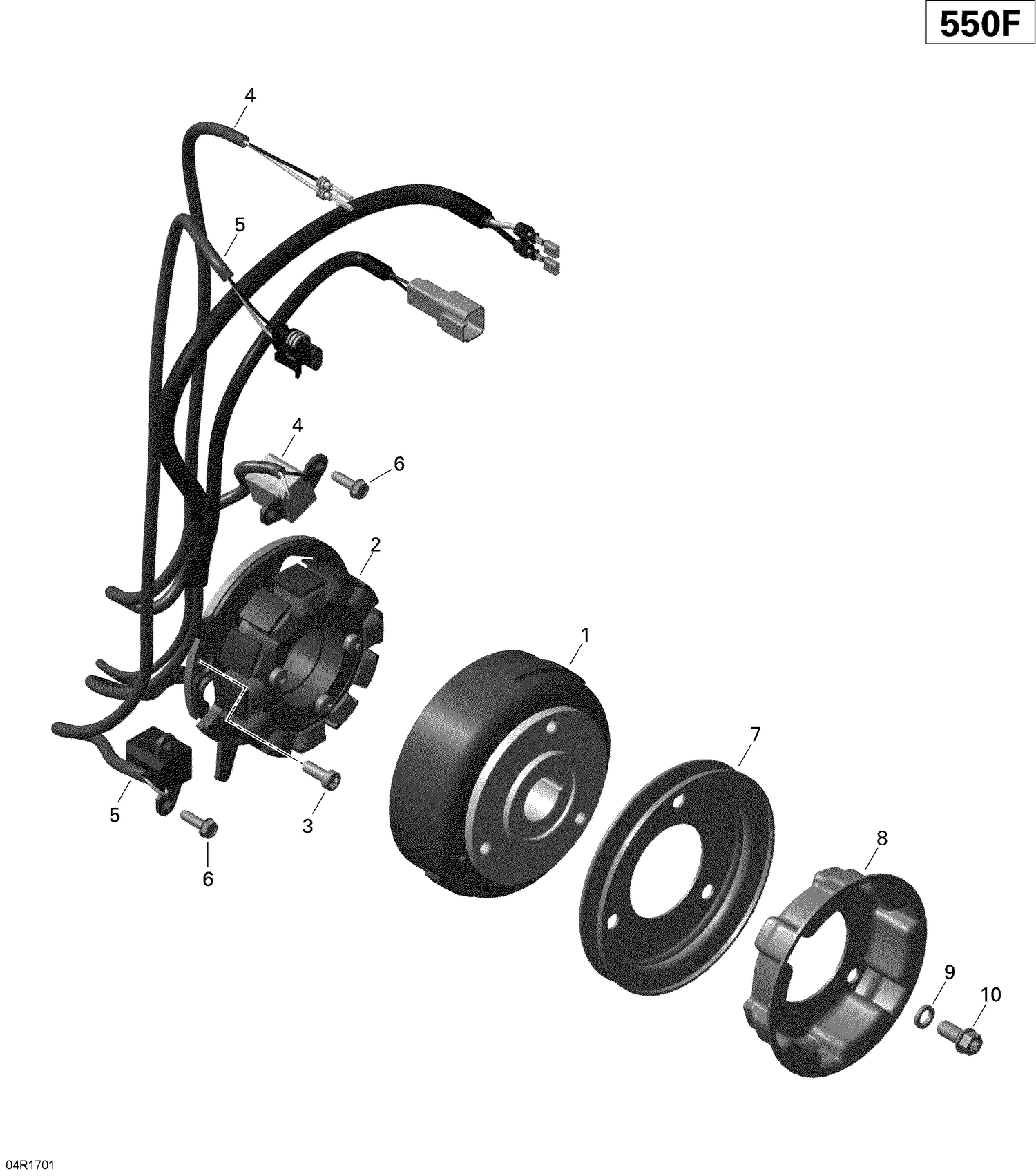

01 - Magneto - 550F

Parts (9)

Ref	Part Number	Description
1	420889376	Flywheel
2	420889367	Stator Plate
3	420641521	Screw
4	420665163	Pick-Up
5	420665161	Pick-Up
6	420941928	Taptite Screw M5 X 16 This part replaces 420941925.
7	420980486	V-Belt Pulley
8	420852414	Rope Sheave
9	420845311	Lock Washer
