Parts Catalog

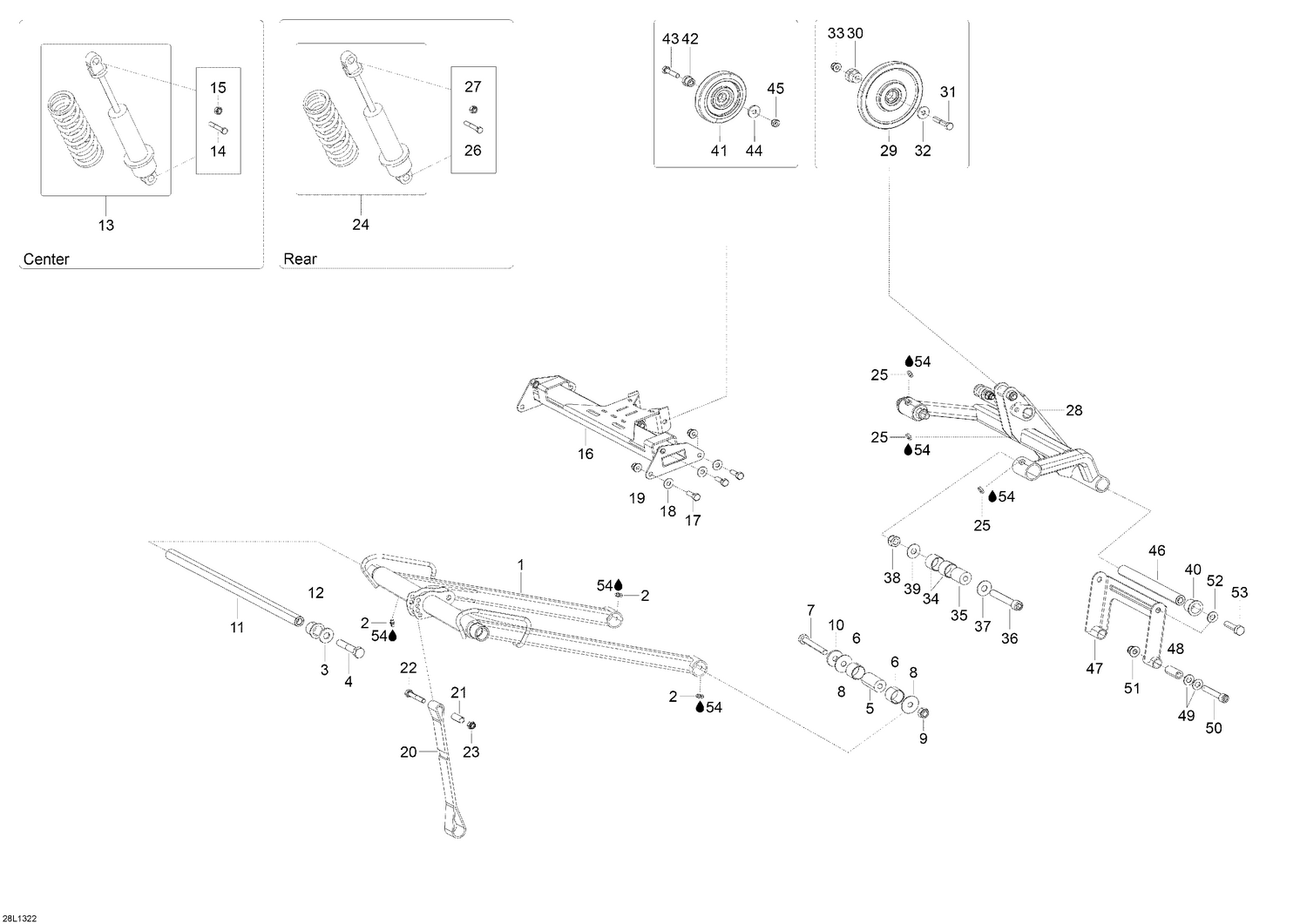

08- Rear Suspension

Parts (53)

Ref	Part Number	Description
1	503192557	Front Arm
2	408200700	Grease Fitting
3	250200131	Washer Spring Conical
4	250000555	Hex. Cap Screw M12 x 60
5	605354157	Shaft
6	31065	Bushing
7	207007044	Hex. Cap Screw M10 x 70
8	605355801	Washer
9	232500416	Elastic Stop Nut M10
10	503183300	Washer
11	503192046	Shaft
12	31024	Cushion
13	503193225	Shock Ass'y, Front Arm
14	207004544	Hex. Screw M10 X 45
15	232500416	Elastic Stop Nut M10
16	503192566	Middle Beam
17	250000556	Hex. Cap Screw M8 x 25
18	503193095	WASHER A8.4X20X1.25 HV140 BLACK ZINC - Call your local BRP dealership
19	233281414	Hex. Flange Elastic Nut M8
20	605355116	Limiter Strap
21	605455335	Sleeve
22	207084544	Hex. Screw M8 X 45
23	232581414	Hex. Elastic Stop Nut M8
24	503193226	Shock Ass'y, Rear Arm
25	408200700	Grease Fitting
26	40134	Screw Socket HD.DIN 912
27	232500416	Elastic Stop Nut M10
28	503192524	Rear Arm
29	503193644	Idler Wheel 133mm
30	605454461	Sleeve
31	207084544	Hex. Screw M8 X 45
32	20077	M8 Washer
33	233281414	Hex. Flange Elastic Nut M8
34	31065	Bushing
35	605354157	Shaft
36	250000560	Socket Head Screw M10 x 65
37	503191926	Washer
38	232500416	Elastic Stop Nut M10
39	605355801	Washer
40	31024	Cushion
41	572043500	Idler Wheel
42	503193330	Sleeve
43	207083544	Hex. Screw M8 X 35
44	20077	M8 Washer
45	232581414	Hex. Elastic Stop Nut M8
46	605355118	Shaft
47	503192571	Rear Swing
48	503192341	Rear Swing Shaft
49	234001410	Flat Washer 10 mm
50	205006044	Socket Head Screw M10 x 60
51	233201414	Hex. Flanged Elastic Nut M10
52	20068	Lock Washer
53	207204044	Hex Cap Screw Din.931 S.grip
