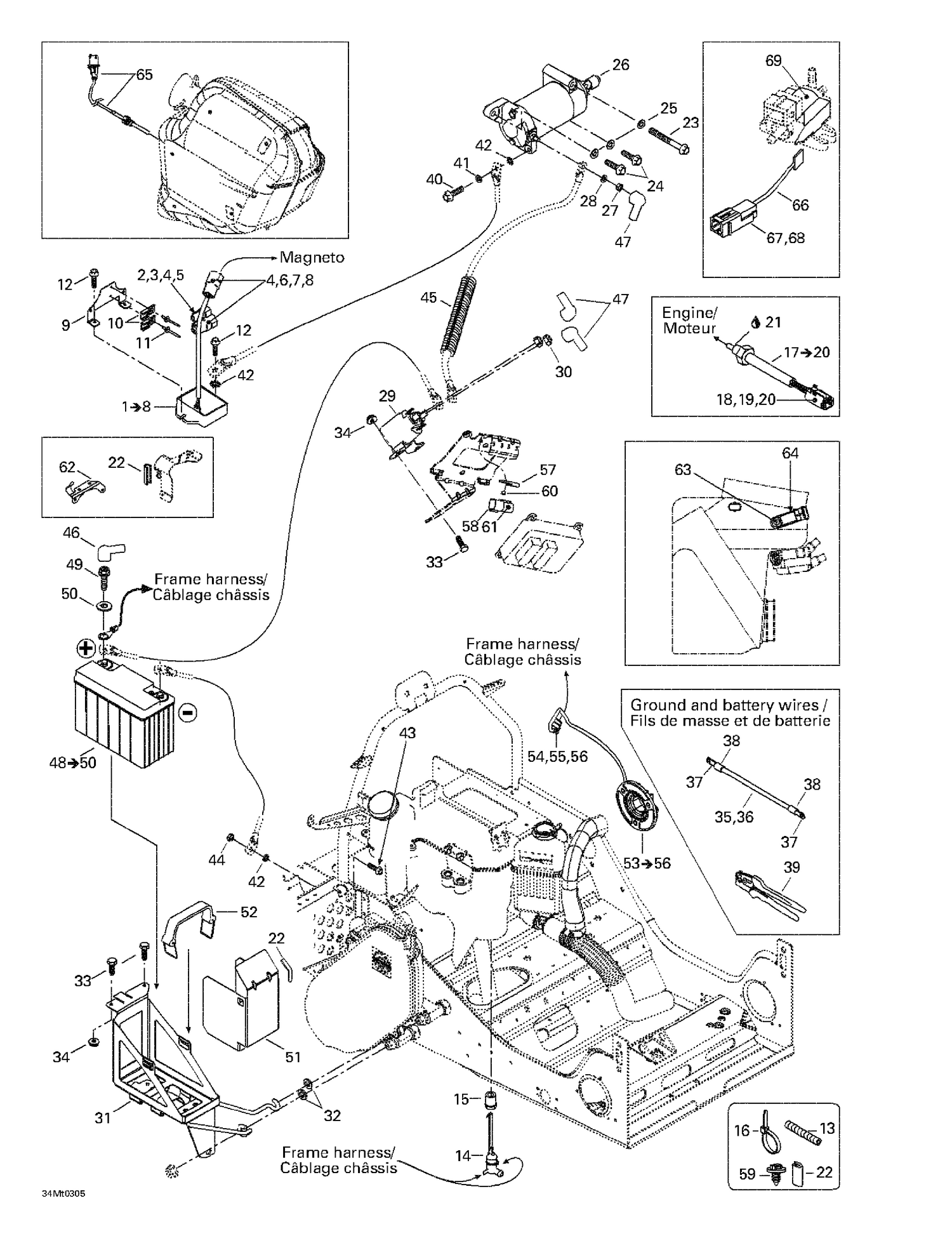

| Ref | Part Number | Description |
|---|
| 2 |
409206900 |
Male Housing, 2 Circuits |
| 3 |
278000631 |
Male Terminal |
| 4 |
293000052 |
Sealing Cap |
| 5 |
409207500 |
Male Lock, 2 Circuits |
| 6 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 7 |
515175568 |
Male Terminal |
| 8 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 9 |
515175923 |
Housing Support |
| 10 |
270000141 |
Clip |
| 11 |
Not |
Available As Spare Part - Pop Rivet 3/16" |
| 12 |
290841543 |
Taptite Screw |
| 13 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 14 |
414681800 |
LEVEL SWITCH - Call your local BRP dealership |
| 15 |
414681900 |
Float |
| 16 |
293750001 |
Tie Wrap 94 mm |
| 18 |
278000739 |
Male Connector, 4 Circuits |
| 19 |
278000632 |
Female Terminal |
| 20 |
278000732 |
Ground Plate |
| 21 |
219704455 |
Was 293800018 Loctite 592, 50 ml |
| 22 |
219704353 |
Was 271000110 Protection Trim |
| 23 |
207587544 |
Hex. Flange Screw M8 X 75, Scotch Grip |
| 24 |
207583044 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 25 |
250200008 |
Flat Washer With Teflon 8 mm |
| 26 |
515176133 |
Electric Starter Ass'y This part replaces 515175843. |
| 27 |
232561414 |
Elastic Stop Nut M6 |
| 28 |
234061410 |
Flat Washer 6 mm |
| 29 |
515176011 |
Starter Relay This part replaces 710000111. |
| 30 |
232561414 |
Elastic Stop Nut M6 |
| 31 |
515175718 |
Battery Support |
| 32 |
503175800 |
Washer |
| 33 |
207151444 |
Hex. Screw M5 X 14 |
| 34 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 35 |
278001680 |
Ground Cable Battery, no 6, meter) |
| 36 |
278001690 |
Cable Battery, no 6, meter) |
| 37 |
278001682 |
Terminal 45°, Small Hole |
| 38 |
219704447 |
Was 710000483 Heat Shrink Tubing |
| 39 |
529035730 |
Crimp Plier |
| 40 |
207361644 |
Hex. Screw M6 X 16, Scotch Grip |
| 41 |
234061410 |
Flat Washer 6 mm |
| 42 |
250200041 |
Lock Washer Serrated M6 This part replaces 250200000. |
| 43 |
207161644 |
Hex. Screw M6 X 16 |
| 44 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 45 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 46 |
570151000 |
Protection Cap |
| 47 |
278001771 |
PROTECTOR CAP - Call your local BRP dealership |
| 49 |
207151260 |
HEX. SCREW M6 X 12 - Call your local BRP dealership |
| 50 |
234061410 |
Flat Washer 6 mm |
| 51 |
515175643 |
DEFLECTOR - Call your local BRP dealership |
| 52 |
515176044 |
Battery Strap This part replaces 515175475. |
| 54 |
515175671 |
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 55 |
515175676 |
Female Lock, 3 Circuits |
| 56 |
278000632 |
Female Terminal |
| 57 |
270000141 |
Clip |
| 58 |
515175668 |
Male Terminal Housing, 6 Circuits |
| 59 |
293730040 |
Mount Dart This part replaces 293730018. |
| 60 |
390402200 |
Pop Rivet 3/16" |
| 61 |
293000052 |
Sealing Cap |
| 62 |
515175254 |
Cable Support |
| 63 |
414745900 |
Tuflock Phillips Plastic Screw |
| 64 |
270600040 |
Pressure Sensor This part replaces 420274055. |
| 65 |
514054641 |
Temperature Sensor This part replaces 515175960. |
| 66 |
515175976 |
Heating Element |
| 67 |
515175654 |
Male Terminal Housing, 2 Circuits |
| 68 |
515175232 |
Male Terminal |
| 219704424 |
Vinyl |
Tubing, Low Temp 3000Mm Long 219704424 |
| 278001685 |
FLAT |
TERMINAL, BIG HOLE - Call your local BRP dealership 278001685 |
| 278001685 |
Terminal |
Plate, Gros Trou - Appelez votre concessionnaire BRP local 278001685 |
| 278001688 |
FLAT |
TERMINAL - Call your local BRP dealership 278001688 |
| 278001688 |
Terminal |
Plat - Appelez votre concessionnaire BRP local 278001688 |
| 293750002 |
Tie |
Wrap 142 mm 293750002 |
| 293750008 |
Tie |
Wrap 368 mm 293750008 |
| 515175314 |
GAINE |
LOW TEMP.VINYL - Call your local BRP dealership 515175314 |
