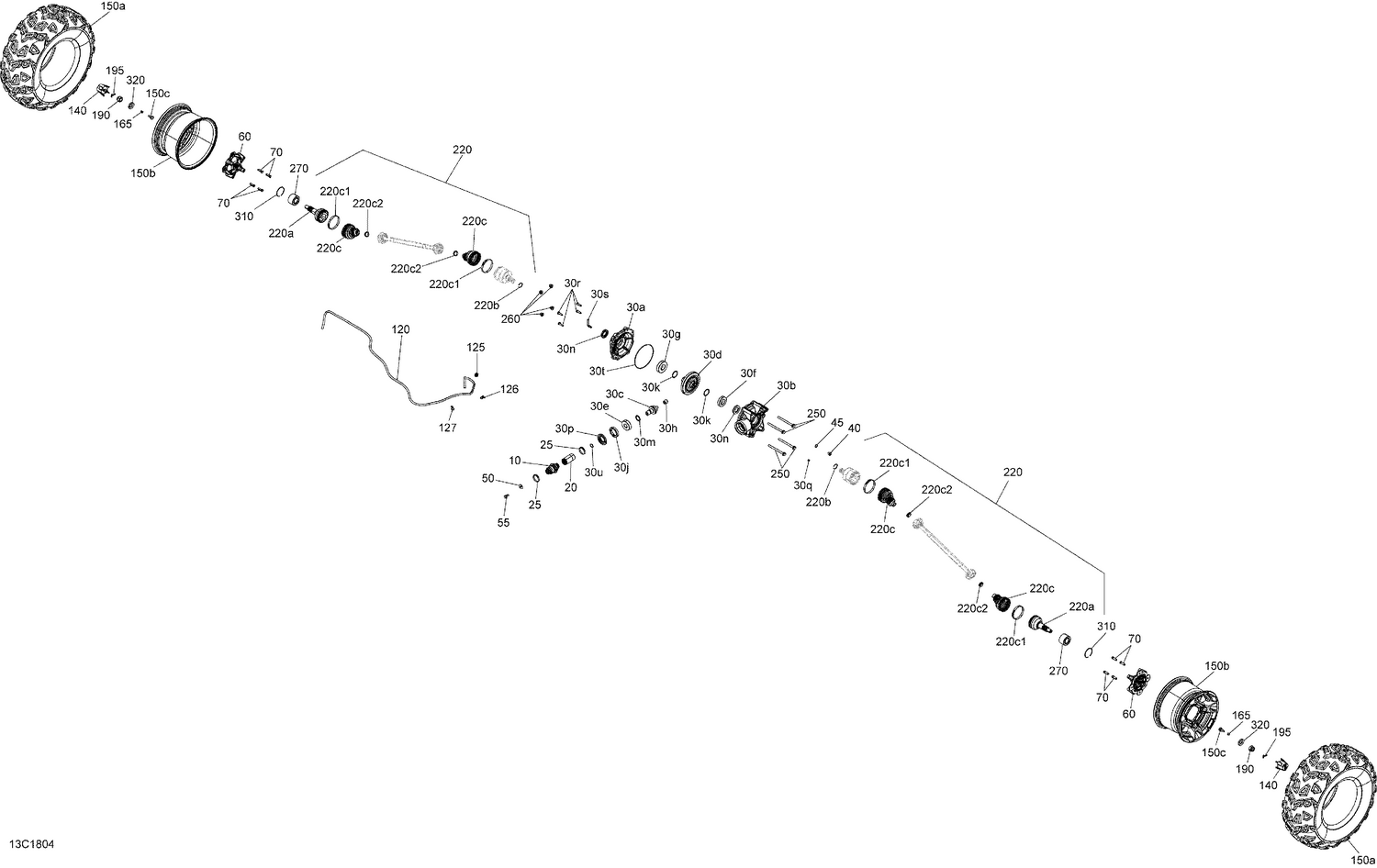

08- Rear Drive Defender HD5
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 705401950 | Drive Axle Ass'y |
| 20 | 705401969 | Coupling Sleeve |
| 25 | 293650138 | Oetiker Gear Clamp 44.0MM |
| 30a | 705502051 | REAR COVER - Call your local BRP dealership |
| 30b | 705502052 | Rear Pinion Cover |
| 30c | 705502053 | Pinion 10 Teeth |
| 30d | 705502682 | Gear 36 Teeth This part replaces 705502054. |
| 30e | 705502055 | Ball Bearing |
| 30f | 705502737 | Ball Bearing This part replaces 705502056. |
| 30g | 705502738 | Ball Bearing This part replaces 705502057. |
| 30h | 705502058 | Needle Bearing |
| 30j | 705502059 | Nut |
| 30k | 705502060 | Differential Shim 0.02 mm |
| 30m | 705502061 | Pinion Gear Shim 1.67 mm |
| 30n | 705501556 | Oil Seal |
| 30p | 705502062 | Oil Seal |
| 30q | 705501724 | Plug Drain |
| 30r | 705502063 | Screw |
| 30s | 705501584 | Breather Tube |
| 30t | 705502064 | Seal |
| 30u | 705502065 | O-Ring |
| 30v | 250001044 | Hex. Flange Screw M10 X 16 S.GRIP This part replaces 250000615. |
| 30w | 250200014 | Flat Washer M10 |
| 40 | 705500504 | Fill Level Plug |
| 45 | 705500506 | Copper Washer |
| 50 | 250200014 | Flat Washer M10 |
| 55 | 250001046 | Hex Flange Screw M10 X 20 S.Grip This part replaces 250000847. |
| 60 | 705502338 | Wheel Hub |
| 70 | 250300055 | Wheel Stud M10 X 1.25 |
| 120 | 219704410 | Polyurethane Hose 10000Mm Long |
| 125 | 293750063 | Clip Tie-Rap |
| 126 | 710003168 | Dart Tie Rap 200MM |
| 127 | 414115200 | Tie-Rap 180 mm |
| 165 | 293000110 | Valve Cap |
| 190 | 250100193 | Castle Nut M20 |
| 195 | 250400084 | Cotter Pin |
| 220a | 715900429 | JOINT_CV EXT - Call your local BRP dealership |
| 220b | 705501781 | Circlip |
| 220c | 705501864 | Boot Kit |
| 220c1 | 715900241 | Oetiker Clamp, 82.1 mm |
| 220c2 | 715900242 | Oetiker Clamp, 27.3 mm |
| 250 | 230602546 | Hex. Flange Screw M10 X 125 |
| 260 | 233201436 | Hex. Flange Elastic Nut M10 |
| 270 | 293350150 | Ball Bearing This part replaces 293350118. |
| 310 | 293370019 | Circlip |
