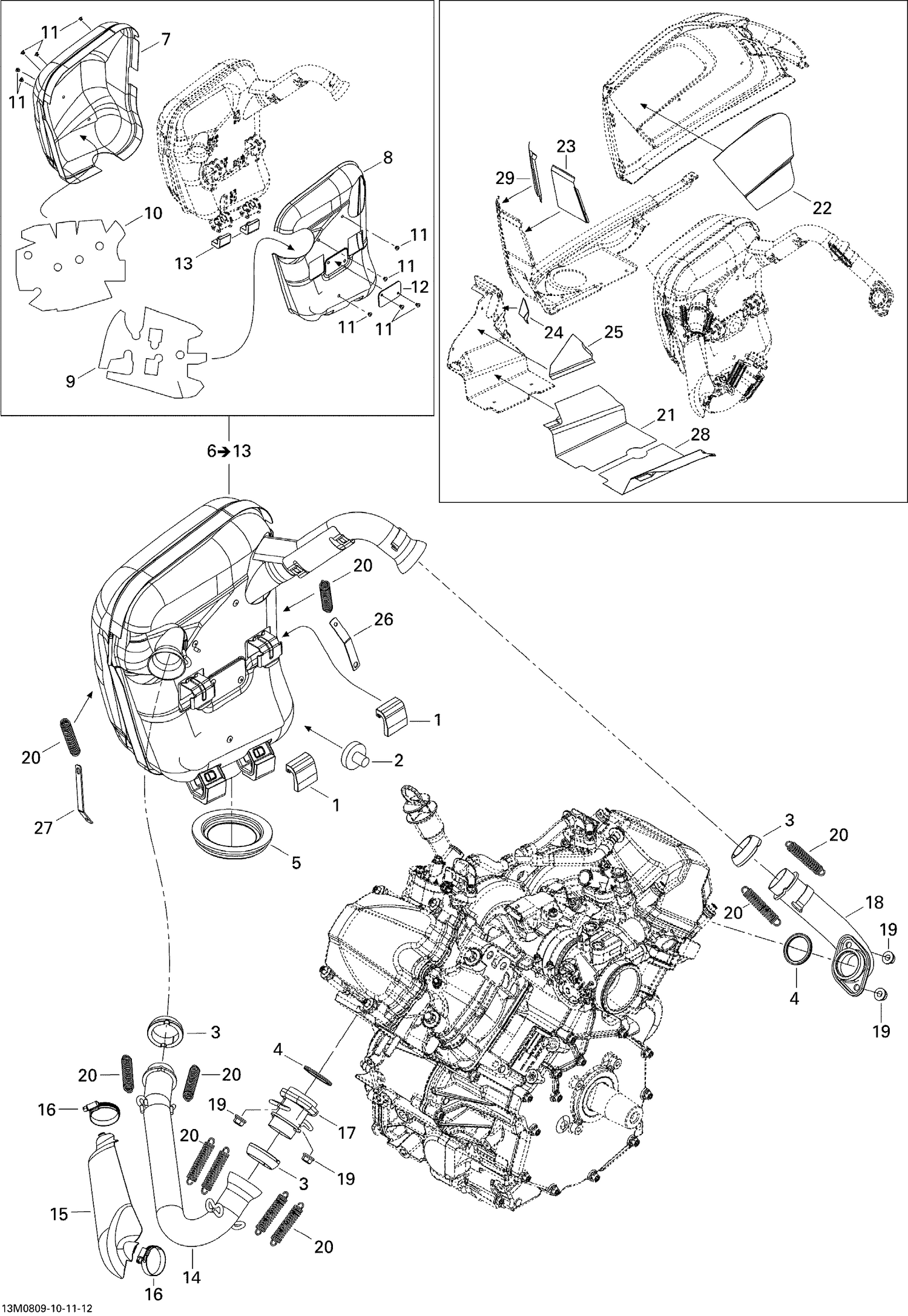

| Ref | Part Number | Description |
|---|
| 1 |
514053372 |
UPPER STOPPER - Call your local BRP dealership |
| 2 |
514053654 |
Rubber Bumper |
| 3 |
514054127 |
EXHAUST GASKET - Call your local BRP dealership |
| 4 |
707600317 |
Gasket |
| 5 |
514054240 |
EXHAUST GROMMET - Call your local BRP dealership |
| 7 |
514053100 |
RH HEAT SHIELD - Call your local BRP dealership |
| 8 |
514054096 |
LH HEAT SHIELD - Call your local BRP dealership |
| 9 |
514054170 |
LH ISOLATING WOOL - Call your local BRP dealership |
| 10 |
514053103 |
RH ISOLATING WOOL - Call your local BRP dealership |
| 11 |
390910000 |
Pop Rivet 3/16” |
| 12 |
514053429 |
Reinforcement |
| 13 |
514054223 |
LOWER STOPPER - Call your local BRP dealership |
| 14 |
514054135 |
Welded Pipe |
| 15 |
514054225 |
Heat Deflector |
| 16 |
293650098 |
Norma Gear Clamp |
| 17 |
514054088 |
WELDED FRONT PIPE - Call your local BRP dealership |
| 18 |
514054093 |
WELDED REAR PIPE - Call your local BRP dealership |
| 19 |
233081416 |
Hex. Flange Nut M8 |
| 20 |
415107100 |
Spring |
| 21 |
514054245 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 22 |
514054083 |
FEFLECTIVE SHEET - Call your local BRP dealership |
| 23 |
514054267 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 24 |
514054268 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 25 |
514054266 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 26 |
514053725 |
SPRING BRACKET - Call your local BRP dealership |
| 27 |
514053393 |
Spring Bracket |
| 28 |
514054133 |
REFLECTIVE SHEET - Call your local BRP dealership |
