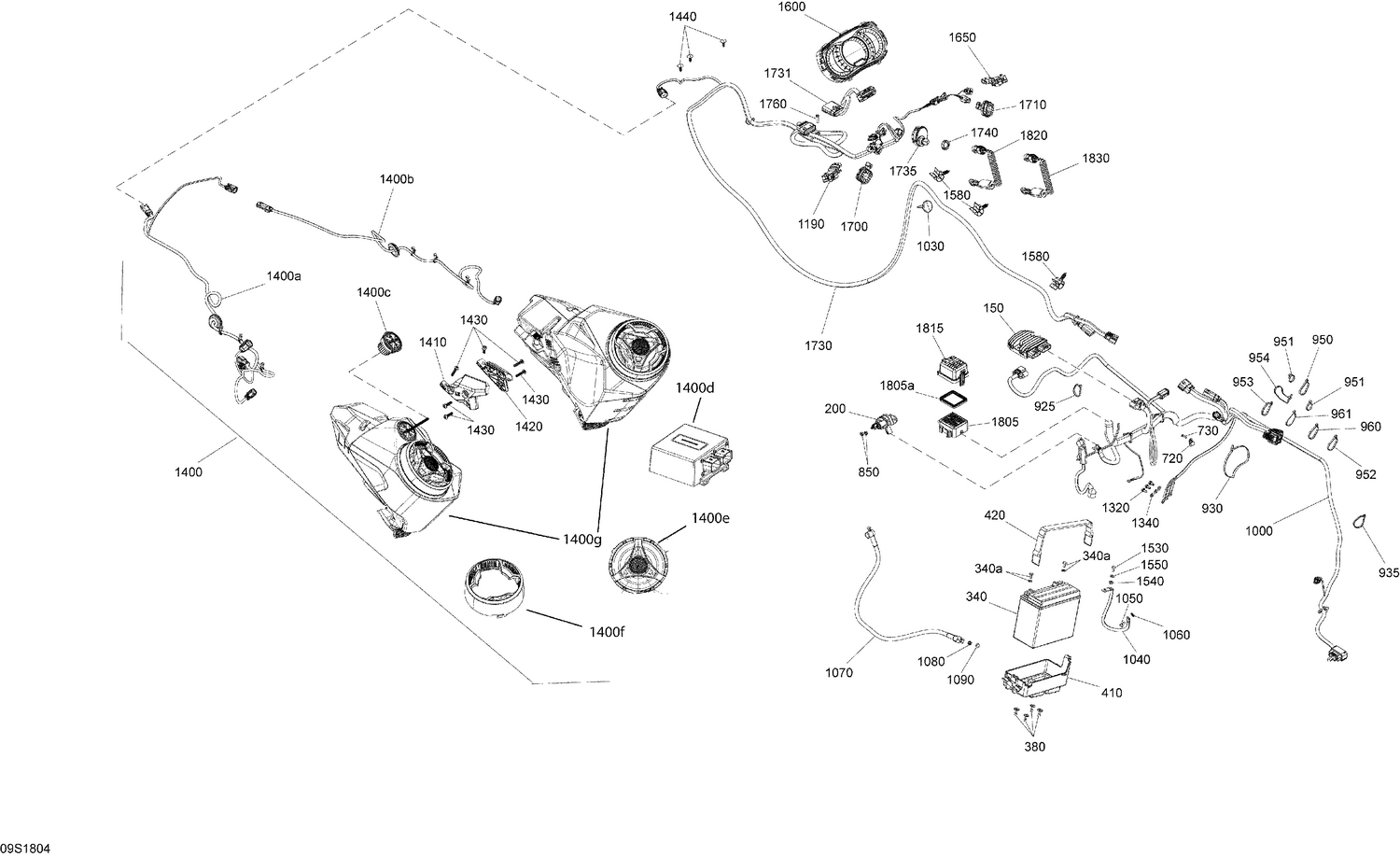

10- Electrical System RXT Engine 1630 HO ACE - Package X
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 150 | 710001103 | Voltage Regulator |
| 200 | 278003012 | Starter Relay |
| 340a | 250000282 | Battery Bolt Kit |
| 380 | 293150123 | Pop Rivet 3/16" |
| 410 | 278003473 | Battery Support |
| 420 | 293850095 | Fuel Tank Strap |
| 720 | 293650257 | Hose Clamp |
| 730 | 250000287 | Flange Torx Screw K40 X 16 |
| 850 | 232561200 | Brass Elastic Stop Nut M6 |
| 925 | 414115200 | Tie-Rap 180 mm |
| 935 | 293750047 | Tie Rap, 533 mm |
| 950 | 414115200 | Tie-Rap 180 mm |
| 951 | 414115200 | Tie-Rap 180 mm |
| 952 | 414115200 | Tie-Rap 180 mm |
| 953 | 414115200 | Tie-Rap 180 mm |
| 954 | 414115200 | Tie-Rap 180 mm |
| 960 | 414115200 | Tie-Rap 180 mm |
| 961 | 414115200 | Tie-Rap 180 mm |
| 1000 | 278003436 | Wiring Harness |
| 1030 | 269502324 | USB Plug |
| 1040 | 278003451 | Ground Battery Cable |
| 1050 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 1060 | 234061600 | Stainless Flat Washer M6 |
| 1070 | 278003369 | Starter Cable |
| 1080 | 232561200 | Brass Elastic Stop Nut M6 |
| 1090 | 234061600 | Stainless Flat Washer M6 |
| 1190 | 278002284 | LH Throttle Sensor |
| 1320 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 1340 | 234061600 | Stainless Flat Washer M6 |
| 1400a | 278003497 | Amplifier Harness |
| 1400b | 278003462 | Speaker Harness |
| 1400c | 278003465 | Audio Control |
| 1400d | 278003464 | Amplifier |
| 1400e | 278003463 | Speaker |
| 1400f | 278003466 | Speaker Grille |
| 1400g | 278003735 | LH Speaker Enclosure Ass'y This part replaces 278003663. |
| 1400g | 278003736 | RH Speaker Enclosure Ass'y This part replaces 278003664. |
| 1410 | 278003489 | LH Bracket |
| 1420 | 278003518 | RH Bracket |
| 1430 | 250001007 | Screw Torx M6.81 X 30 This part replaces 250000709. |
| 1440 | 293730011 | Black, Dart |
| 1530 | 207361260 | Hex. Screw M6 X 12, Scotch Grip |
| 1540 | 232561200 | Brass Elastic Stop Nut M6 |
| 1550 | 234061600 | Stainless Flat Washer M6 |
| 1580 | 278003564 | Retainer |
| 1650 | 278002283 | Throttle Position Sensor |
| 1700 | 278003476 | Switch |
| 1710 | 278003604 | Switch |
| 1730 | 278003634 | Steering Harness Ass'Y |
| 1731 | 278003636 | Wiring Harness Extension |
| 1735 | 515178840 | Terminal Dess One-Wire This part replaces 515178225. |
| 1740 | 278002963 | Safety Nut (DESS Switch) |
| 1760 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 1805a | 278003450 | Seal |
| 1815 | 278003879 | Fuse Cover This part replaces 278003469. |
| 1820 | 278003400 | Safety Lanyard Ass'y, RFID |
