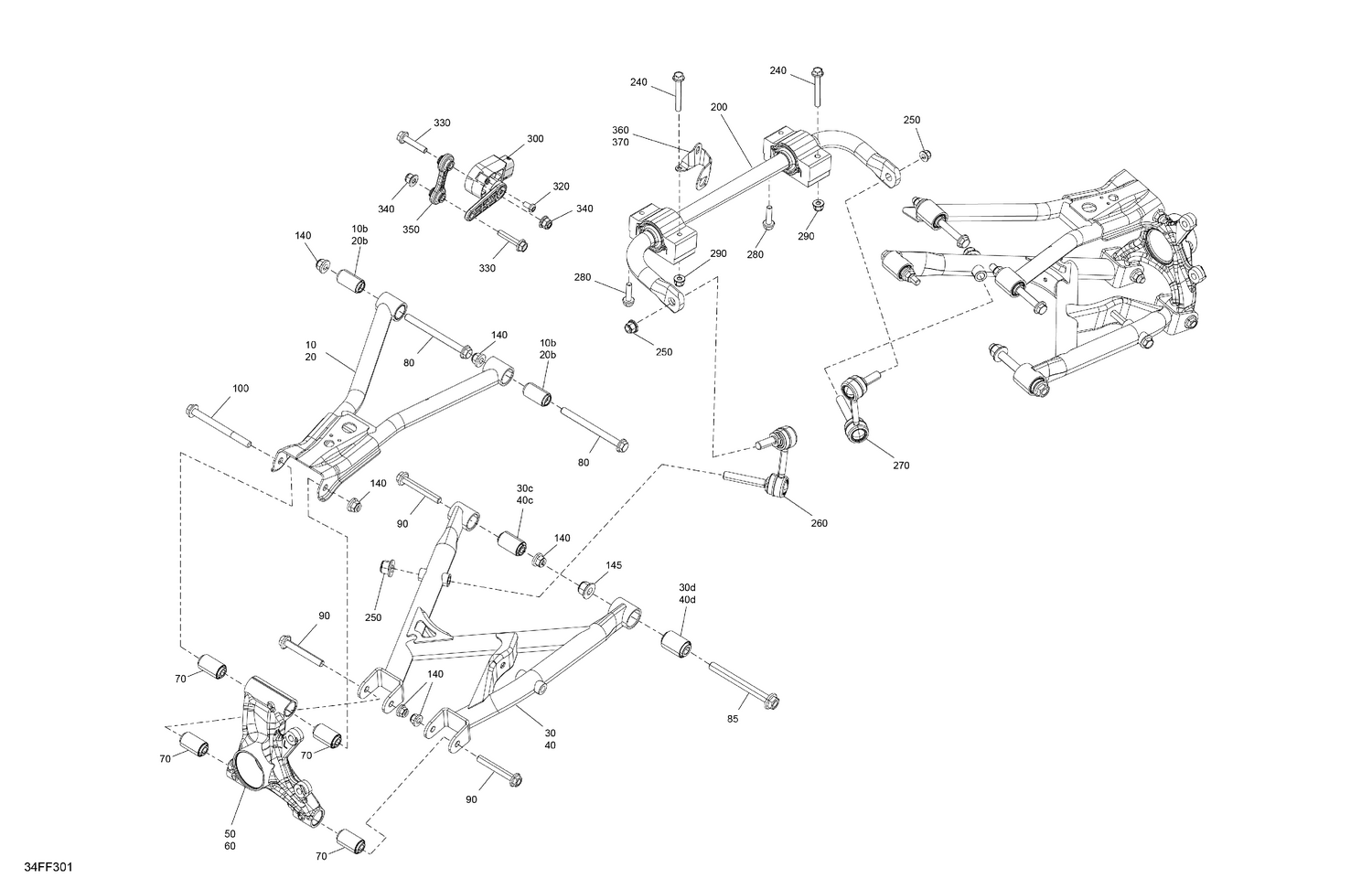

05- Suspension - Rear Components
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 706004511 | Suspension Arm Bushing |
| 20b | 706004511 | Suspension Arm Bushing |
| 30c | 706004511 | Suspension Arm Bushing |
| 30d | 706005631 | Suspension Arm Bushing |
| 40c | 706004511 | Suspension Arm Bushing |
| 40d | 706005631 | Suspension Arm Bushing |
| 50 | 706004297 | LH Rear Knuckle |
| 60 | 706004298 | RH Rear Knuckle |
| 70 | 706004511 | Suspension Arm Bushing |
| 80 | 230601546 | Hex. Flange Screw Din.6921 |
| 85 | 250000860 | Screw Flange M12 X 115 |
| 90 | 207607046 | Hex. Flange Screw M10 X 70 |
| 100 | 230601046 | Hex Flange Screw DIN.6921 |
| 140 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 145 | 233221416 | Elastic Flange Nut M12 |
| 200 | 706005303 | Stabilizer Bar Ass'y |
| 240 | 207686044 | Hex. Flange Screw M8 x 60 |
| 250 | 233221416 | Elastic Flange Nut M12 |
| 260 | 706205989 | LH Rear Stabilizer Bar Link |
| 270 | 706205990 | RH Rear Stabilizer Bar Link |
| 280 | 250001073 | Hex. Flange Screw M8 X 30 Scotch Grip |
| 290 | 233281414 | Hex. Flange Elastic Nut M8 |
| 300 | 706206376 | Suspension Position Sensor |
| 320 | 205951046 | Socket Head Screw M5 X 10 |
| 330 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 340 | 233261466 | Hex. Flange Elastic Nut M6 |
| 350 | 706005959 | Ball Joint |
| 360 | 706206138 | LH Chassis Reinforcement Kit |
