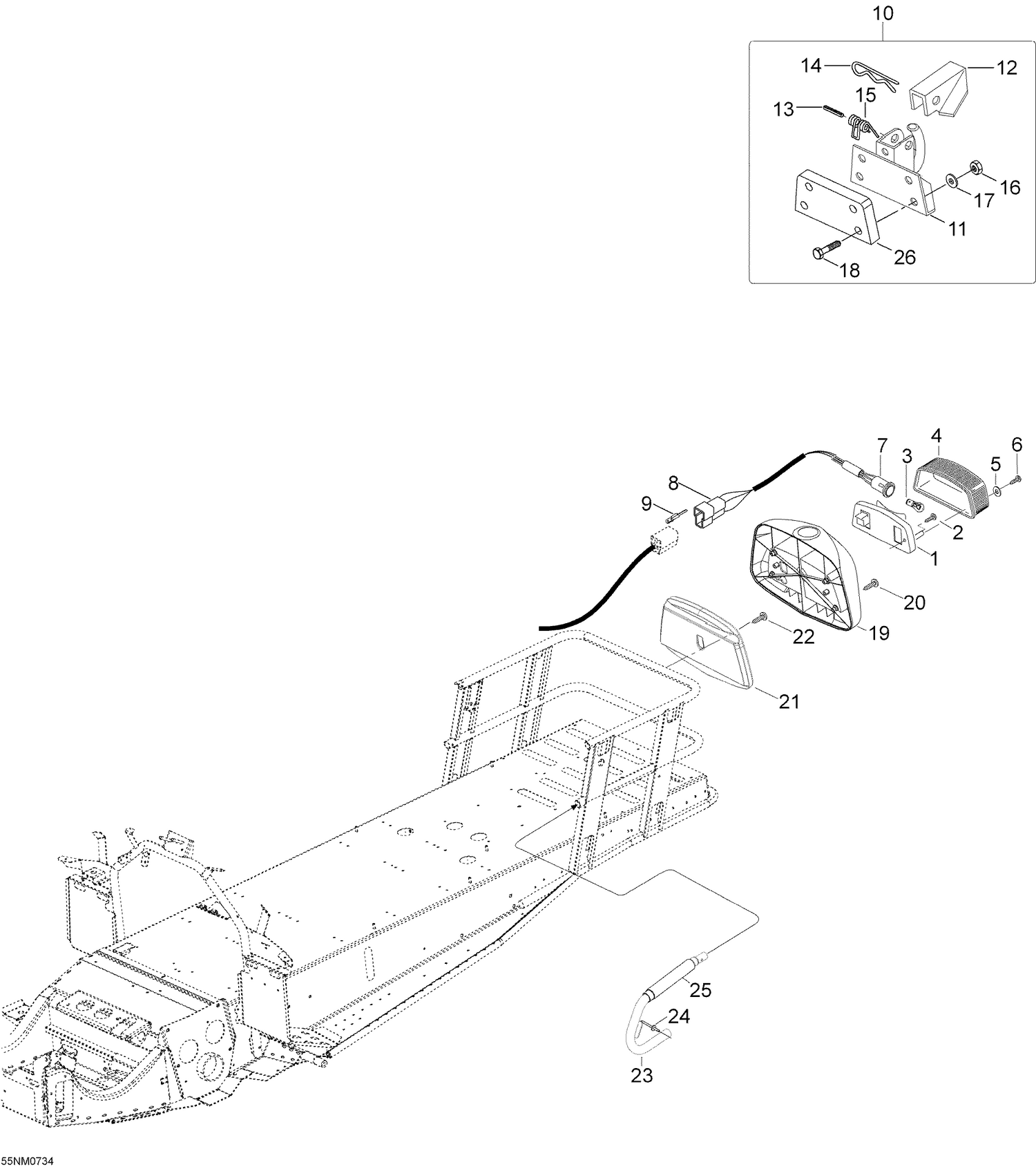

| Ref | Part Number | Description |
|---|
| 1 |
515175397 |
LAMP HOUSING - Call your local BRP dealership |
| 2 |
40207 |
Plate Screw Zn 4.8x45 DIN 7981(1=10pcs) - Call your local BRP dealership |
| 3 |
520000758 |
Bulb This part replaces 410504000. |
| 4 |
414513700 |
Lens |
| 5 |
414516400 |
Washer - Call your local BRP dealership |
| 6 |
209632540 |
Phillips Tapping Screw M3.9 X 25 This part replaces 414516300. |
| 7 |
515175852 |
Bulp holder + cabel |
| 8 |
42606 |
Female terminal housing (3-circuits) |
| 9 |
605642629 |
Connector AMP 926882-3 - Call your local BRP dealership This part replaces 42614. |
| 11 |
5344156 |
HITCH ASS'Y - Call your local BRP dealership This part replaces 5344208. |
| 12 |
5440767 |
Lock |
| 13 |
41012 |
Pin |
| 14 |
41029 |
Hair pin |
| 15 |
545693 |
SPRING - Call your local BRP dealership |
| 16 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 17 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 18 |
40009 |
Screw M8 x 50 |
| 19 |
605251392 |
MOLD TAIL LAMP - Call your local BRP dealership |
| 20 |
40206 |
Plate Screw Zn 4.8x25 DIN 7981(1=10pcs) - Call your local BRP dealership |
| 21 |
605251963 |
BASE - Call your local BRP dealership |
| 22 |
40322 |
SELF TAPPING SCREW M6 X 16 - Call your local BRP dealership |
| 23 |
605251810 |
RH GRIP - Call your local BRP dealership |
| 23 |
605251811 |
LH GRIP - Call your local BRP dealership |
| 24 |
36083 |
Rivet |
| 25 |
415050300 |
Grip |
