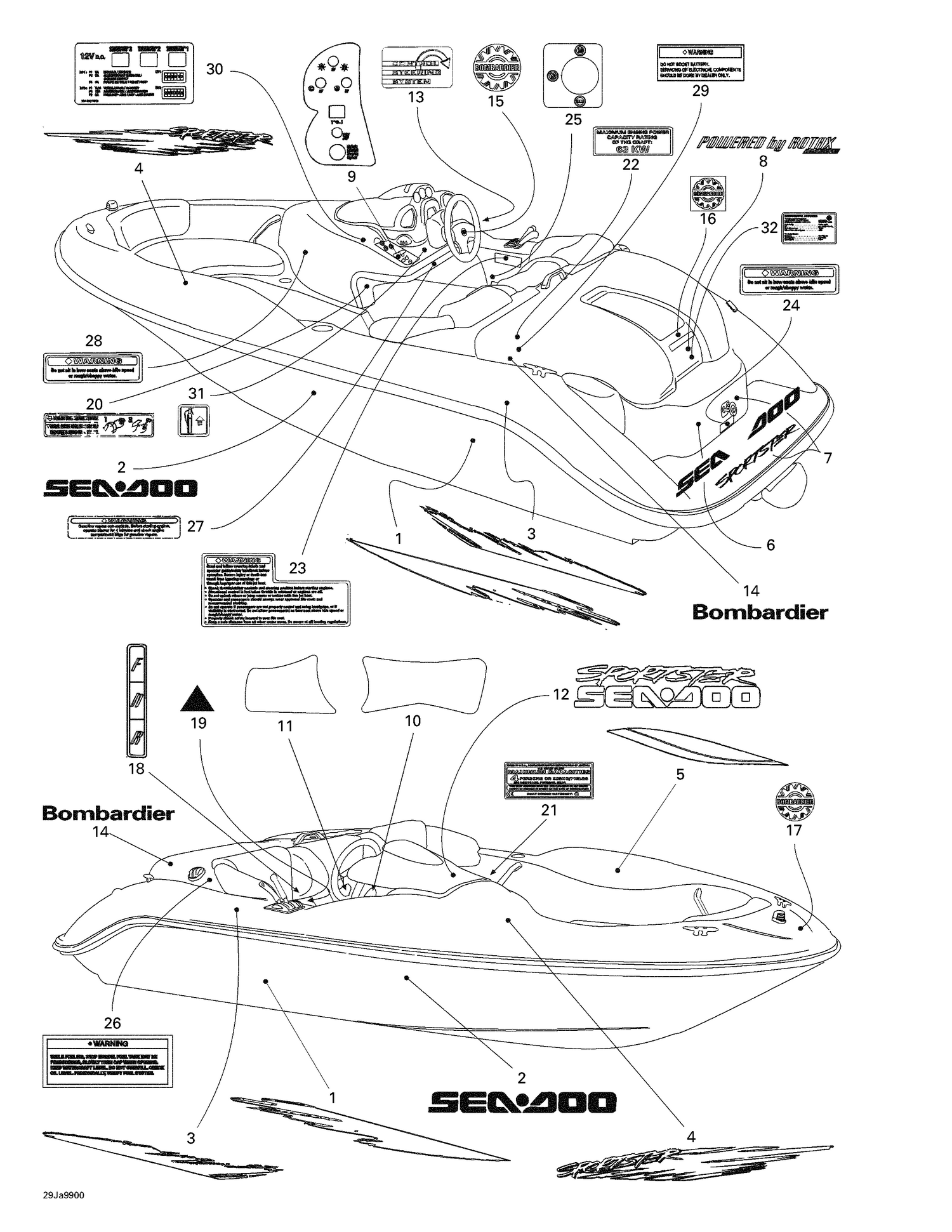

09- Decals
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 204900168 | RH Hull Decal |
| 2 | 204900170 | Decal <<Sea-Doo>> |
| 3 | 204900172 | RH Back Side Decal |
| 4 | 204900174 | RH Front Side Decal |
| 5 | 204900176 | Inner Decal |
| 6 | 204900177 | Decal <<Sea>> |
| 7 | 204900178 | Decal <<Doo/Sportster>> |
| 8 | 204900041 | Decal ROTAX POWER |
| 9 | 204900179 | Dash Decal |
| 10 | 204900180 | Cup Trim Decal (Front) |
| 11 | 204900181 | Cup Trim Decal (Back) |
| 12 | 204900182 | Logo <<Sportster>> |
| 13 | 204900243 | Low Speed Control Decal |
| 14 | 204900038 | Decal <<Bombardier>> |
| 15 | 516008738 | BRP Logo 48mm This part replaces 516000282. |
| 16 | 219901180 | Bombardier Logo, Rear |
| 17 | 204900435 | Bombardier Logo |
| 18 | 204900136 | DECAL, SHIFTER - Call your local BRP dealership |
| 19 | 204900138 | POINTER, SHIFTER - Call your local BRP dealership |
| 20 | 204900184 | Decal Weedless |
| 21 | 204900265 | Label - Warning (CE) |
| 22 | 204900273 | Power Capacity Label |
| 23 | 204900160 | Navigation Warning Decal |
| 24 | 204900226 | Warning Label |
| 25 | 219900504 | Decal - Valve Fuel |
| 26 | 204900224 | Label <<Fuel>> |
| 27 | 204900162 | Label - Warning, Gas Blower |
| 28 | 204900229 | Warning Label |
| 29 | 219900270 | Warning Decal, Battery |
| 30 | 204900187 | Decal - block Fuse (Not shown) |
| 31 | 204900359 | Extinguisher Decal |
| 204900169 | LH | Hull Decal 204900169 |
| 204900173 | LH | Back Side Decal 204900173 |
| 204900175 | LH | Front Side Decal 204900175 |
