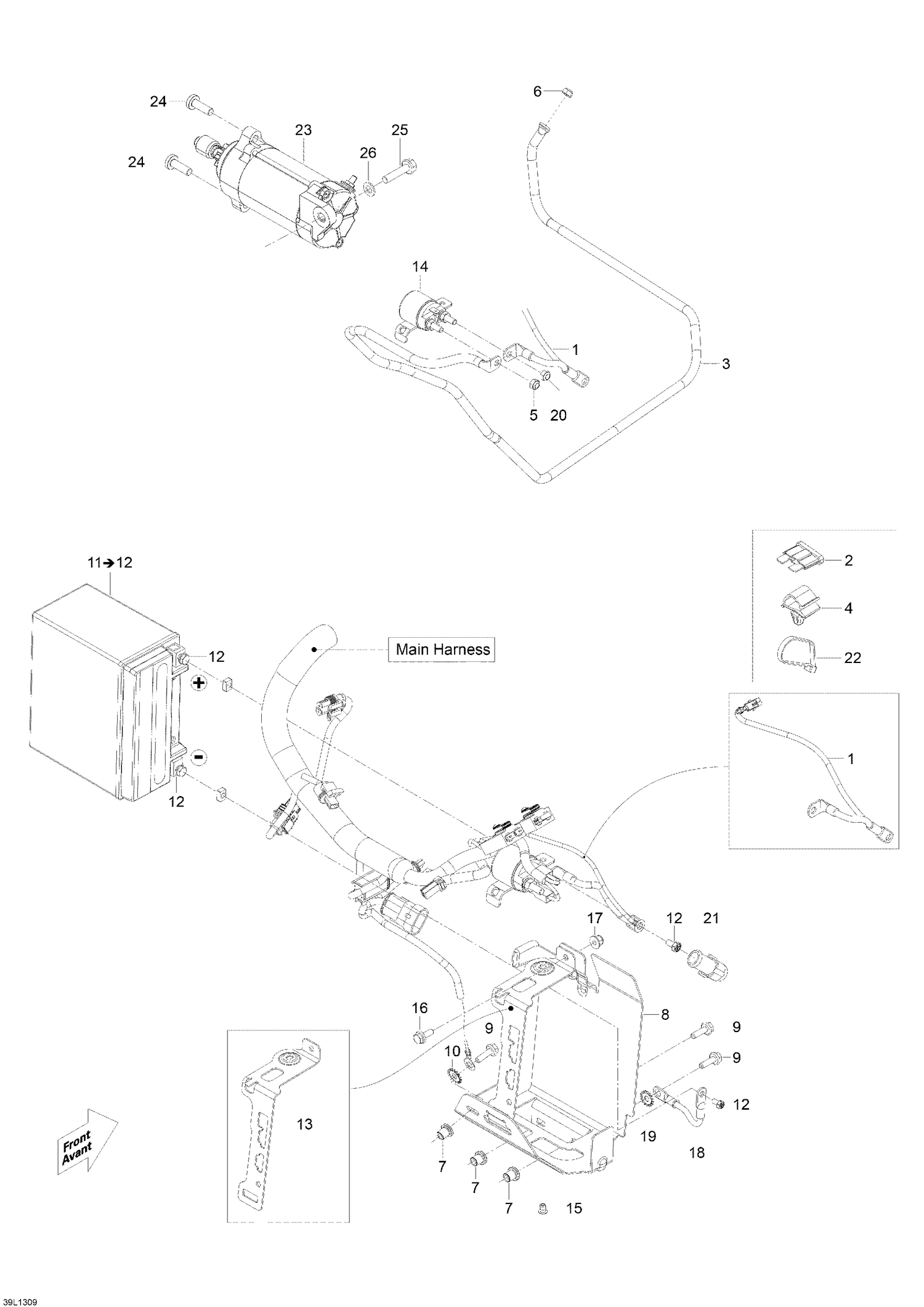

10- Battery And Starter
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 515177200 | BATTERY FUSE WIRE - Call your local BRP dealership |
| 2 | 410917200 | Fuse, 30A |
| 3 | 515175905 | BATTERY WIRE - Call your local BRP dealership |
| 4 | 515176795 | Tie Rap Mount (Screwable) |
| 5 | 232561434 | Elastic Stop Nut M6 |
| 6 | 232561434 | Elastic Stop Nut M6 |
| 7 | 293450275 | Insert |
| 8 | 515176886 | BATTERY SUPPORT ASS'Y - Call your local BRP dealership |
| 9 | 207662044 | Hex. Flange Screw M6 X 20 |
| 10 | 250200041 | Lock Washer Serrated M6 |
| 12 | 250000282 | Battery Bolt Kit This part replaces 295500849. |
| 13 | 515177008 | BATTERY STRIP - Call your local BRP dealership |
| 14 | 515176501 | Starter Relay |
| 15 | 390402200 | Pop Rivet 3/16 |
| 16 | 207661644 | Hex. Flange Screw M6 X 16 |
| 17 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 18 | 515176358 | Ground Wire |
| 19 | 250200041 | Lock Washer Serrated M6 |
| 20 | 232561434 | Elastic Stop Nut M6 |
| 21 | 710000495 | Protector Cap |
| 22 | 293750001 | Tie-Rap 94 mm |
| 22 | 293750008 | Tie-Rap 368 mm |
| 22 | 414115200 | Tie-Rap 180 mm |
| 22 | 605627000 | Tie Rap |
| 23 | 515178473 | Starter This part replaces 515177389. |
| 24 | 250000752 | Pan HD Torx Screw M8 x 25 This part replaces 250000248. |
| 25 | 207583544 | Hex Flange Screw M8 X 35, Scotch Grip |
