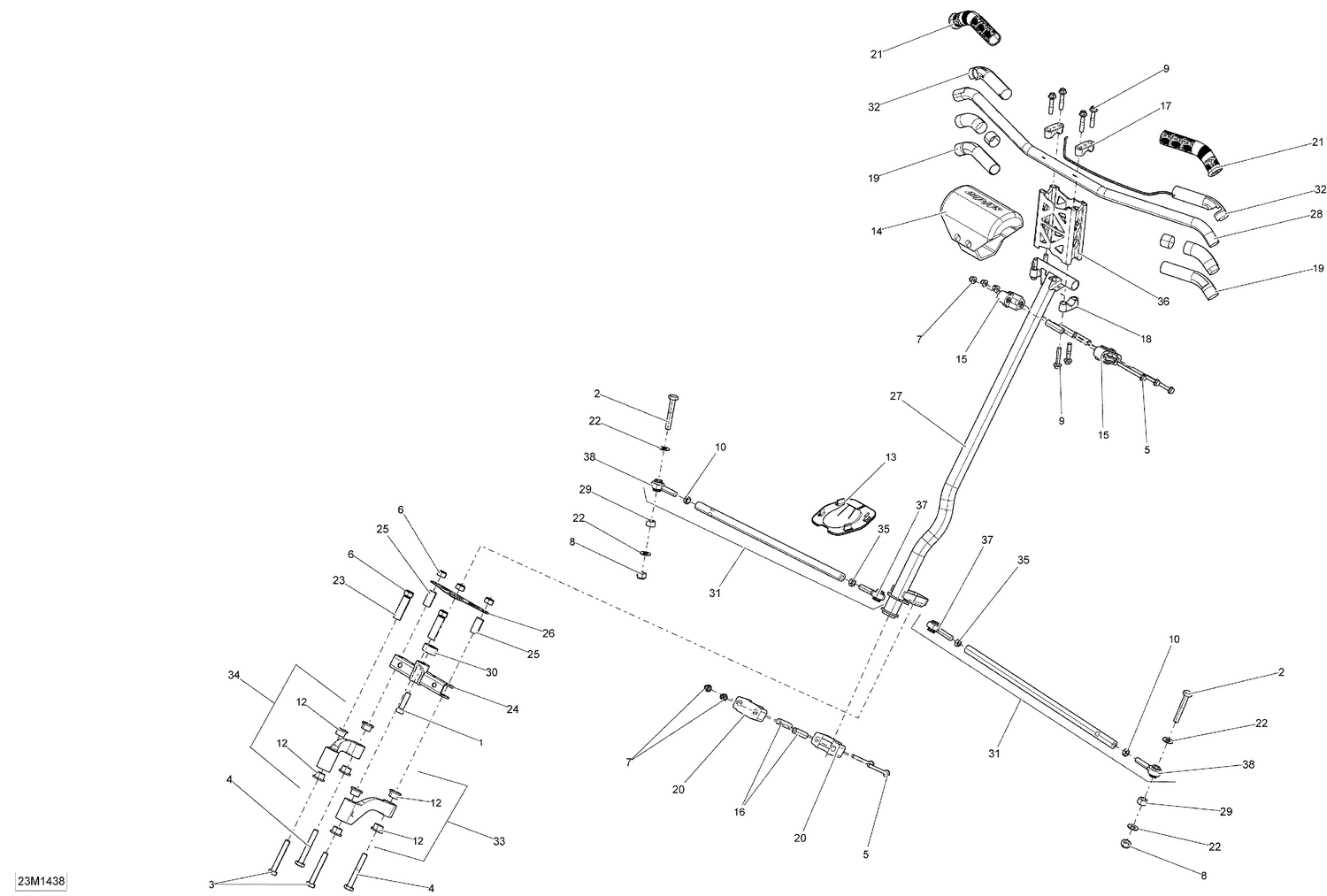

| Ref | Part Number | Description |
|---|
| 1 |
205003544 |
Socket Screw M10 X 35 |
| 2 |
207006544 |
Hex. Screw M10 X 1.5 X 65 |
| 3 |
207007044 |
Hex. Screw M10 X 70 |
| 4 |
207007544 |
Hex. Screw M10 x 75 |
| 5 |
207667056 |
Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 6 |
232500416 |
Elastic Stop Nut M10 |
| 7 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 8 |
233601466 |
Elastic Locking Nut M10 |
| 9 |
250000352 |
Hex. Flange Screw M8 X 40 |
| 10 |
250100016 |
LH Threaded Hex. Jam Nut M10 |
| 12 |
505072690 |
Leg Bushing |
| 13 |
506152163 |
Plate |
| 14 |
506152522 |
STEERING PAD - Call your local BRP dealership |
| 15 |
506152293 |
Half-Housing |
| 16 |
506152297 |
Housing Bushing |
| 17 |
506152751 |
Steering Support This part replaces 506152395. |
| 18 |
506152751 |
Steering Support This part replaces 506152395. |
| 19 |
506153176 |
Thermal Insulation This part replaces 506152548. |
| 20 |
506152549 |
LOWER HALF-HOUSING - Call your local BRP dealership |
| 21 |
506152560 |
Grip 148mm |
| 22 |
506152582 |
Washer |
| 23 |
506152691 |
SWIVEL PIVOT - Call your local BRP dealership |
| 24 |
506152693 |
WELDED SWIVEL BAR - Call your local BRP dealership |
| 25 |
506152696 |
SWIVEL PIVOT - Call your local BRP dealership |
| 26 |
506152697 |
PLATE - Call your local BRP dealership |
| 27 |
506152965 |
TUBE-MAIN PAINT - Call your local BRP dealership This part replaces 506152699. |
| 28 |
506152712 |
FULL MOON HAND BAR - Call your local BRP dealership |
| 29 |
506152713 |
Washer |
| 30 |
506152714 |
BEARING - Call your local BRP dealership |
| 31 |
506152715 |
ROD ASS'Y - Call your local BRP dealership |
| 32 |
506152674 |
Heating Element 20 WATT |
| 33 |
506152719 |
LH SWIVEL ARM ASS'Y - Call your local BRP dealership |
| 34 |
506152720 |
RH SWIVEL ARM ASS'Y - Call your local BRP dealership |
| 35 |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 36 |
506152616 |
Black Handlebar Extension (130mm) |
| 37 |
506152081 |
LH Thread Ball Joint |
