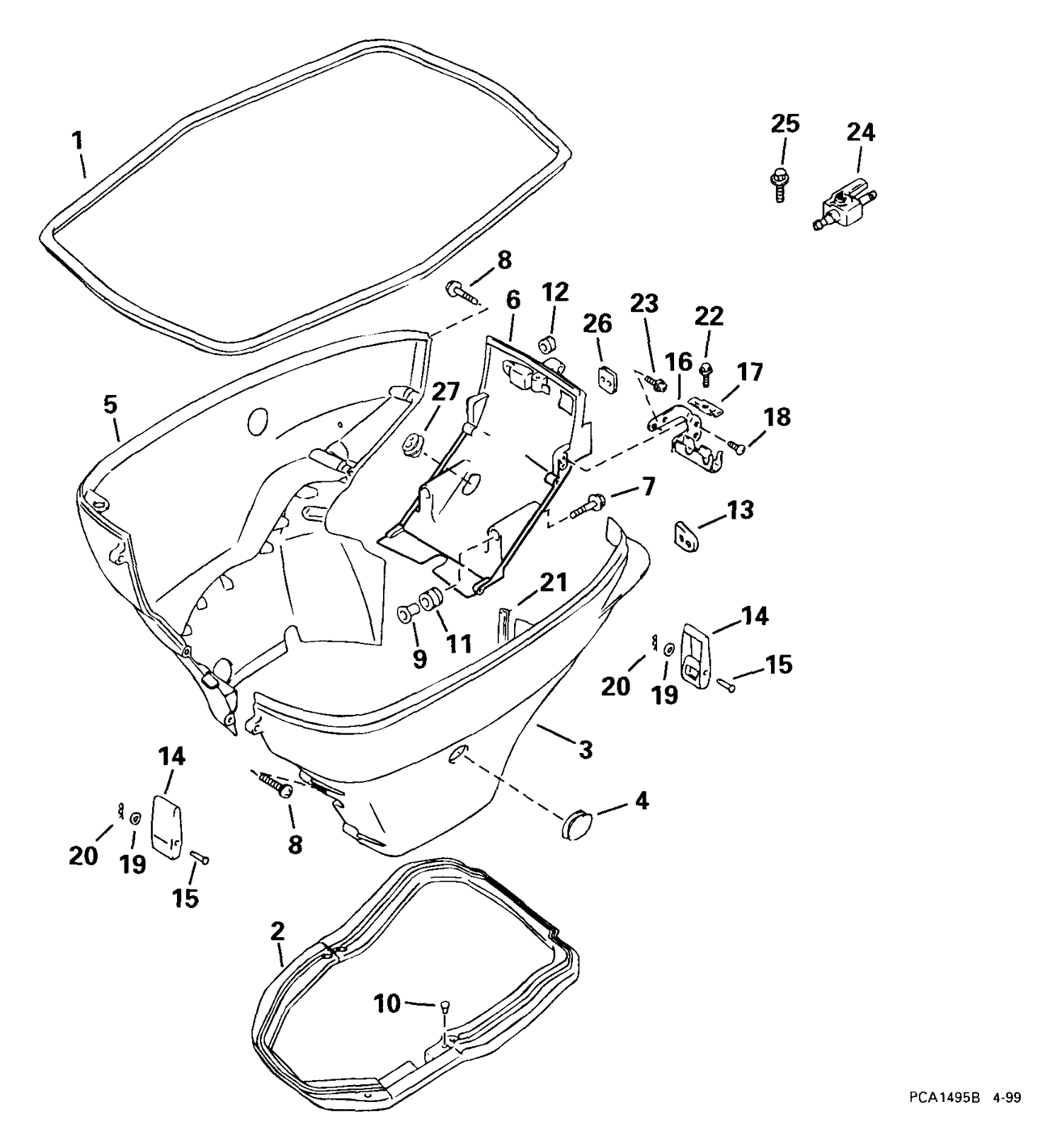

LOWER ENGINE COVER
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5030926 | SEAL, Upper cover |
| 2 | 5030928 | SEAL, Lower cover |
| 3 | 5030947 | COVER, Stbd |
| 4 | 5030948 | PLUG, Cover, drain |
| 5 | 5030950 | COVER, Port |
| 6 | 5030952 | PANEL, Front |
| 7 | 5030402 | BOLT (8X40mm) |
| 8 | *5030414 | SCREW, (6X30mm) |
| 9 | 5030473 | WASHER |
| 10 | 5030507 | PIN, Seal to housing |
| 11 | 5030558 | CUSHION |
| 12 | 5030528 | CAP, LOWER COVER |
| 13 | 5030927 | GROMMET, Control cable |
| 14 | 5030943 | FASTENER |
| 15 | 5030944 | GOUPILLE, LEVIER |
| 16 | 5030953 | BRACKET, Control cables |
| 17 | 5031593 | BUTÉE, CÂBLE CDE DISTANCE This part replaces 5030954. |
| 18 | 5030408 | SCREW (6X25mm) |
| 19 | 5030458 | RONDELLE |
| 20 | 5030573 | CLIP This part replaces 5030574. |
| 21 | 5031120 | CUSHION, Lower cover |
| 26 | 5030818 | GROMMET, Battery cable |
