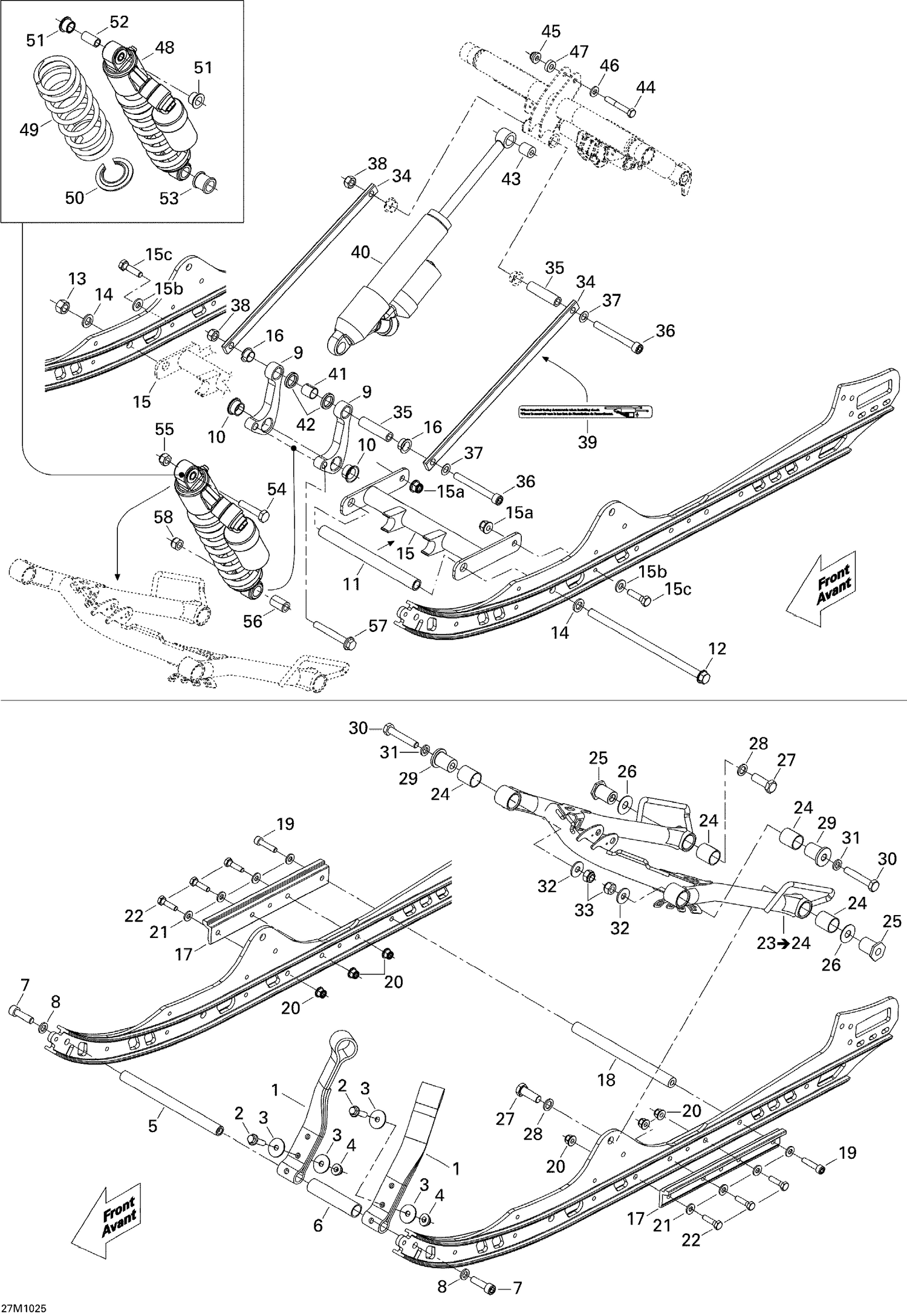

08- Front Arm
Parts (59)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503192360 | Stopper Strap |
| 2 | 207683044 | Hex. Flange Screw M8 X 30 |
| 3 | 224081301 | Flat Washer |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 |
| 5 | 503192115 | RUNNER AXEL - Call your local BRP dealership |
| 6 | 503189265 | Spacer |
| 7 | 205503544 | Socket Head Screw M10 X 35, Scotch Grip |
| 8 | 503189564 | Washer |
| 9 | 503191161 | Rocker Arm |
| 10 | 503191552 | Bushing |
| 11 | 503192809 | CENTER SHAFT PIVOT - Call your local BRP dealership This part replaces 503192361. |
| 12 | 250000229 | HEX. SCREW M12 X 252 - Call your local BRP dealership |
| 13 | 232021416 | Hex. Nut M12 |
| 14 | 503189148 | Washer |
| 15 | 503192334 | REINFORCEMENT - Call your local BRP dealership |
| 15a | 233281414 | Hex. Flange Elastic Nut M8 |
| 15b | 503189157 | Washer |
| 15c | 207183044 | Hex. Screw M8 X 30 |
| 16 | 503191555 | Swivel Bushing |
| 17 | 503191804 | RAIL REINFORCEMENT - Call your local BRP dealership |
| 18 | 503151600 | Axle |
| 19 | 205583544 | Socket Head Screw M8 X 35, Scotch Grip |
| 20 | 233281414 | Hex. Flange Elastic Nut M8 |
| 21 | 503189157 | Washer |
| 22 | 207183044 | Hex. Screw M8 X 30 |
| 24 | 503191554 | Bushing |
| 25 | 503191966 | Lower Axle |
| 26 | 503190656 | Washer |
| 27 | 250000537 | Hex. Cap Screw M12 X 35 This part replaces 250000225. |
| 28 | 503189276 | Washer |
| 29 | 503190698 | Axle |
| 30 | 207006084 | HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 31 | 503189564 | Washer |
| 32 | 250200014 | Flat Washer M10 This part replaces 506151251. |
| 33 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 34 | 503191573 | TIE ROD - Call your local BRP dealership |
| 35 | 503191192 | Bar Axle |
| 36 | 205009044 | Socket Screw M10 X 90 |
| 37 | 503175800 | Washer |
| 38 | 232500416 | Elastic Stop Nut M10 |
| 39 | 516005609 | Shock Position Decal This part replaces 516001790. |
| 40 | 503192325 | Rear Shock |
| 41 | 503191553 | Bushing |
| 42 | 503190694 | Plastic Spacer |
| 43 | 414936000 | Bushing |
| 44 | 207085586 | Hex. Screw M8 X 55 |
| 45 | 233281416 | Hex. Elastic Flange Nut M8 |
| 46 | 503189157 | Washer |
| 47 | 503190526 | Spacer |
| 48 | 503192327 | CENTER SHOCK - Call your local BRP dealership |
| 49 | 503192328 | BLACK SPRING - Call your local BRP dealership |
| 50 | 503194270 | Spring Stopper This part replaces 503191535. |
| 51 | 503189117 | Urethane Bushing |
| 52 | 503189282 | Bushing |
| 53 | 503189271 | Bushing |
| 54 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 55 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 56 | 503190604 | Central Shock Axle |
| 57 | 207607544 | Hex. Flange Screw M10 X 75 |
