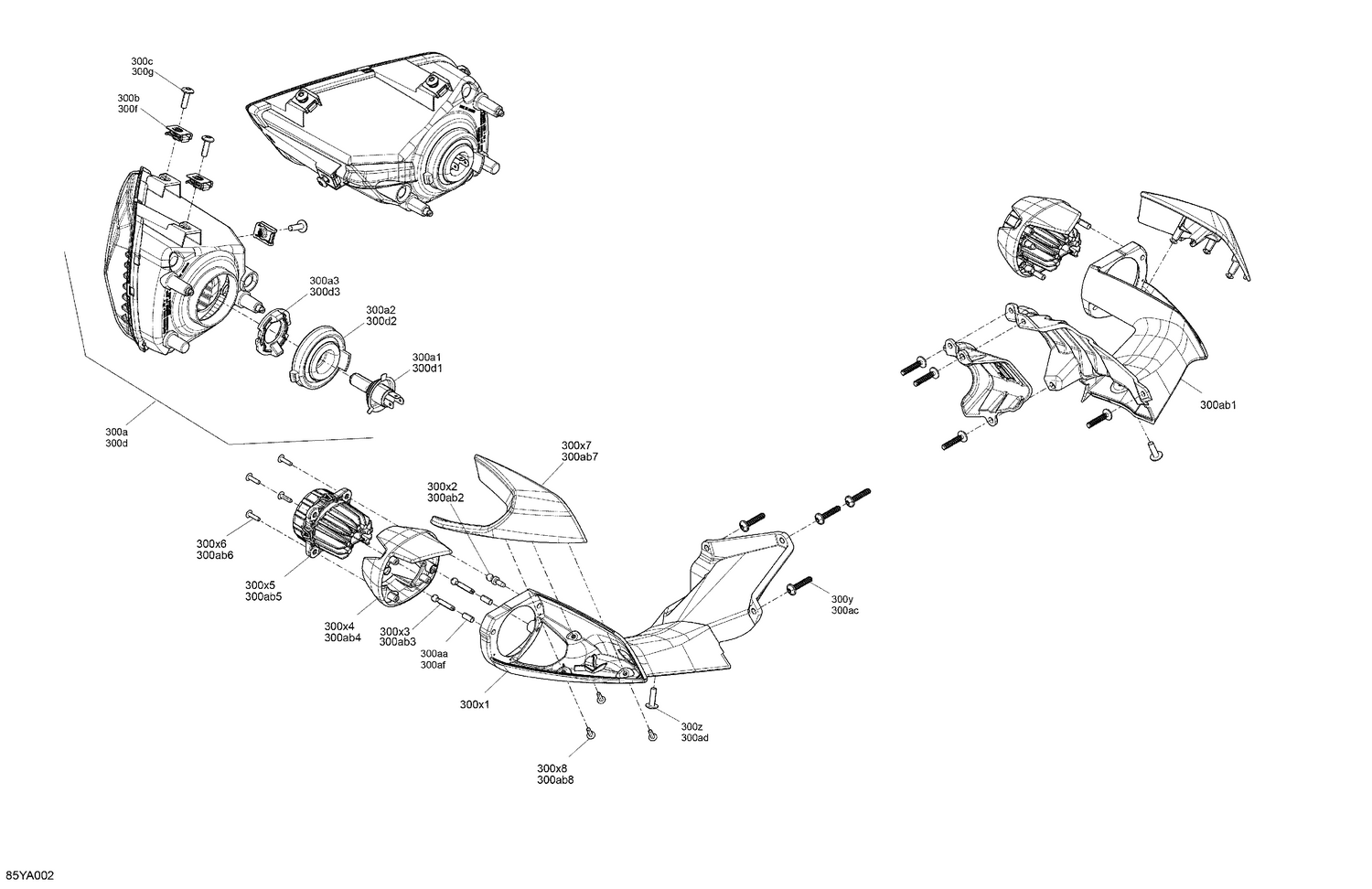

08- Electric - Headlights
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 300a1 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 300a2 | 219800457 | Rubber Cap Protector |
| 300a3 | 219800458 | Bulb Support |
| 300aa | 515176370 | Cap |
| 300ab2 | 705016154 | Ball Joint |
| 300ab3 | 705016155 | Ball Joint |
| 300ab4 | 705016398 | RH Mobile Support |
| 300ab5 | 710006007 | Low Beam Ass'y |
| 300ab6 | 250000759 | Torx Truss Pt K40 X 16 |
| 300ab7 | 705013633 | RH Cover |
| 300ab8 | 250000759 | Torx Truss Pt K40 X 16 |
| 300ac | 250000949 | Screw PT K60 X 30 |
| 300ad | 250000722 | Torx Screw M6 X 20 |
| 300b | 250100208 | Panel Nut M6 X 1.0 |
| 300c | 250000722 | Torx Screw M6 X 20 |
| 300d1 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 300d2 | 219800457 | Rubber Cap Protector |
| 300d3 | 219800458 | Bulb Support |
| 300f | 250100208 | Panel Nut M6 X 1.0 |
| 300g | 250000722 | Torx Screw M6 X 20 |
| 300x2 | 705016154 | Ball Joint |
| 300x3 | 705016155 | Ball Joint |
| 300x4 | 705016397 | LH Mobile Support |
| 300x5 | 710006007 | Low Beam Ass'y |
| 300x6 | 250000759 | Torx Truss Pt K40 X 16 |
| 300x7 | 705013632 | LH Cover |
| 300x8 | 250000759 | Torx Truss Pt K40 X 16 |
| 300y | 250000949 | Screw PT K60 X 30 |
| 300z | 250000722 | Torx Screw M6 X 20 |
