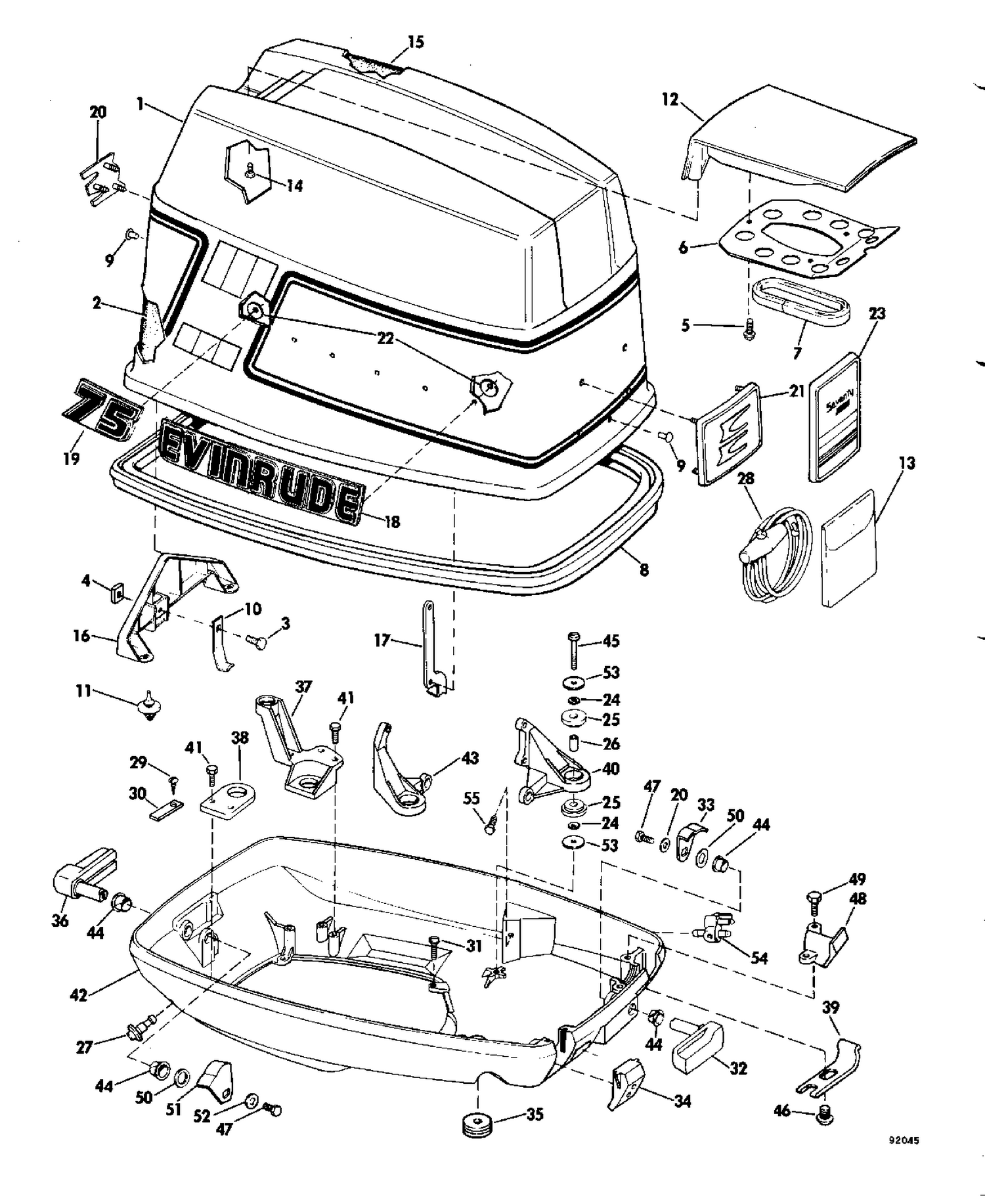

| Ref | Part Number | Description |
|---|
| 1 |
0281222 |
MOTOR COVER ASSEMLY |
| 1 |
0281223 |
MOTOR COVER ASEMBLY |
| 6 |
0206520 |
AIR INLET BAFFLE |
| 7 |
0208251 |
SEAL, Baffle to motor cover |
| 7 |
0208492 |
SEA:. TILT HANDLE |
| 8 |
0208075 |
SEAL, Motor cover |
| 8 |
0208161 |
SEAL, Motor cover |
| 13 |
0314494 |
BAG EMERGENCY STARTER ROPE |
| 15 |
0317447 |
SOUND BLANKET, Tip |
| 18 |
0208375 |
APPLIQUE, Evinkrude, stbd & port |
| 19 |
0208319 |
APPLIQUE, Port and starboard |
| 20 |
0208527 |
APPLIQUE, Rear |
| 21 |
0208311 |
APPLIQUE, Front |
| 23 |
0208312 |
PLATE, Applique, front |
| 24 |
0329241 |
RONDELLE This part replaces 0306482. |
| 25 |
0316354 |
ENGINE COVER SUPPORT GROMMET This part replaces 0302405. |
| 26 |
0302406 |
SLEEVE |
| 27 |
0321885 |
NIPPLE |
| 28 |
0378347 |
CORDE DE LANCEUR |
| 30 |
0206268 |
SPRING, Handle detent |
| 31 |
0309021 |
SCREW, Condenser to regulator |
| 32 |
0322537 |
LATCH HANDLE & SHAFT ASSEMBLY |
| 33 |
0330253 |
HOOK Front This part replaces 0323235. |
| 34 |
0318401 |
GROMMET, Remote cont cable |
| 36 |
0384338 |
HANDLE & SHAFT ASSY. |
| 37 |
0317290 |
BRACKET, Port, rear |
| 38 |
0317291 |
BRACKET, Starboard, rear |
| 39 |
0333739 |
RETAINER, Fuel hose to cover This part replaces 0318313. |
| 40 |
0313839 |
BRACKET, Cover, port |
| 41 |
0300646 |
VIS, ancrage |
| 42 |
0434173 |
ENGINE COVER, Lower This part replaces 0323067. |
| 43 |
0313840 |
BRACKET, Cover, starboard |
| 45 |
0329240 |
SCREW This part replaces 0314451. |
| 46 |
0310539 |
SCREW, Clamp choke solenoid |
| 47 |
0318468 |
SCRAEW, Latch to handle |
| 49 |
0307151 |
SCREW |
| 54 |
0393334 |
CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 55 |
0313117 |
SCR,Clamp,eng cable |
| 0281305 |
0281305 |
DECAL SET |
| 0281306 |
0281306 |
DECAL SET |
