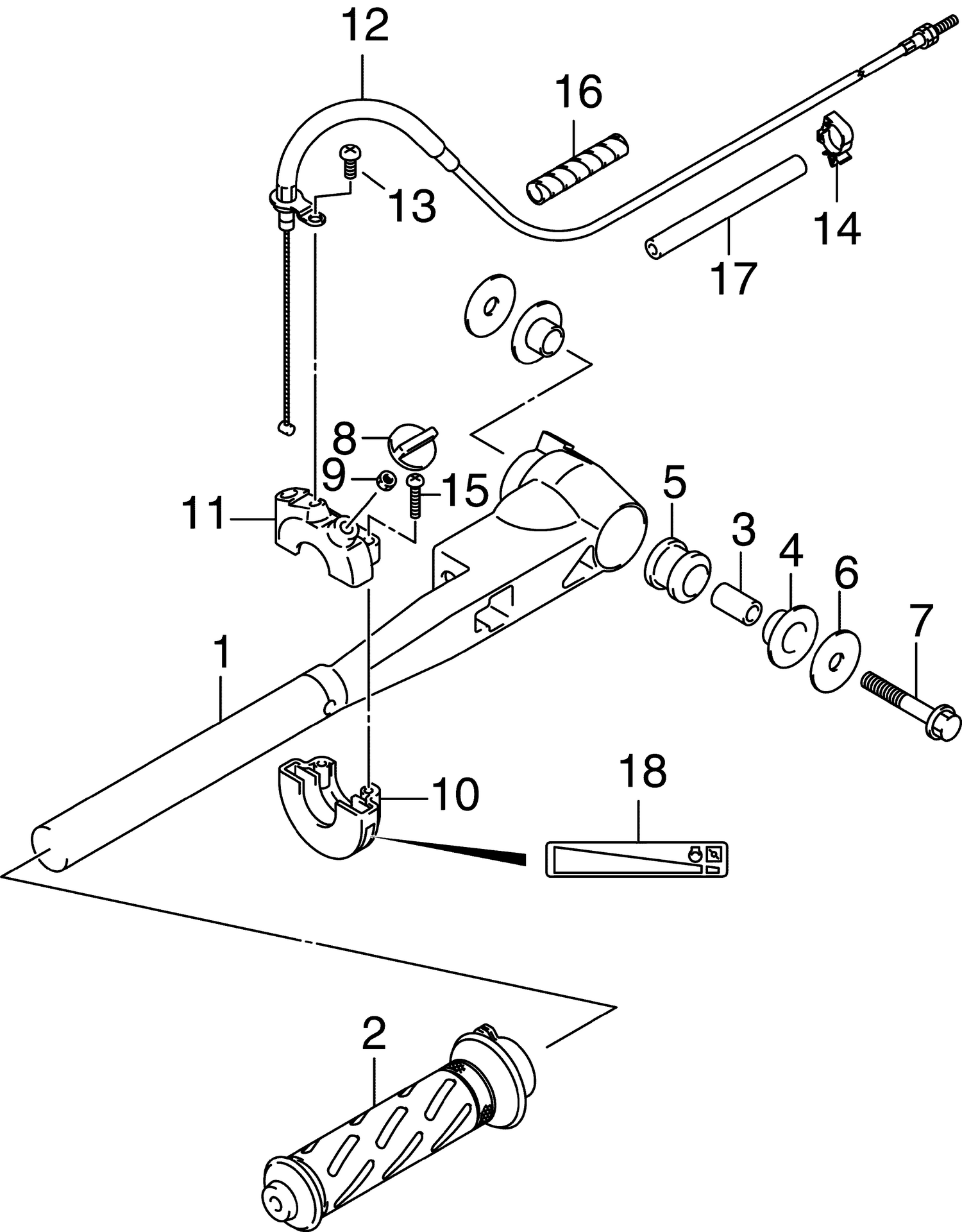

TILLER HANDLE
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5037411 | HANDLE, TILLER |
| 2 | 5037412 | GRIP |
| 3 | 5037413 | SPACER |
| 4 | 5037414 | BUSHING |
| 5 | 5037415 | MOUNT, Tiller handle |
| 6 | 5037416 | WASHER |
| 7 | 5035665 | BOLT (8X40) |
| 8 | 5037417 | KNOB, Throttle adjustment |
| 10 | 5037418 | CASE, Throttle - Upper |
| 11 | 5037419 | CASE, Throttle - Lower |
| 12 | 5037420 | CABLE Assy, Throttle |
| 13 | 5037421 | SCREW, Throttle cable |
| 14 | 5037422 | CLAMP, Throttle cable |
| 15 | 5037423 | SCREW, Throttle cable |
| 17 | 5033026 | PROTECTOR, Throttle cable |
