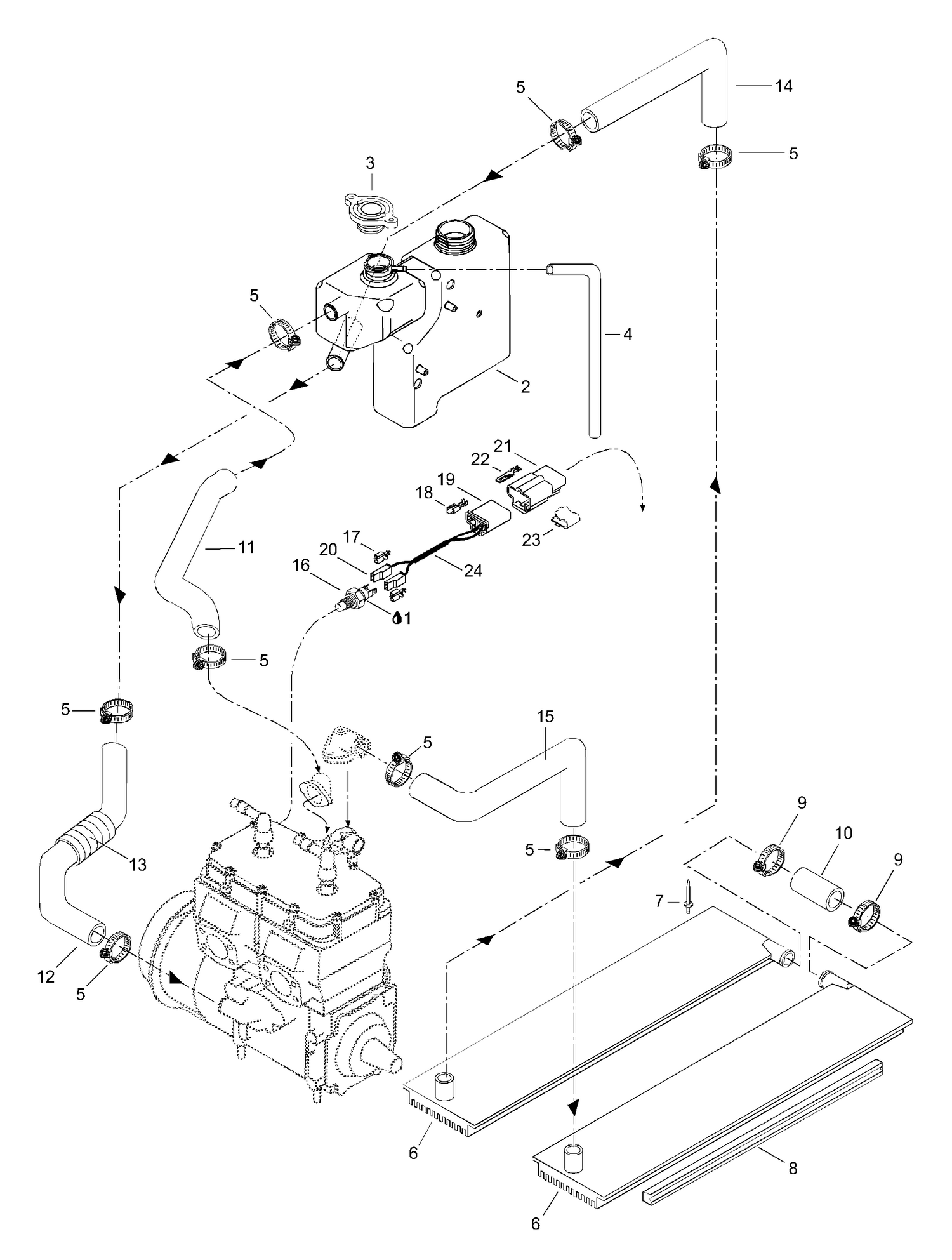

01- Radiator, Hoses
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 293800018 | SEALANT LOCTITE 592 - Call your local BRP dealership |
| 2 | 519000014 | Coolant tank |
| 3 | 509000187 | Pressure Cap This part replaces 414684700. |
| 4 | 39038 | Owerflow hose |
| 5 | 408800400 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 6 | 517290600 | R.H. radiator |
| 6 | 517290601 | L.H. radiator |
| 8 | 415012300 | RADIATOR PROTECTOR - Call your local BRP dealership |
| 9 | 408803400 | Clamp |
| 10 | 414795800 | Radiator hose |
| 11 | 414972900 | Engine outlet hose |
| 12 | 415010400 | Engine inlet hose |
| 13 | 28026 | Tubing |
| 14 | 414973000 | Radiator outlet hose |
| 15 | 415028000 | Radiator inlet hose |
| 16 | 512047000 | Sender temperature |
| 17 | 409010100 | Female terminal |
| 18 | 561503200 | Female terminal |
| 19 | 409008500 | Cojnnector housing |
| 20 | 409010400 | Cojnnector housing |
| 21 | 409008600 | Cojnnector housing |
| 22 | 409210000 | MALE TERMINAL - Call your local BRP dealership This part replaces 409206100. |
| 23 | 409205600 | CLIP - Call your local BRP dealership |
