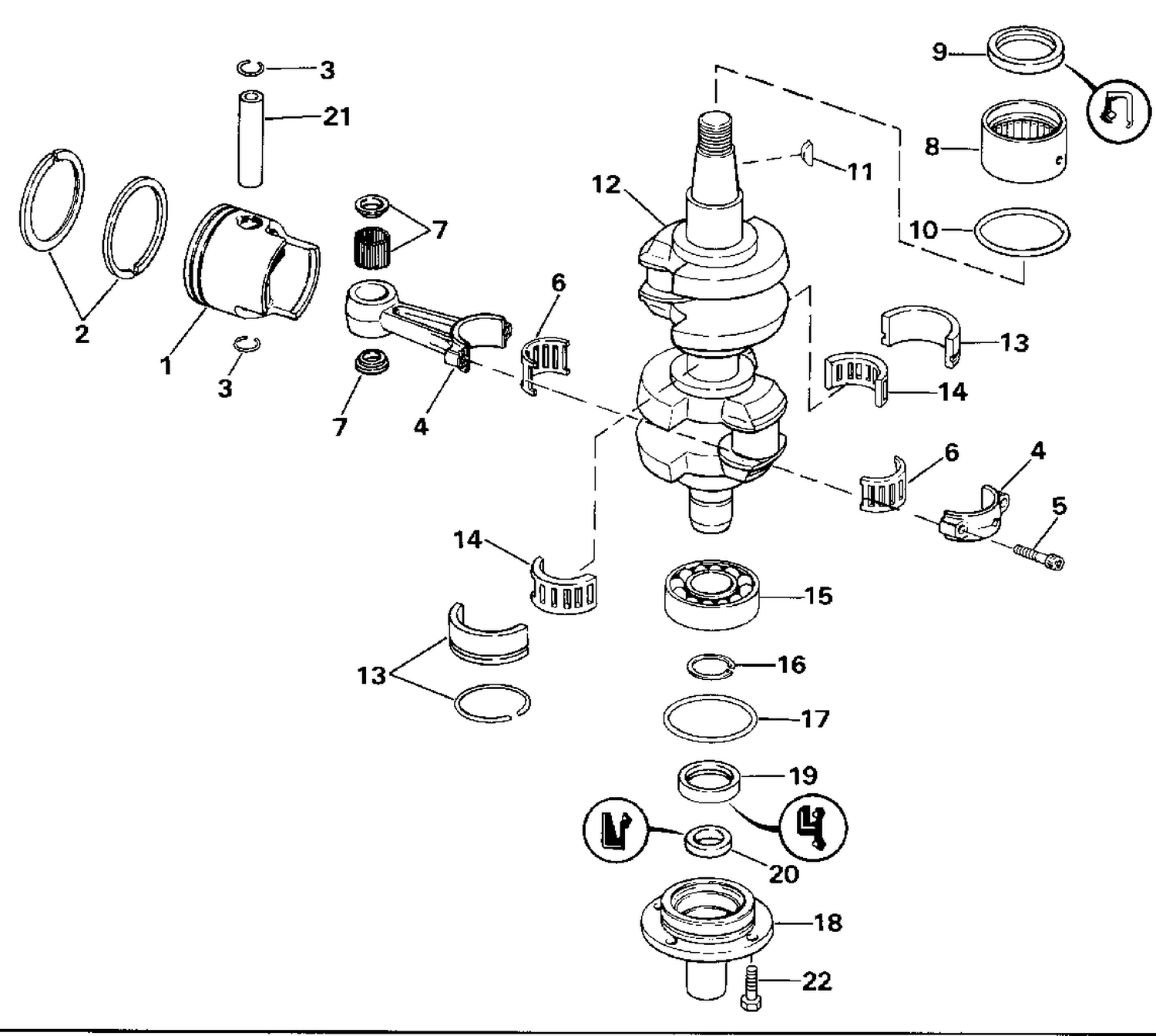

CRANKSHAFT & PISTON
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0434108 | PISTON & RING ASSY., 0.030 in. O.S. |
| 1 | 5006655 | Pstn&Ring Kit-Std This part replaces 0391798. |
| 2 | 0434107 | RING SET, Std |
| 2 | 0434109 | RING SET, 0.030 in o.s. |
| 3 | 0317831 | Circlip |
| 4 | 0395861 | CONNECTING ROD |
| 6 | 0437088 | BEARING Assy This part replaces 0388344. |
| 7 | 0395627 | BEARING & RETAINER |
| 8 | 0398529 | BEARING & SEAL ASSY., Crankshaft |
| 10 | 0313754 | O RING |
| 11 | 0120395 | KEY |
| 12 | 0334203 | CRANKSHAFT |
| 13 | 0310433 | SLEEVE |
| 14 | 0378252 | BEARING ASSY., Needle |
| 17 | 0308876 | O RING CRANKCASE HEAD LOWER |
| 18 | 0433863 | CRANKCASE HEAD ASSY. |
| 20 | 0330327 | RETAINER, Oil driveshaft, outer |
| 21 | 0322188 | WRIST PIN |
