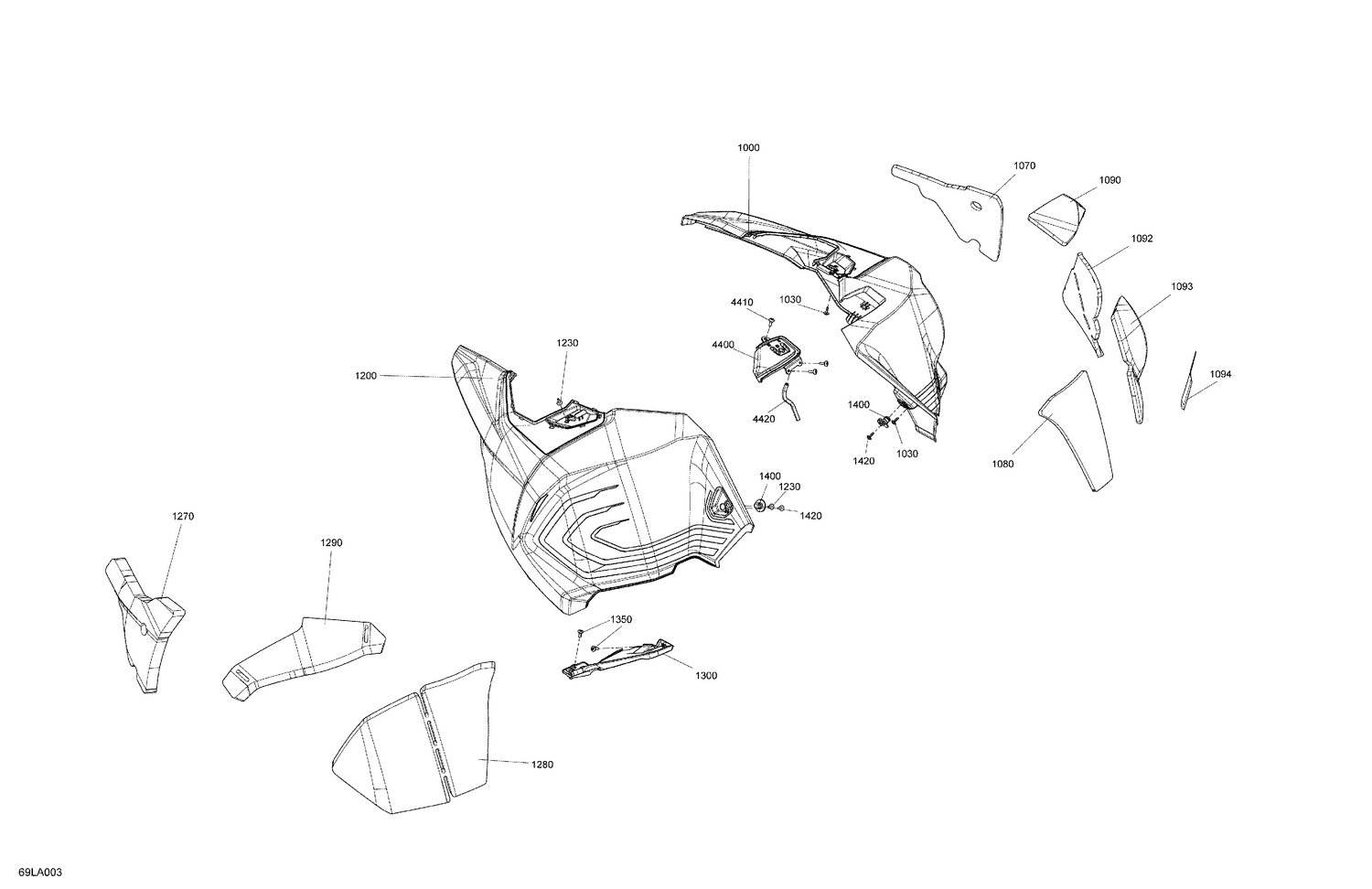

07- Body - Side Panels
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1000 | 517306817 | RH Side Panel 24" With Gearbox |
| 1030 | 250000805 | Plastite Screw M4 X 10 |
| 1070 | 517308479 | RH Front Side Panel Foam This part replaces 517307582. |
| 1080 | 517308480 | RH Rear Side Panel Foam This part replaces 517307578. |
| 1090 | 517307579 | RH Upper Side Panel Foam |
| 1092 | 517308482 | RH Central Side Panel Foam This part replaces 517307584. |
| 1093 | 517307585 | RH Central Side Panel Foam |
| 1094 | 517307903 | RH Side Panel Heat Shield |
| 1200 | 517307250 | LH Side Panel 24" |
| 1230 | 250000805 | Plastite Screw M4 X 10 |
| 1270 | 517307583 | LH Front Side Panel Foam |
| 1280 | 517307580 | LH Rear Foam Side Panel |
| 1290 | 517307581 | LH Upper Side Panel Foam |
| 1300 | 517307449 | LH Snow Deflector 24" |
| 1350 | 250000721 | Torx Truss Screw M6 X 16 |
| 1400 | 517305985 | Rear Stud |
| 1420 | 250000725 | Screw M4 X 16 |
| 4400 | 517306818 | Shift Lever Grille |
| 4410 | 250000528 | Torx Screw M5 X 20 |
