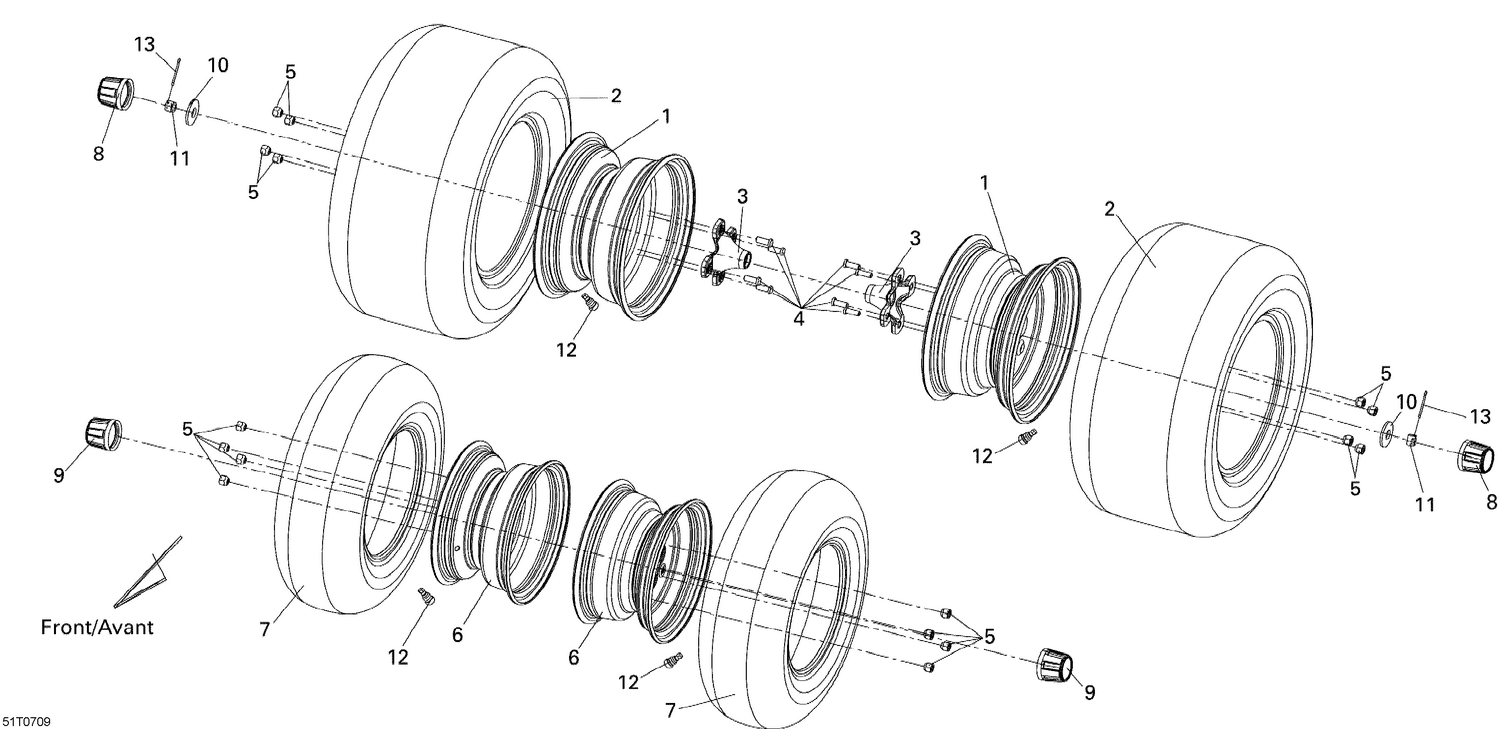

07- Wheels And Tires
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | S42650RCA000 | Rear Rim Ass'y. |
| 2 | S42710RCA000 | Rear Tire |
| 3 | S42706RCA000 | AXLE CONNECTOR - Call your local BRP dealership |
| 4 | S90114RCA000 | Rear Hub Bolt |
| 5 | S90315RCA000 | Nut |
| 6 | S44650RCA000 | Front Rim Ass'y |
| 7 | S44710RCA001 | Front Tire This part replaces S44710RCA000. |
| 8 | S42609RCA000 | Rear Wheel Cap |
| 9 | S44609RCA000 | Front Wheel Cap |
| 10 | 250200006 | Spring Washer 14 mm |
| 11 | S90310RCA000 | Castle Nut 14 mm |
| 12 | S44753RCA000 | Rim Valve |
