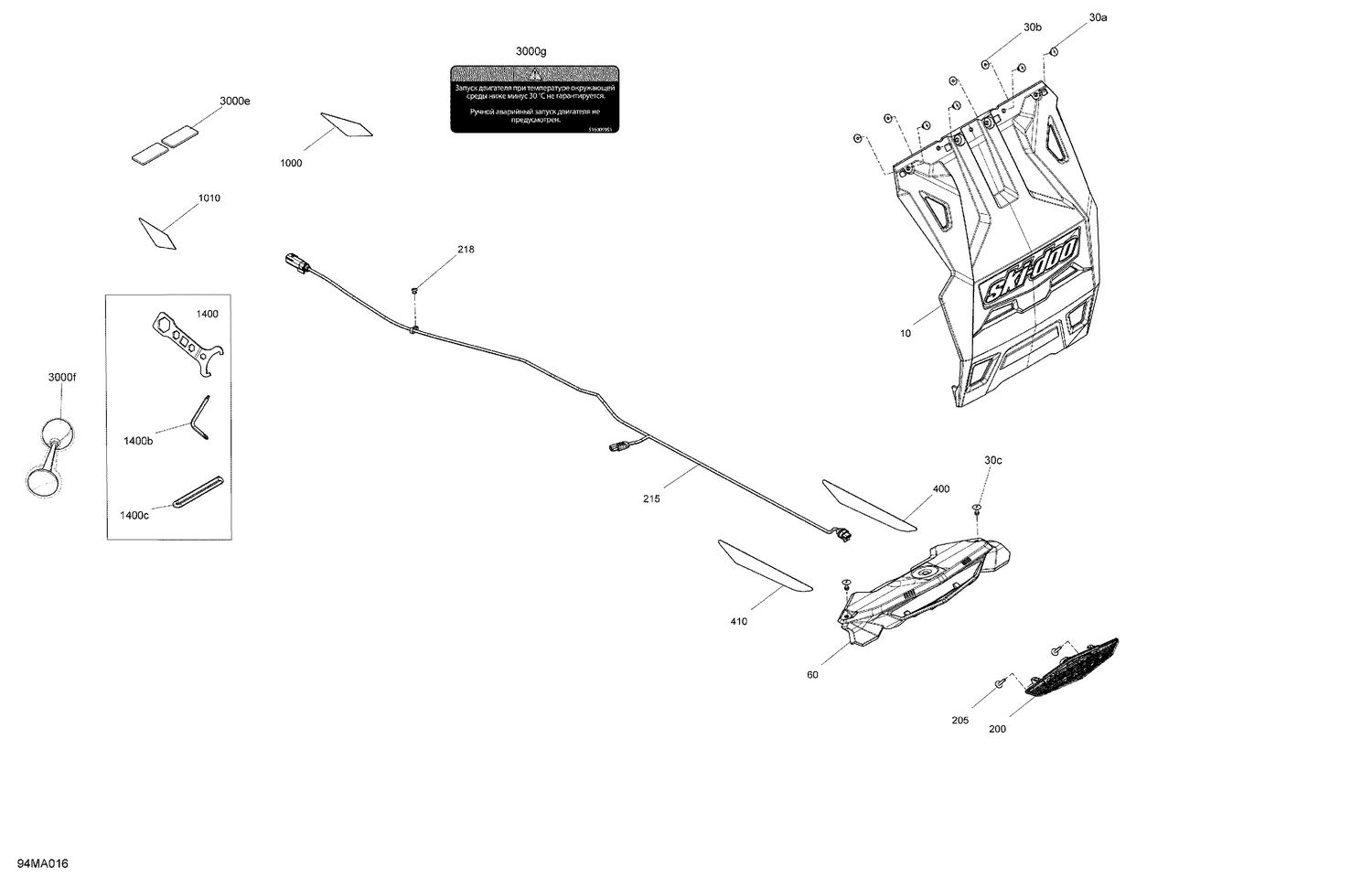

09- Miscellaneous - Utilities
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520001481 | Snow Gard |
| 30a | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 30b | 517124300 | Washer |
| 30c | 293150100 | Pop Rivet 3/16" |
| 60 | 520001487 | Light Fairing |
| 200 | 520001143 | Rear Light |
| 205 | 250000101 | Plastite Screw Type K-40, M4 X 25 |
| 215 | 515178266 | Rear Light Harness |
| 218 | 390402200 | Pop Rivet 3/16" |
| 400 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 410 | 861805523 | Yellow, LH/RH Rear Reflector Kit |
| 1000 | 520002343 | RH Front Reflector |
| 1010 | 520002344 | LH Front Reflector |
| 1400b | 520001815 | Key |
| 1400c | 529017500 | Rope Starter |
| 3000e | 520000271 | Amber, Reflector |
| 3000f | 549011291 | Horn |
