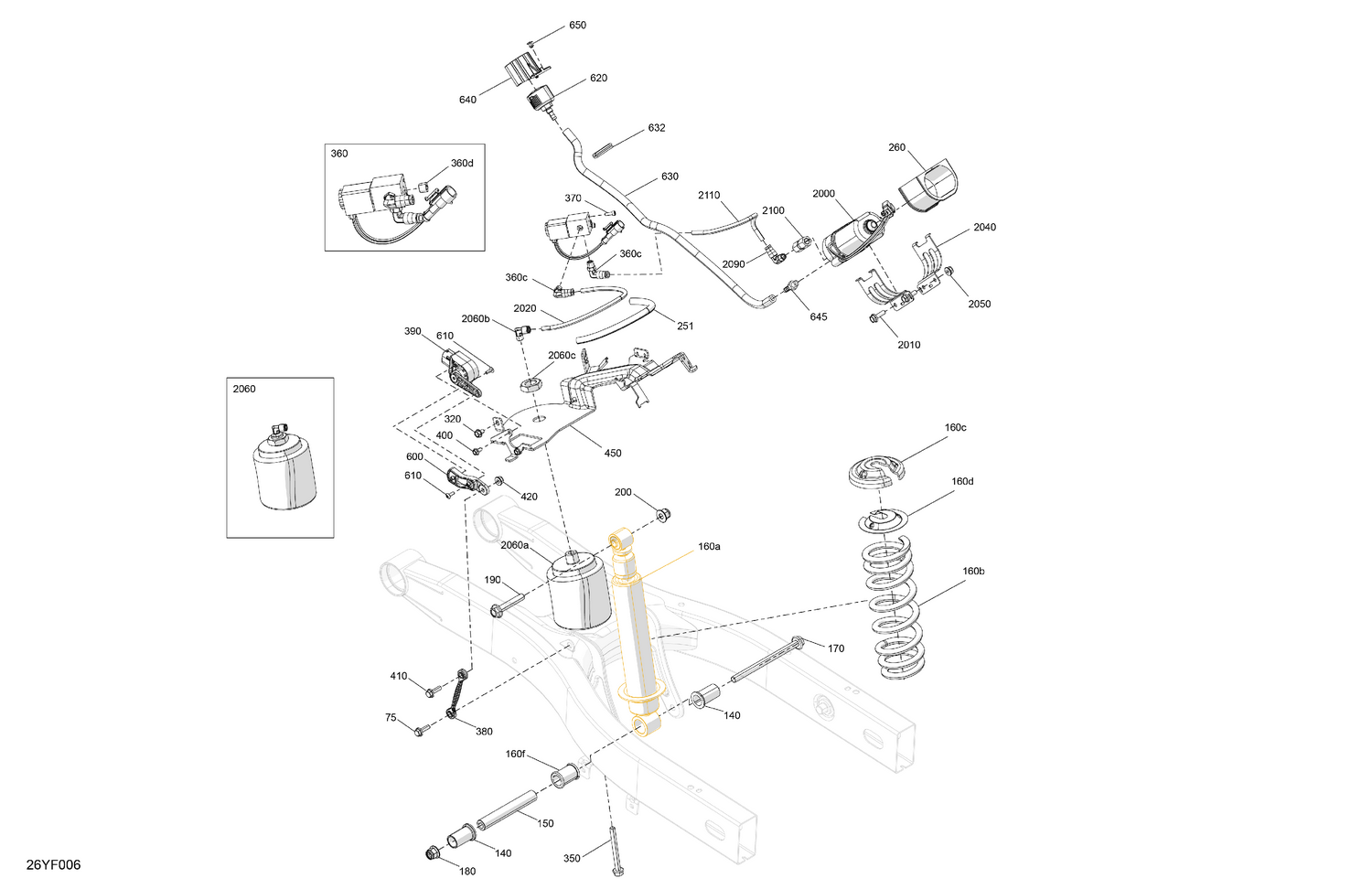

05- Suspension - Rear Shock
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 75 | 207662554 | Hex. Flange Screw M6 X 25 |
| 140 | 706000410 | Spacer |
| 150 | 706000409 | Shock Absorber Shaft |
| 160a | 706001706 | Shock |
| 160b | 706001707 | Spring |
| 160c | 503193781 | Spring Stopper |
| 160d | 503193782 | Cap |
| 160f | 503191609 | Urethane Cushion |
| 170 | 230604034 | Hex. Flange Screw M10 X 140 |
| 180 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 190 | 207605554 | Hex. Flange Screw M10 X 55 |
| 200 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 251 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 260 | 706000631 | Compressor Isolator |
| 320 | 210261050 | Hex. Forming Screw M6 X 10 |
| 350 | 207687544 | Hex. Flange Screw M8 X 75 |
| 360c | 706000928 | Elbow 90° |
| 360d | 504151921 | Plug 1/8”-27 |
| 370 | 205041254 | Socket Head Screw M4 X 12 |
| 380 | 706202505 | Tie Rod |
| 390 | 710004740 | Suspension Sensor |
| 400 | 207551056 | Hex. Flange Screw M5x10 |
| 410 | 207662044 | Hex. Flange Screw M6 X 20 |
| 420 | 233061414 | Hex. Flange Nut M6 |
| 450 | 706004660 | Shock Absorber Anchorage |
| 600 | 706004639 | Lever |
| 610 | 250001131 | Torx Truss PT K40 x 12 |
| 620 | 706005941 | Air Filter |
| 630 | 706005955 | Hose |
| 632 | 219704548 | Edge Cut Trim 1000Mm |
| 640 | 706005956 | Rear Filter Support |
| 645 | 293700059 | Screwed Pipe Fitting |
| 650 | 293150300 | Black, Pop Rivet 3/16 X ,425 |
| 2000 | 706005694 | Compressor |
| 2010 | 207662044 | Hex. Flange Screw M6 X 20 |
| 2020 | 706001211 | Hose 1/4 |
| 2040 | 503193103 | Compressor Bracket |
| 2050 | 233061414 | Hex. Flange Nut M6 |
| 2060a | XXX | Not Available As Spare Parts |
| 2060b | 706001018 | Elbow 90° |
| 2060c | 250100119 | Jam Nut M20 |
| 2090 | 706000928 | Elbow 90° |
| 2100 | 706000831 | Ckeck Valve |
