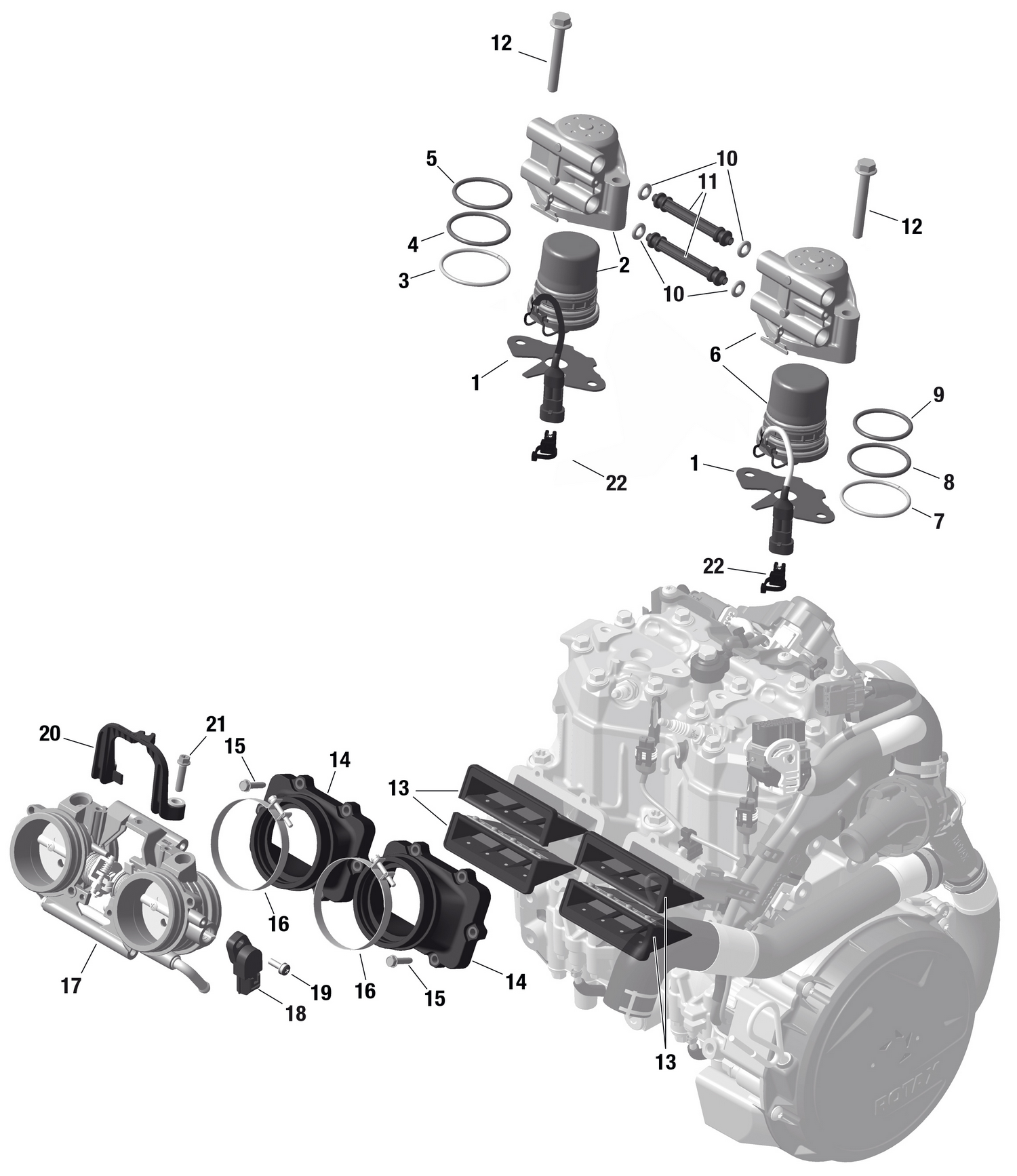

01- ROTAX - Electronic Fuel Injection
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420874876 | Fuel Injector PTO |
| 3 | 415129497 | Crush Ring |
| 11 | 420874190 | Tube |
| 12 | 420840097 | Hex Screw M9 X 60 |
| 13 | 420924798 | Reed Valve Ass'y |
| 14 | 420867390 | Intake Socket |
| 15 | 420841556 | Tapping Screw M5 X 20 |
| 16 | 420251209 | Clamp |
| 17 | 420685755 | Throttle Body Socket |
| 18 | 420866680 | Throttle Valve Position Sensor |
| 19 | XXX | Not Available As Spare Parts |
| 20 | 420874163 | Cable Guide |
| 21 | 420440234 | Flanged Torx Screw M6 X 25 |
