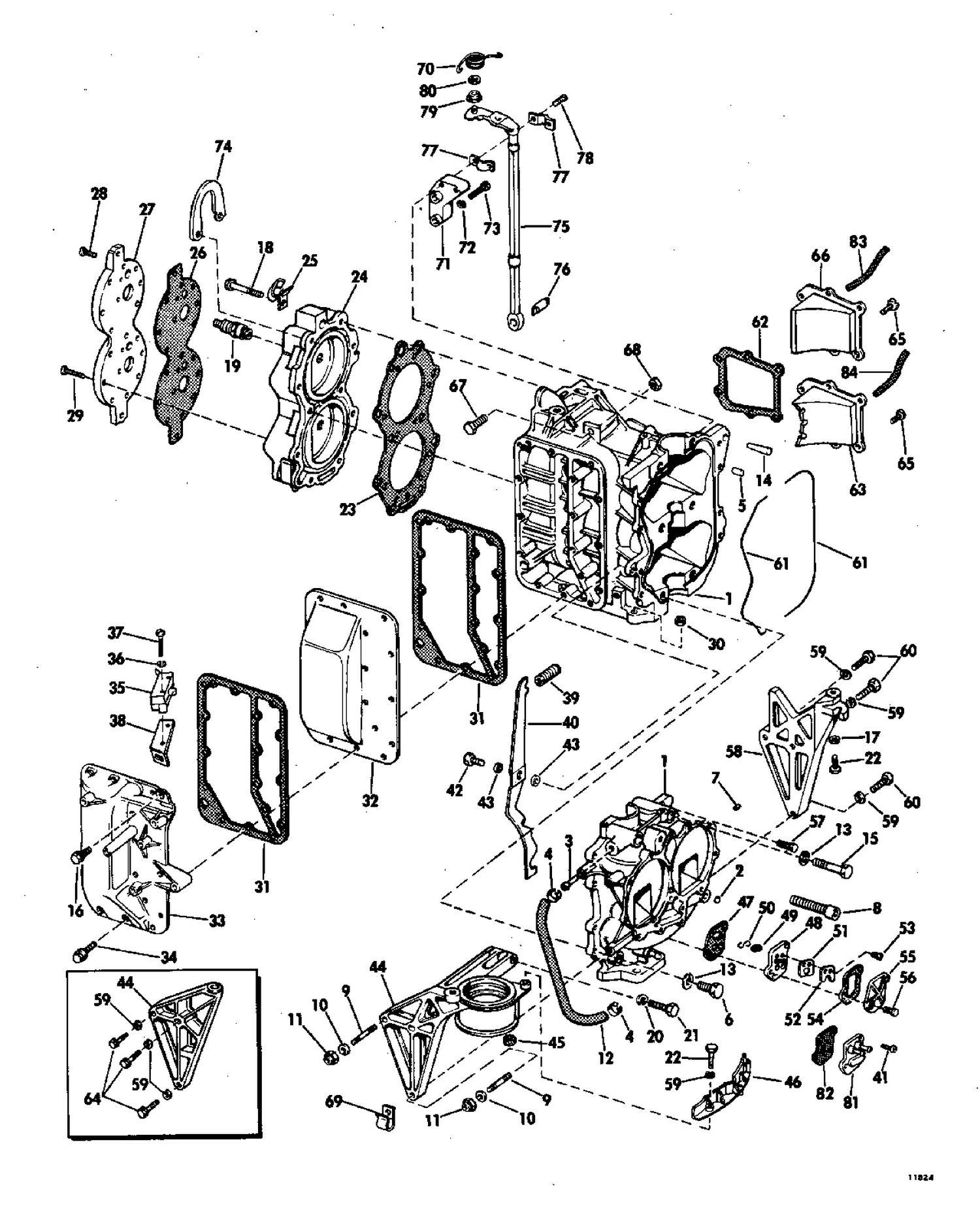

| Ref | Part Number | Description |
|---|
| 1 |
0384594 |
CYLINDER & C'CASE ASSY |
| 2 |
0300788 |
PLUG EXPANSION |
| 4 |
0302647 |
CLAMP |
| 7 |
0307587 |
PLUG, Crankcase |
| 8 |
0302579 |
SCREW, Allen |
| 10 |
0329241 |
RONDELLE This part replaces 0306482. |
| 12 |
0203909 |
HOSE, Oil return |
| 15 |
0301431 |
SCREW |
| 16 |
0307608 |
SCREW |
| 17 |
0306407 |
LOCCKWASHER,Cover latch |
| 18 |
0305027 |
SCREW |
| 19 |
0378101 |
SPARK PLUB, Champion j4j |
| 19 |
0378320 |
SPARK PLUG, AC - M42K |
| 21 |
0305006 |
SCREW |
| 22 |
0306409 |
VIS, collecteur vers carter-moteur |
| 23 |
0307069 |
GASKET, Cylinder head |
| 24 |
0316243 |
CYLINDER HEAD |
| 25 |
0310466 |
CLAMP, High tension leads |
| 26 |
0304724 |
GASKET, Cover |
| 27 |
0554339 |
COVER, Cylinder head |
| 28 |
0306409 |
VIS, collecteur vers carter-moteur |
| 29 |
0306418 |
VIS, ancrage |
| 31 |
0304762 |
GAKSET, Exhaust cover |
| 32 |
0304761 |
COVER, Exhaust, inner |
| 33 |
0312654 |
EXHAUSE COVER, Outer |
| 34 |
0306418 |
VIS, ancrage |
| 35 |
0386056 |
INTERRUPTEUR DE DÉMARRAGE AU POINT MORT This part replaces 0379542. |
| 36 |
0310498 |
WASHER |
| 37 |
0307922 |
SCREW |
| 38 |
0307881 |
BRACKER, Safety switch |
| 39 |
0302587 |
SPRING, Shifter lock |
| 40 |
0316716 |
SHIFTER LOCK |
| 41 |
0307466 |
SCRES, Bowl to body |
| 42 |
0322781 |
SCREW, Lockout lever boss This part replaces 0316605. |
| 43 |
0325542 |
BUSHING This part replaces 0316603. |
| 44 |
0305078 |
BRACKET, Starboard |
| 44 |
0305084 |
BACKET, Starboard |
| 45 |
0304847 |
JOINT, boulon de démarreur |
| 46 |
0307475 |
GUARD, Ring gear |
| 47 |
0309427 |
GAKSET, Drain valve |
| 48 |
0379094 |
LEAF VALVE PLATE & SCREEN ASSY |
| 49 |
0310628 |
SCREEEN |
| 50 |
0310629 |
SPRING |
| 51 |
0302031 |
LEAF PLATE |
| 52 |
0304655 |
PLATE |
| 53 |
0303761 |
SCREW |
| 55 |
0302033 |
COVER |
| 56 |
0305346 |
SCREW |
| 57 |
0300646 |
VIS, ancrage |
| 58 |
0305077 |
BRACKET, Port |
| 60 |
0307471 |
SCREW |
| 61 |
SEAL, |
Cyl>to c'case |
| 62 |
0304784 |
GASKET, By-oass cover |
| 63 |
0308183 |
BY-PASS COVER, Lower |
| 63 |
0385108 |
BY-PASS COVER, Lower |
| 64 |
0308077 |
SCREW |
| 65 |
0306487 |
SCREW |
| 66 |
0313871 |
BY-PASS COVER, Upper |
| 66 |
0385107 |
BY-PASS COVER UPPER |
| 67 |
0316369 |
SCREW, Armature plate stop |
| 69 |
0310441 |
CLAMP, CPS lead This part replaces 0310493. |
| 70 |
0316368 |
SPRING |
| 71 |
0304941 |
BRACKET |
| 72 |
0302376 |
LOCKWASHER |
| 73 |
0306049 |
SCREW |
| 74 |
0312050 |
BRACKET, Lift |
| 75 |
0378308 |
CONTROL LEVER |
| 76 |
0329197 |
PIN, Control lever This part replaces 0304155. |
| 77 |
0305609 |
BEARING CLAMP |
| 78 |
0302948 |
SCREW |
| 79 |
0307841 |
BUSHING, Control lever |
| 80 |
0305831 |
SHIM |
| 81 |
0385109 |
HSG. NIPPLE & VALVE ASSY |
| 82 |
0317254 |
GASKET, C'case to hsg |
| 83 |
0772568 |
FLEXIBLE, solénoïde d'amorçage vers raccord amorçage tribord, 14" (356 mm) This part replaces 0317251. |
| 84 |
0772568 |
FLEXIBLE, solénoïde d'amorçage vers raccord amorçage tribord, 14" (356 mm) This part replaces 0317252. |
