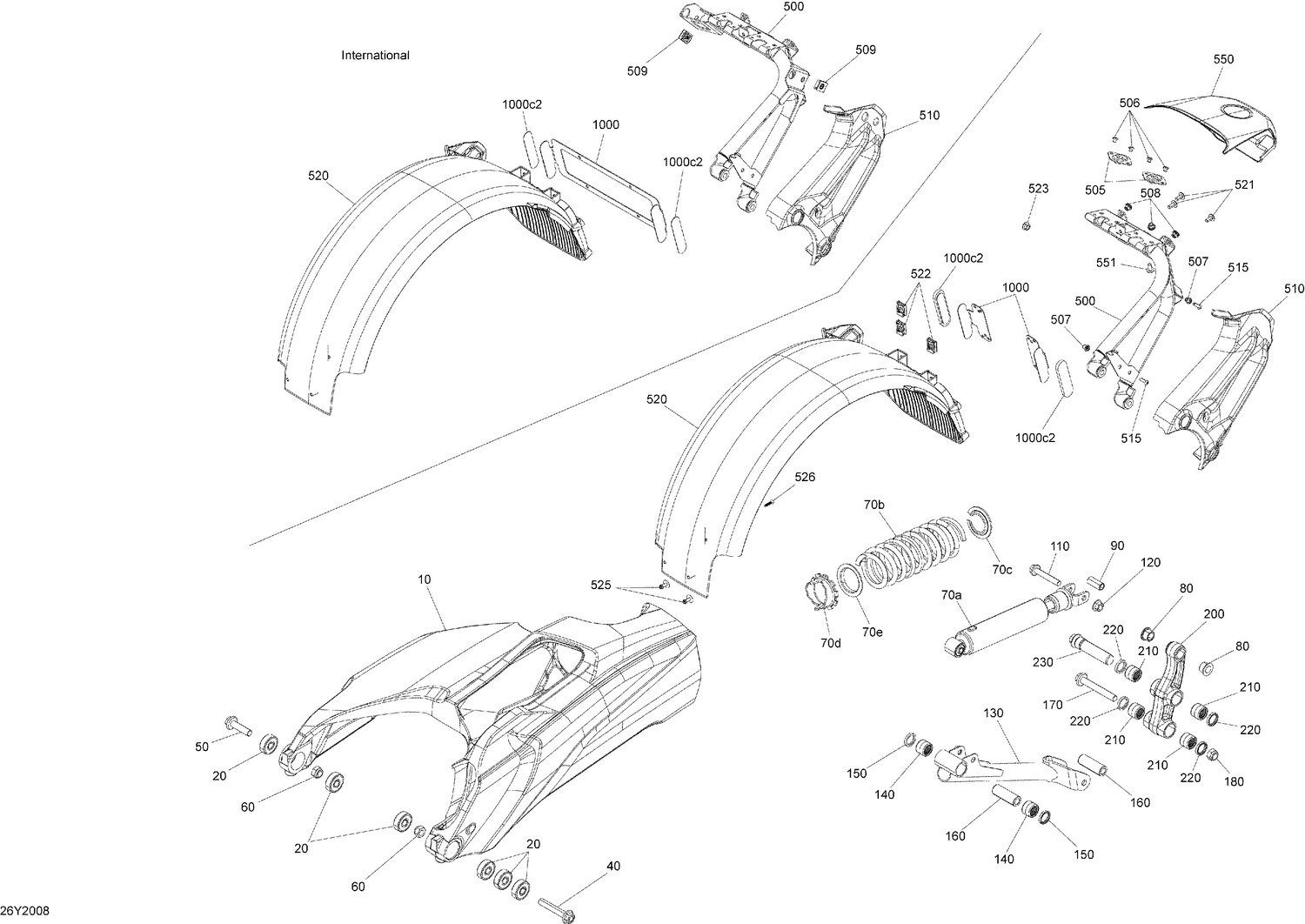

| Ref | Part Number | Description |
|---|
| 10 |
706002399 |
Rear Swing Arm |
| 20 |
706002649 |
Ball Bearing, ID 12, OD 37, L 12 |
| 40 |
250000858 |
Hex. Flange Screw M12 X 70 |
| 50 |
207524556 |
Hex. Flange Screw M12 X 45, Scotch Grip |
| 60 |
232521416 |
Elastic Stop Nut M12 |
| 70a |
706002531 |
Rear Shock Absorber |
| 70b |
706002532 |
Rear Compression Spring |
| 70c |
706203670 |
Spring Stopper |
| 70d |
706003123 |
Cam Adjustment |
| 70e |
503187500 |
Spring Guide |
| 80 |
503189117 |
Urethane Bushing |
| 90 |
706002678 |
Spacer |
| 110 |
207506056 |
Hex. Flange Screw M10 X 60, Scotch Grip |
| 120 |
233101464 |
Hex. Elastic Flange Nut , M10 X 1.5 |
| 130 |
706002533 |
Suspension Arm Lever, Primary |
| 140 |
706002965 |
Bearing, Needles |
| 150 |
706000448 |
Seal, Single Lip ID 19.4 OD 26 |
| 160 |
706002534 |
Axle, Suspenion Arm |
| 170 |
207528556 |
Hex. Flange Screw M12 X 85, Scotch Grip |
| 180 |
232521416 |
Elastic Stop Nut M12 |
| 200 |
706202664 |
Suspension Arm Lever, Secondary |
| 210 |
706002965 |
Bearing, Needles |
| 220 |
706000448 |
Seal, Single Lip ID 19.4 OD 26 |
| 230 |
706002961 |
Pin Threaded M25 X 1.5 S.Grip, Lever |
| 505 |
705005055 |
Grommet Ass'y |
| 506 |
293150102 |
Rivet 3/16" |
| 507 |
293450267 |
Insert M5 - 0.8 |
| 508 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 515 |
250000578 |
Torx Truss Screw M5 X 16, T25 |
| 521 |
250000789 |
Torx Truss M6X14 |
| 522 |
250100208 |
Panel Nut M6 X 1.0 |
| 523 |
233061414 |
Hex. Flange Nut M6 |
| 525 |
293150104 |
Pop Rivet 3/16" |
| 526 |
250001097 |
Screw 8-32 |
| 550 |
706003151 |
Rear Fender Trim |
| 551 |
250000789 |
Torx Truss M6X14 |
| 7600h13 |
250000805 |
Plastite Screw M4 X 10 |
| 7600h14 |
207528556 |
Hex. Flange Screw M12 X 85, Scotch Grip |
| 7600h15 |
207204556 |
Hex. Screw M10 x 45 |
| 7600h16 |
232521416 |
Elastic Stop Nut M12 |
