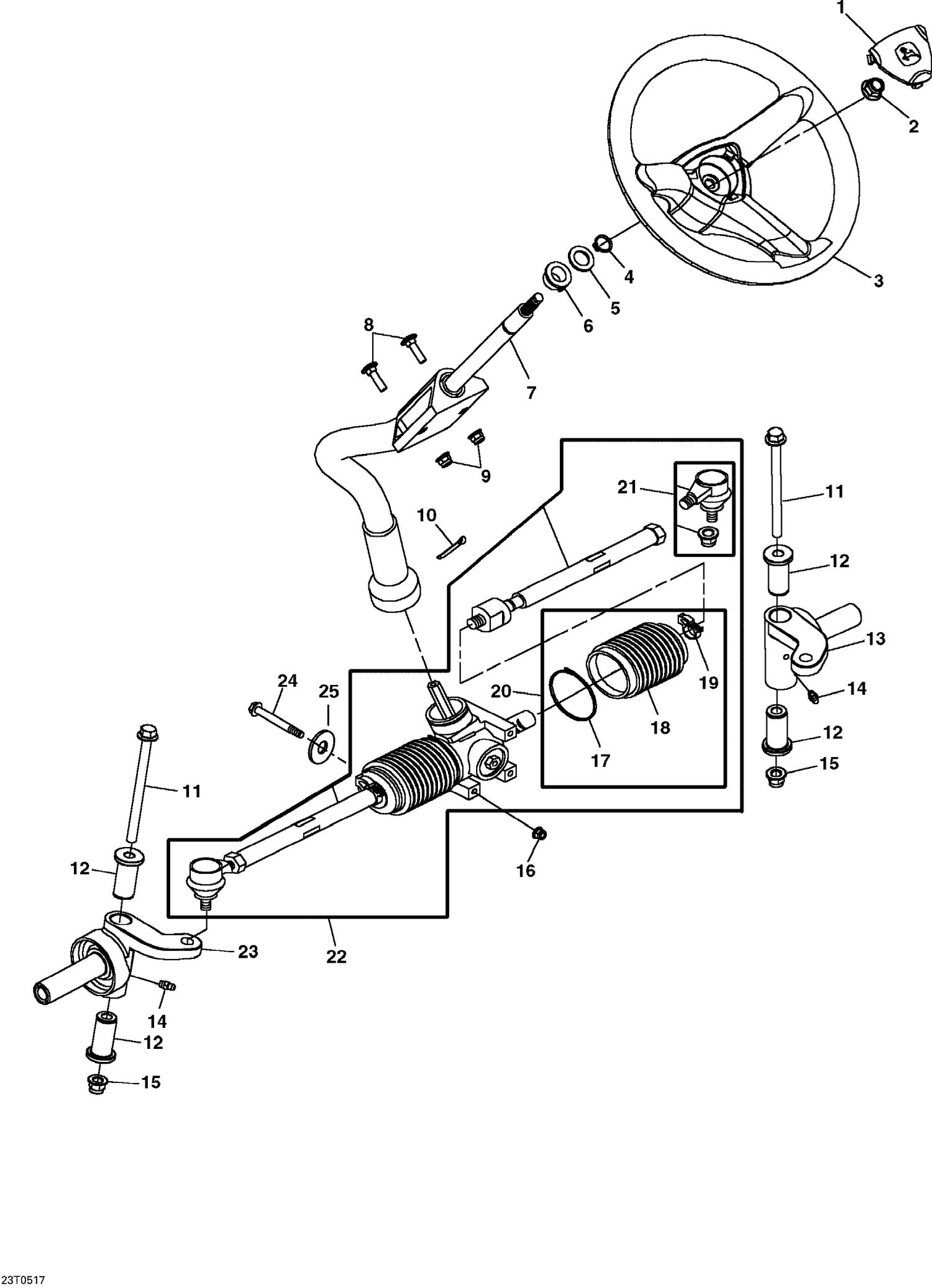

07- Steering System
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | DM151087 | Steering Wheel Cap |
| 2 | D14M7401 | Locknut M12 |
| 3 | DGY20039 | Steering Wheel |
| 4 | DM40514 | Snap Ring |
| 5 | D24H1184 | Washer |
| 6 | DM81463 | Bushing |
| 7 | DVGA10122 | Steering Shaft |
| 8 | D03M7094 | Carriage Bolt |
| 9 | D14M7396 | Nut M8 |
| 10 | D11M7025 | Cotter Pin |
| 11 | D19M7898 | Hex. Bolt M10X130 |
| 12 | DVG11343 | Bushing |
| 13 | DVG10276 | RH Spindle |
| 14 | DJD7844 | Lubrication Fitting |
| 15 | D14M7400 | Locknut M10 |
| 16 | D14M7396 | Nut M8 |
| 17 | Not | Available As Spare Part - Tie Band |
| 18 | Not | Available As Spare Part - Boot |
| 19 | Not | Available As Spare Part - Tie Band |
| 20 | DAM133949 | Boot Kit |
| 21 | DAM133948 | Tie Rod End Kit |
| 22 | DVGA10121 | Steering Gear Ass'y |
| 23 | DVG10277 | LH Spindle |
| 24 | D19M7970 | Hex. Bolt M8X100 |
