Home / BRP / STERN DRIVE / 1998 / 7.40 / 74FHPBYC 1998 / CRANKCASE

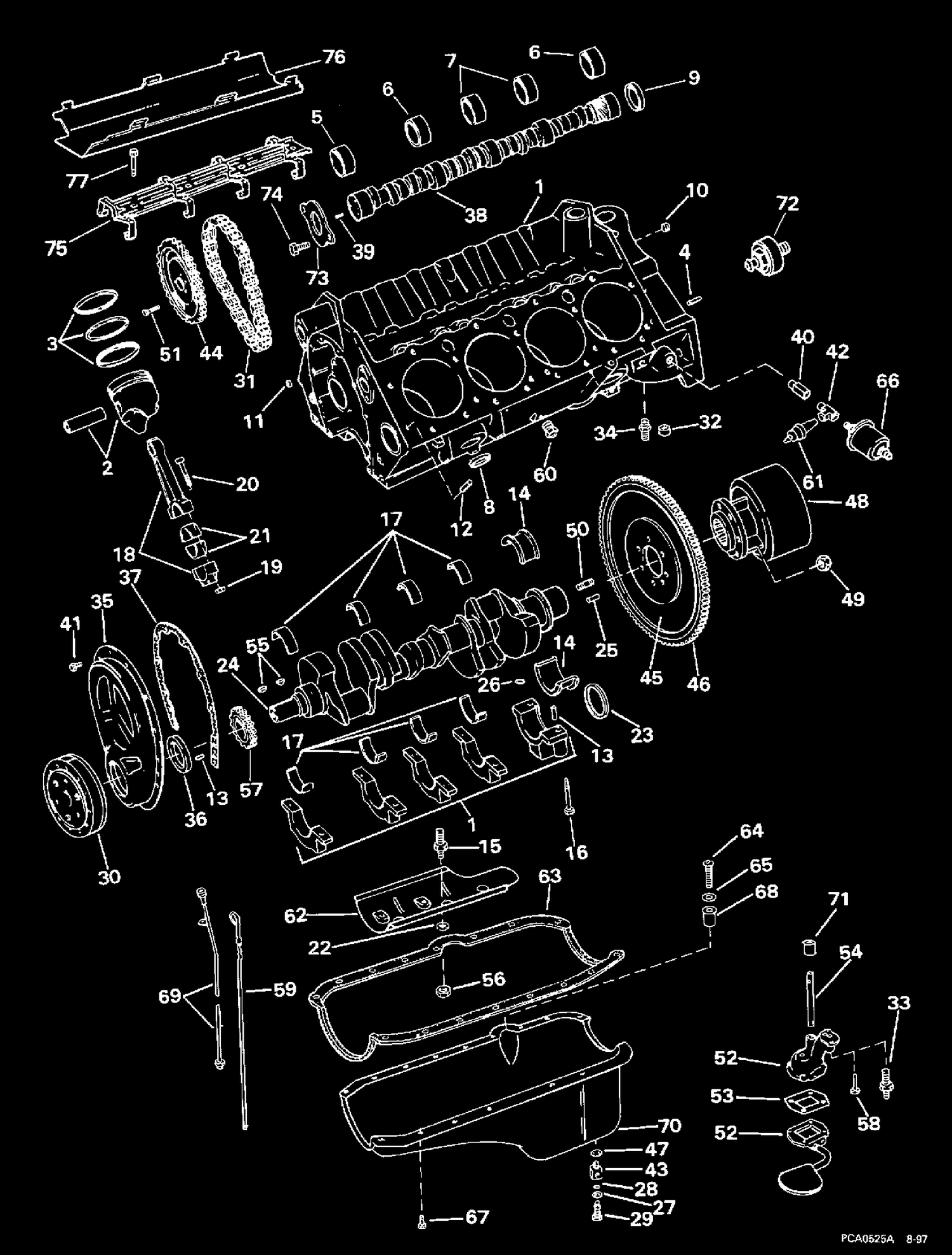

CRANKCASE

CRANKCASE

Parts (96)

RefPart NumberDescription
1 3856026 CRANKCASE ASSY.
1 3856032 CRANKCASE ASSY.
1 CRANKCASE ASSY.
2 3850027 PISTON & RINGS, Standard
2 3850028 PISTON & RINGS, 0.030 O.S.
2 3856023 PISTON & PIN, Standard
2 3856024 PISTON & PIN, 0.005 O.S.
2 3856025 PISTON & PIN, 0.030 O.S.
2 3857481 PISTON & PIN, Standard
2 3857482 PISTON & PIN, 0.030 O.S.
3 3850030 RING SET, Standard
3 3850031 RING SET, 0.030 O.S.
3 3855039 PISTON RING SET, Standard
3 3855040 PISTON RING SET, 0.030 O.S.
3 3855048 PISTON RING SET, 0.005 O.S.
4 3853113 DOWEL PIN
5 3855973 BEARING, Camshaft, #1
6 3855974 BEARING, Camshaft, #2, #5
7 3855975 BEARING, Camshaft, #2, #5
8 0311376 CORE PLUG, Side This part replaces 3852100.
9 3853348 PLUG, Camshaft bearing, rear
10 3852471 PLUG
11 3852471 PLUG
12 3853344 DOWEL PIN, Cylinder head
13 3855972 PIN, Camshaft gear
14 3853541 BEARING ASSY., Rear, standard
15 3855982 STUD, Bearing cap
16 3853500 BOLT, Bearing cap, outer
16 3853501 BOLT, Bearing cap, inner
17 3853542 BEARING, Standard
18 3853355 CONNECTING ROD ASSY.
18 3854079 CONNECTING ROD ASSY.
19 3853148 NUT, Connecting rod
19 3853365 NUT, Rod bolt
20 3853356 BOLT, Connecting rod
20 3853481 BOLT, Connecting rod
21 3855985 BEARING, Rod, standard
22 3853357 WASHER, Oil pan baffle
23 3853528 OIL SEAL, Crankshaft, rear
24 3853509 CRANKSHAFT
24 3853586 CAP,Distributor
24 3855050 CRANKSHAFT
25 3853200 PIN, Flywheel
26 3853538 O-RING, Rear main cap
28 3853674 O-RING, Oil drain
29 3850822 RETAINER, Oil pan drain
30 3853588 DAMPER ASSY.
30 3857474 DAMPER ASSY.
31 3853506 CHAIN, Camshaft timing
32 3854112 ADAPTER & VALVE ASSY.
33 3853359 BOLT, Pump to block
34 0311072 CONNECTOR, Oil adaptor This part replaces 3852097.
35 3855979 COVER, Timing
36 3853360 SEAL, Front cover
37 3853512 GASKET, Front cover
38 3855993 CAMSHAFT ASSY.
38 3856021 CAMSHAFT ASSY.
39 3855972 PIN, Camshaft gear
40 3852465 BUSHING
41 3855997 SCREW, Timing cover
42 3852610 TEE, Oil pressures
43 3855112 FITTING, Oil drain
44 3855981 SPROCKET, Camshaft
45 0987294 FLYWHEEL This part replaces 3854094.
45 3854093 FLYWHEEL
46 3853207 GEAR, Flywheel
47 3851981 GASKET, Fitting to oil pan
48 3853962 COUPLING
49 3853273 LOCKNUT, Coupler
50 3853274 STUD, Coupler
51 3853173 BOLT, Camshaft sprocket
52 3855035 OIL PUMP & SCREEN
53 3853514 GASKET, Oil pump
54 3855976 Shaft 7.4L This part replaces 3853482.
55 3853527 KEY, Woodruff
56 3857664 NUT, Oil pan baffle
57 3856031 SPROCKET, Crankshaft
58 3853359 BOLT, Pump to block
59 3850474 GAUGE, Oil level
60 0909601 PLUG, Manifold This part replaces 3850802.
61 0379948 SCREW, Retainer to adapter This part replaces 3852215.
62 3854090 BAFFLE, Oil pan
63 3853510 GASKET SET, Oil pan
64 3852179 SCREW, Oil pan seal
66 3857532 OIL PRESSURE SENDER
67 3853358 SCREW, Lifter guide
68 3852611 PLUG, Oil pan hole
69 3854657 TUBE ASSY., Oil drain
70 3855990 OIL PAN
71 3853199 RETAINER, Distributor to oil pump
72 3854512 SENSOR, Knock
72 3857478 SENSOR, Knock
73 3855998 RETAINER, Camshaft
74 3853172 BOLT, Balancer retainer
75 3855999 RETAINER, Lifter guide
76 3856027 SHIELD, Intake
