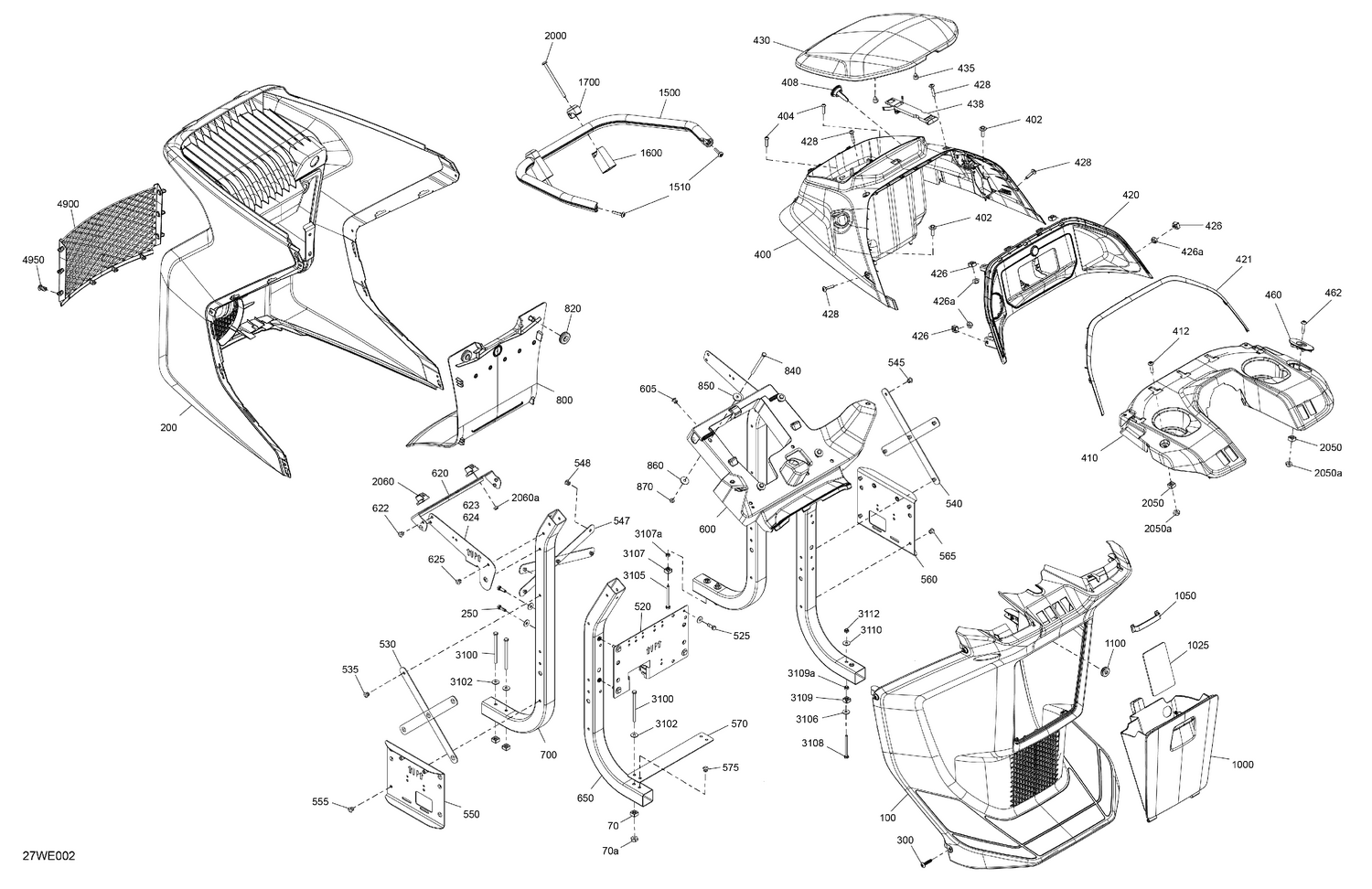

| Ref | Part Number | Description |
|---|
| 70a |
232561200 |
Brass Elastic Stop Nut M6 |
| 100 |
281000001 |
Rear Console Panel |
| 200 |
281000002 |
Front Console Panel |
| 250 |
250000965 |
Hex Screw M6 X 20 |
| 300 |
250000879 |
Plastite Torx Screw M6.81X30 |
| 400 |
281000145 |
Upper Front Console Panel |
| 402 |
250000978 |
Hexagonal Cap Screw M6 X 25 |
| 404 |
250000328 |
Torx Screw M6 X 25, Scotch Grip |
| 408 |
269502324 |
USB Plug |
| 410 |
281000150 |
Upper Rear Console Panel |
| 412 |
250001116 |
Screw-Torx Truss Cone Head M6X25 |
| 420 |
281000152 |
Gauge Support |
| 421 |
281000153 |
Console Trim |
| 426a |
232561200 |
Brass Elastic Stop Nut M6 |
| 428 |
250000924 |
Truss Cone Torx Screw M6 X 30 |
| 430 |
281000147 |
Box Cover |
| 435 |
293830005 |
Rubber Bumper |
| 438 |
281000169 |
Lid Latch |
| 460 |
281000158 |
Cap |
| 462 |
250001116 |
Screw-Torx Truss Cone Head M6X25 |
| 520 |
281000211 |
Rear Reinforcement |
| 525 |
250000965 |
Hex Screw M6 X 20 |
| 530 |
281000058 |
Lateral Reinforcement |
| 535 |
293150284 |
Ornit Rivet 6,4 X 15.6 |
| 540 |
281000058 |
Lateral Reinforcement |
| 545 |
293150284 |
Ornit Rivet 6,4 X 15.6 |
| 547 |
281000058 |
Lateral Reinforcement |
| 548 |
293150284 |
Ornit Rivet 6,4 X 15.6 |
| 550 |
281000123 |
Amplifier Support Ass'y |
| 555 |
293150284 |
Ornit Rivet 6,4 X 15.6 |
| 560 |
281000123 |
Amplifier Support Ass'y |
| 565 |
293150284 |
Ornit Rivet 6,4 X 15.6 |
| 570 |
281000081 |
Rear Lower Reinforcement |
| 575 |
293150284 |
Ornit Rivet 6,4 X 15.6 |
| 600 |
281000060 |
Steering Colum Reinforcement |
| 605 |
293150284 |
Ornit Rivet 6,4 X 15.6 |
| 620 |
281000191 |
Hand Rail Reinforcement |
| 622 |
293150284 |
Ornit Rivet 6,4 X 15.6 |
| 623 |
281000198 |
LH Reinforcement Ass'y |
| 624 |
281000199 |
RH Reinforcement Ass'y |
| 625 |
293150284 |
Ornit Rivet 6,4 X 15.6 |
| 650 |
281000200 |
Rear Tube Support Ass'y |
| 700 |
281000201 |
Front Tube Support Ass'y |
| 800 |
281000000 |
Access Panel |
| 820 |
517303756 |
Grommet |
| 840 |
207169060 |
Hex. Screw M6 X 90 |
| 850 |
250200022 |
Flat Washer M6.6 X 22 |
| 860 |
250200022 |
Flat Washer M6.6 X 22 |
| 870 |
232561200 |
Brass Elastic Stop Nut M6 |
| 1000 |
295101093 |
Storage Box Service Kit |
| 1025 |
281000110 |
Self Adhesive Protective Foam |
| 1050 |
281000155 |
Elastic Strip |
| 1100 |
517307161 |
Grommet |
| 1500 |
281000149 |
Console Hand Rail |
| 1510 |
250001146 |
Cone Torx Truss Screw HD.M6 X 30 |
| 1600 |
281000195 |
Front Lower Hand Rail Anchorage |
| 1700 |
281000048 |
Front Upper Hand Rail Anchorage |
| 2000 |
250001163 |
Cone Torx Truss Screw HD.M6 X 100 |
| 2050a |
232561200 |
Brass Elastic Stop Nut M6 |
| 2060a |
232561200 |
Brass Elastic Stop Nut M6 |
| 3100 |
207169060 |
Hex. Screw M6 X 90 |
| 3102 |
234062600 |
Flat Washer M6, Stainless |
| 3105 |
207166560 |
Hex. Screw M6 X 65 |
| 3106 |
234062600 |
Flat Washer M6, Stainless |
| 3107a |
232561200 |
Brass Elastic Stop Nut M6 |
| 3108 |
207166560 |
Hex. Screw M6 X 65 |
| 3109a |
232561200 |
Brass Elastic Stop Nut M6 |
| 3110 |
234062600 |
Flat Washer M6, Stainless |
| 3112 |
232561200 |
Brass Elastic Stop Nut M6 |
| 4900 |
281000156 |
Net Ass'y |
