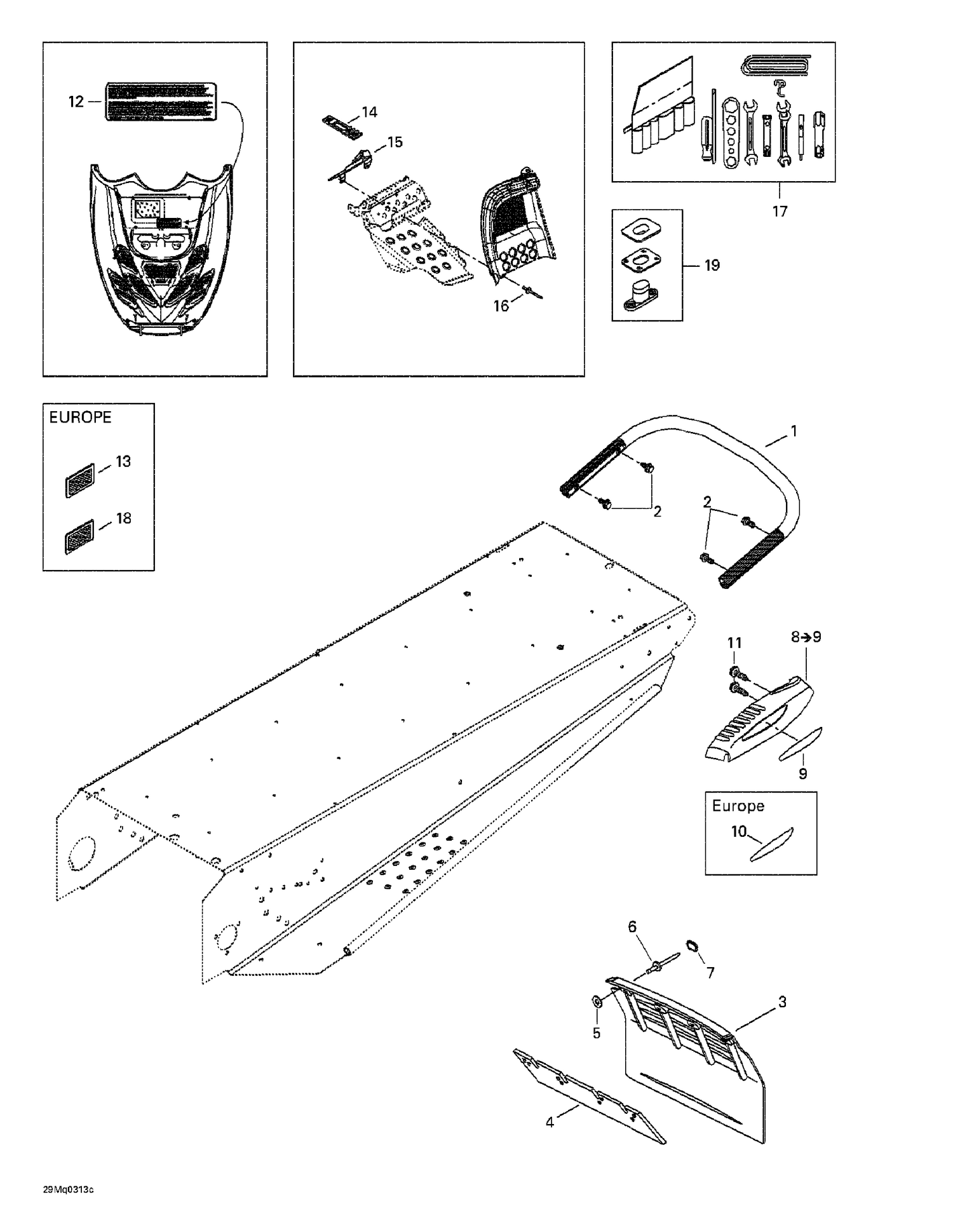

| Ref | Part Number | Description |
|---|
| 1 |
518322708 |
REAR BUMPER - Call your local BRP dealership |
| 2 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 3 |
572103804 |
Snow Guard |
| 4 |
572108200 |
REINFORCEMENT - Call your local BRP dealership |
| 5 |
517225900 |
Flat Washer |
| 6 |
293150087 |
Pop Rivet 3/16” This part replaces 293150087. |
| 7 |
415073300 |
Cap |
| 9 |
516000237 |
RH Reflector, Red |
| 10 |
516000241 |
RH Reflector, Yellow, Europe |
| 11 |
243141630 |
Hex. Plastic Screw M4.8 X 16 This part replaces 243141640. |
| 12 |
516001681 |
Pending Label |
| 13 |
520000271 |
Amber, Reflector |
| 14 |
570069700 |
LATCH - Call your local BRP dealership |
| 15 |
518321999 |
Tool Kit Support |
| 16 |
293150103 |
Pop Rivet 3/16" |
| 17 |
529035881 |
Tool Kit |
| 18 |
415037900 |
White, Reflector |
| 516000238 |
LH |
Reflector, Red 516000238 |
| 516000238 |
Réflecteur |
GA, Rouge 516000238 |
| 516000242 |
LH |
Reflector, Yellow, Europe 516000242 |
| 516000242 |
Réflecteur |
GA, Jaune, Europe 516000242 |
| 517243800 |
Pare-Chocs |
Arrière 517243800 |
| 517243800 |
Rear |
Bumper 517243800 |
| 520000073 |
Snow |
Guard (Europe) 520000073 |
| 861779400 |
Enjoliveur |
GA 861779400 |
| 861779400 |
LH |
Moulding 861779400 |
