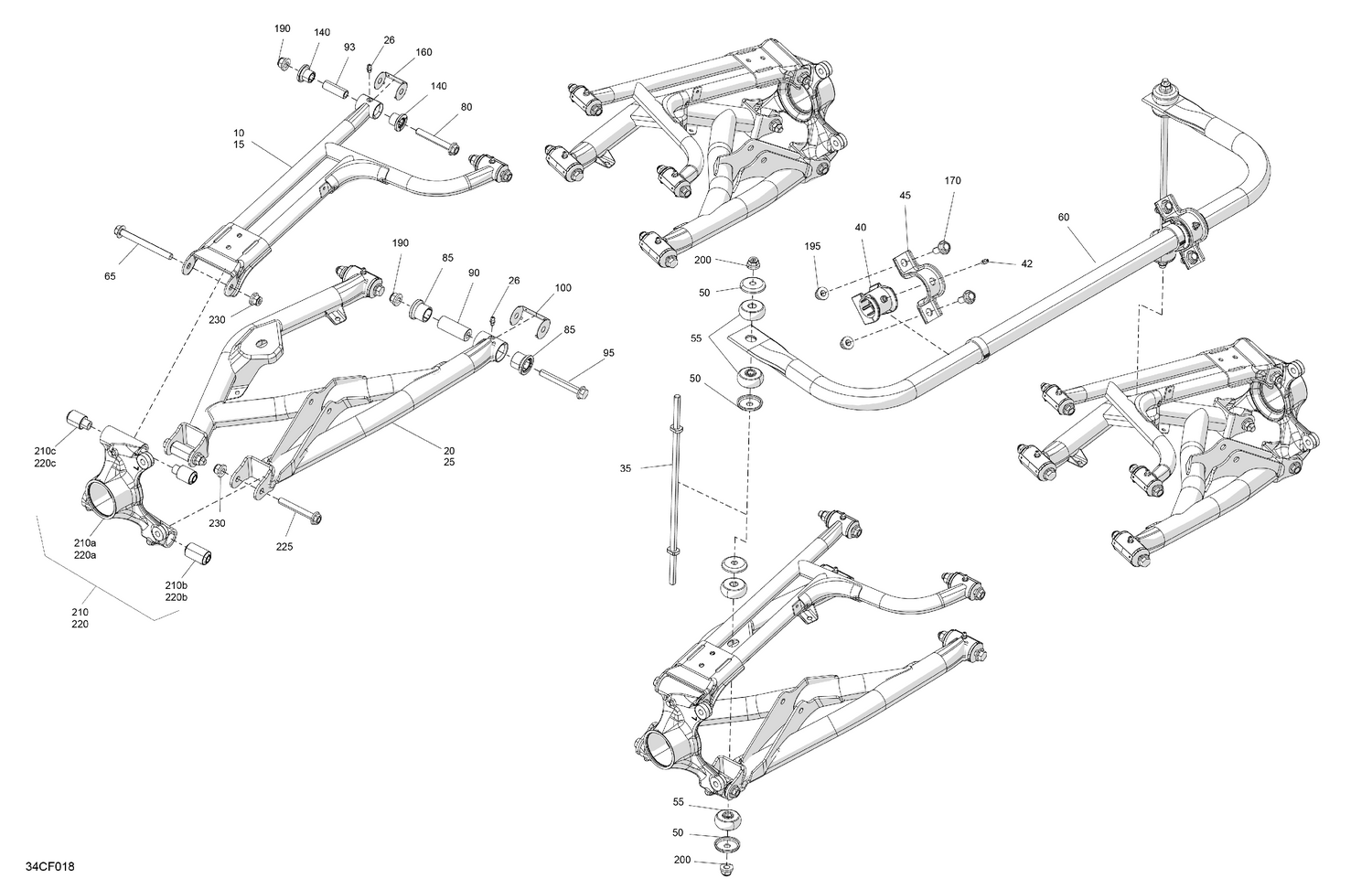

05- Suspension - Rear Components
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 706004312 | Deep Black, LH Upper Rear Suspension Arm |
| 15 | 706004313 | Deep Black, RH Upper Rear Suspension Arm |
| 20 | 706004577 | Deep Black, LH Lower Suspension Arm |
| 25 | 706004578 | Deep Black, RH Lower Suspension Arm |
| 26 | 408200700 | Grease Fitting |
| 35 | 706001898 | Torsion Bar Link |
| 40 | 706004301 | Stabilizer Bar Bushing |
| 42 | 408200700 | Grease Fitting |
| 45 | 706002592 | Clamp |
| 50 | 706005431 | Stamped Washer |
| 55 | 706002028 | Linkage Bushing |
| 60 | 706002813 | Swaybar Ass'y |
| 65 | 230500046 | Hex. Screw M10 X 100, Scotch Grip |
| 80 | 207607046 | Hex. Flange Screw M10 X 70 |
| 85 | 706206653 | Deep Black, RH Rear Suspension Arm |
| 90 | 706201590 | Sleeve |
| 93 | 703500875 | Suspension Arm Bushing Kit |
| 95 | 207608046 | Hex Flange Screw M10 X 80 |
| 100 | 706201660 | Wear Plate |
| 140 | 703500875 | Suspension Arm Bushing Kit |
| 160 | 703500875 | Suspension Arm Bushing Kit |
| 170 | 207602544 | Hex. Flange Screw M10 X 25 |
| 190 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 195 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 200 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 210a | XXX | Not Available As Spare Parts |
| 210b | 706006099 | Suspension Arm Bushing |
| 210c | 706006100 | Suspension Arm Bushing |
| 220a | XXX | Not Available As Spare Parts |
| 220b | 706006099 | Suspension Arm Bushing |
| 220c | 706006100 | Suspension Arm Bushing |
| 225 | 207507046 | Hex. Screw M10 X 70, Scotch Grip |
