Parts Catalog

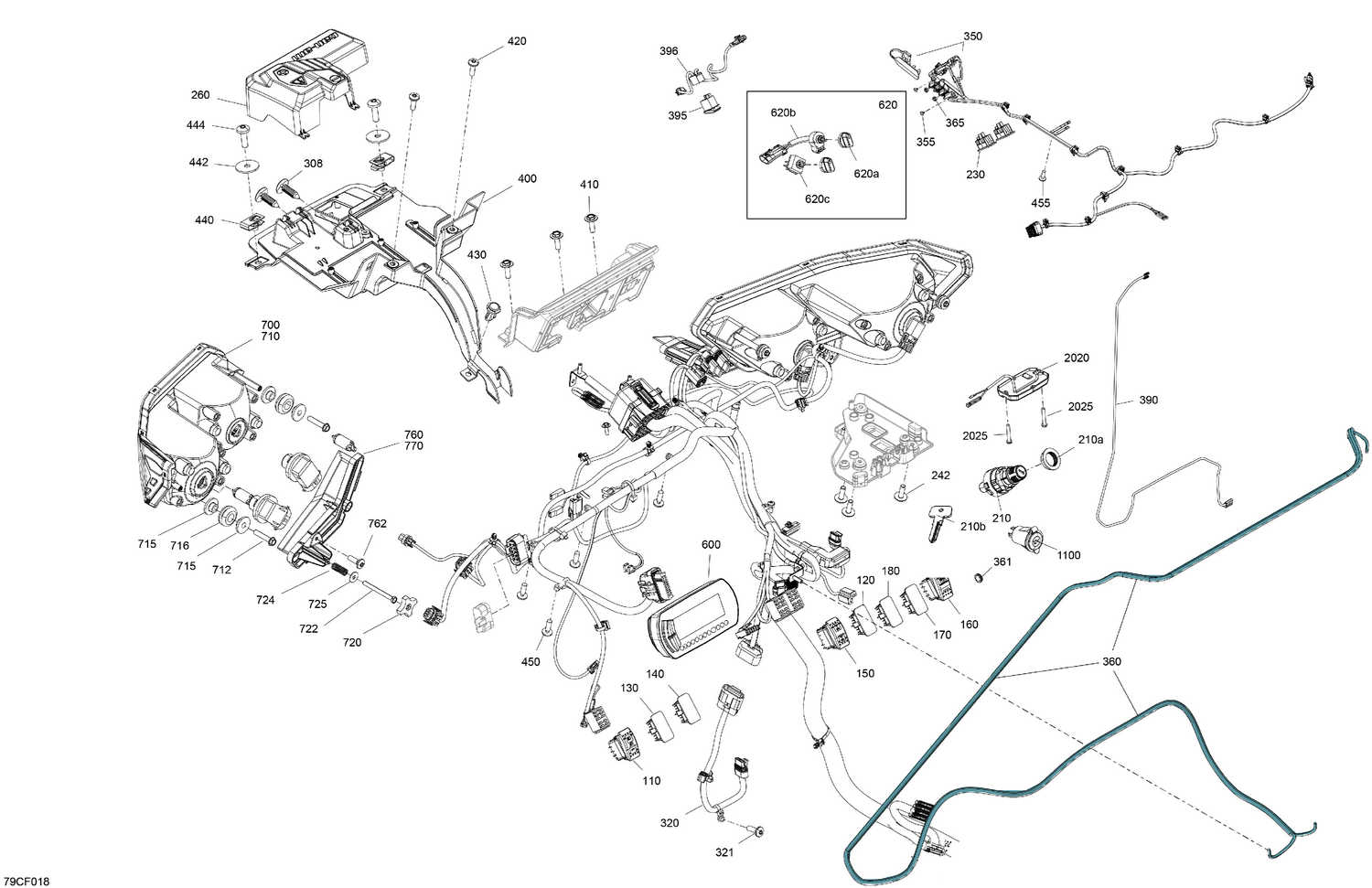

08- Electric - Front Section

Parts (49)

Ref	Part Number	Description
110	710004492	Light Switch
120	710007173	Plug Carling
130	710007173	Plug Carling
140	710007173	Plug Carling
150	710005489	Switch 2X4
160	710005470	Differential Lock Switch
170	710007173	Plug Carling
180	710007173	Plug Carling
210a	710007923	Specialized Nut
210b	715900934	Blank Ignition Key
230	710007173	Plug Carling
242	250000959	Screw PT Type K-50 X 16
260	710006707	Junction Block Cover
308	293730006	Black, Dart
320	710006837	Throttle Pedal Harness
321	250000720	Torx Screw K50 X 16
350	710004462	Window/Wiper Harness
355	293150092	Pop Rivet 3/16”
361	710002743	Boot
365	232561200	Brass Elastic Stop Nut M6
390	710004466	Wiper Harness
395	710004941	Wiper Switch
396	710004942	Wiper Harness
400	710006649	Wiring Harness Support
410	250000959	Screw PT Type K-50 X 16
420	250000720	Torx Screw K50 X 16
430	293150230	Tuflok Plastic Rivet
440	250100198	Panel Nut M6 X 1.0
442	250200029	Washer M6
444	250000712	Torx Screw M6 X 20
450	250000959	Screw PT Type K-50 X 16
455	250000720	Torx Screw K50 X 16
600	710008296	Multifunction Compact Gauge
620a	XXX	Not Available As Spare Parts
620b	XXX	Not Available As Spare Parts
620c	XXX	Not Available As Spare Parts
700	710011586	LH Front Headlight
710	710011587	RH Front Headlight
712	241152540	Hex. Flange Screw K50 X 2.24 X 25
715	710004749	Shoulder Bushing
716	293720130	Overmolded Grommet
720	572106600	Handle
722	250000718	Hex. Screw K40 X 45
724	517168600	Spring
725	234042600	Flat Washer 4 mm, Stainless
760	710008973	Deep Black, LH Front Headlight Trim
762	250000959	Screw PT Type K-50 X 16
770	710008974	Deep Black, RH Front Headlight Trim
2020	715002455	Dome Light
