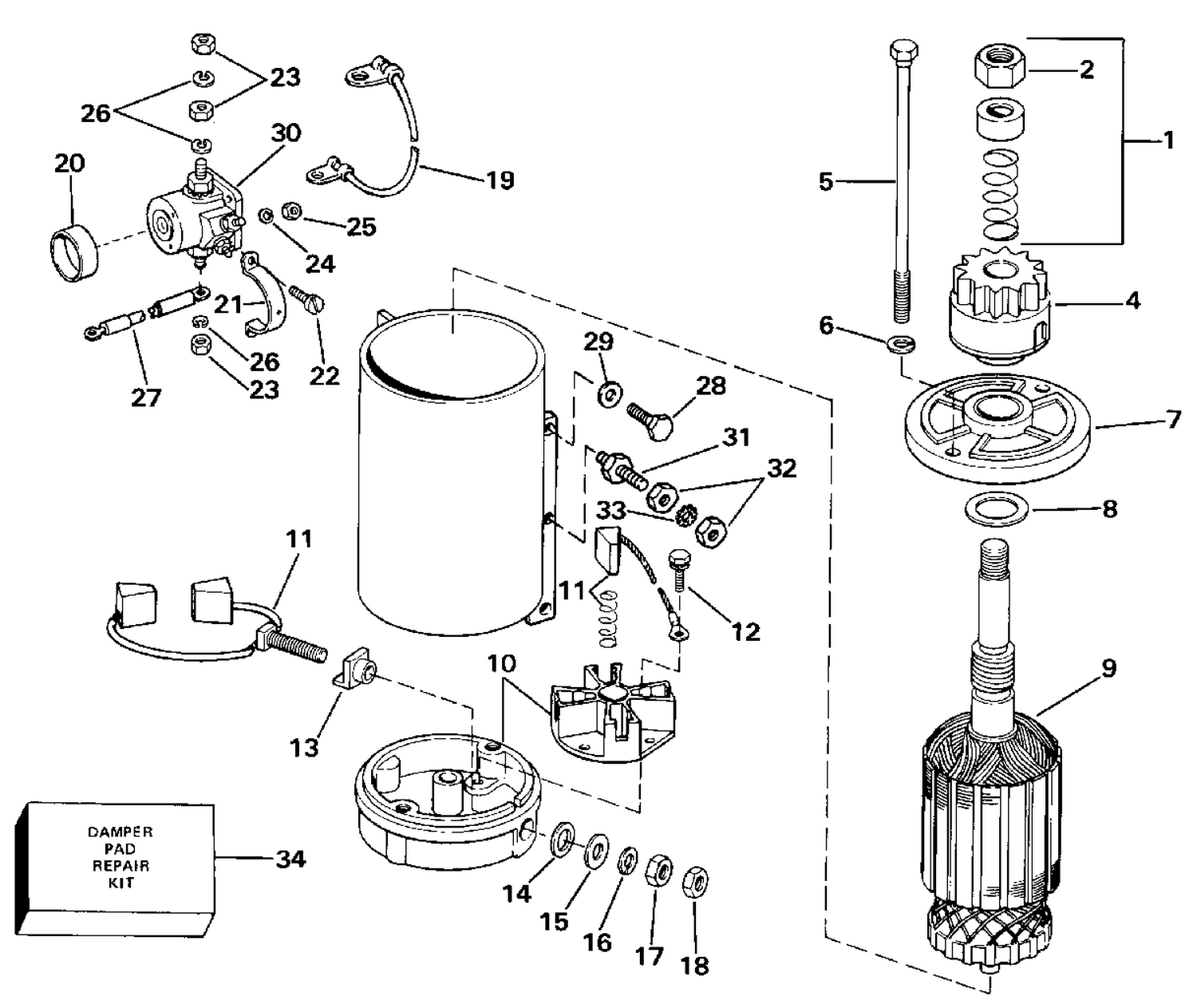

ELECTRIC STARTER & SOLENOID AMERICAN BOSCH 08142-23-MO30SM
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0393285 | NUT SPRING & SPACER |
| 2 | 0393354 | NUT SPRING & SPACER KIT This part replaces 0316740. |
| 4 | 0387683 | DRIVE ASSY |
| 5 | 0387938 | THRU BOLT PKG |
| 6 | 0321568 | LOCKWASHER |
| 9 | 0387682 | ARMATURE |
| 10 | 0386645 | CAP ASSY ., Commutator |
| 12 | 0387680 | BOLT |
| 17 | 0387678 | NUT AND WASHER |
| 19 | 0580733 | FIL, masse solénoïde |
| 20 | 0311217 | MANCHON, solénoïde |
| 21 | 0330112 | BRIDE, solénoïde vers démarreur |
| 22 | 0319292 | SCREW, Clamp |
| 0395207 | 0395207 | ELECTRIC STARTER ASSY. |
