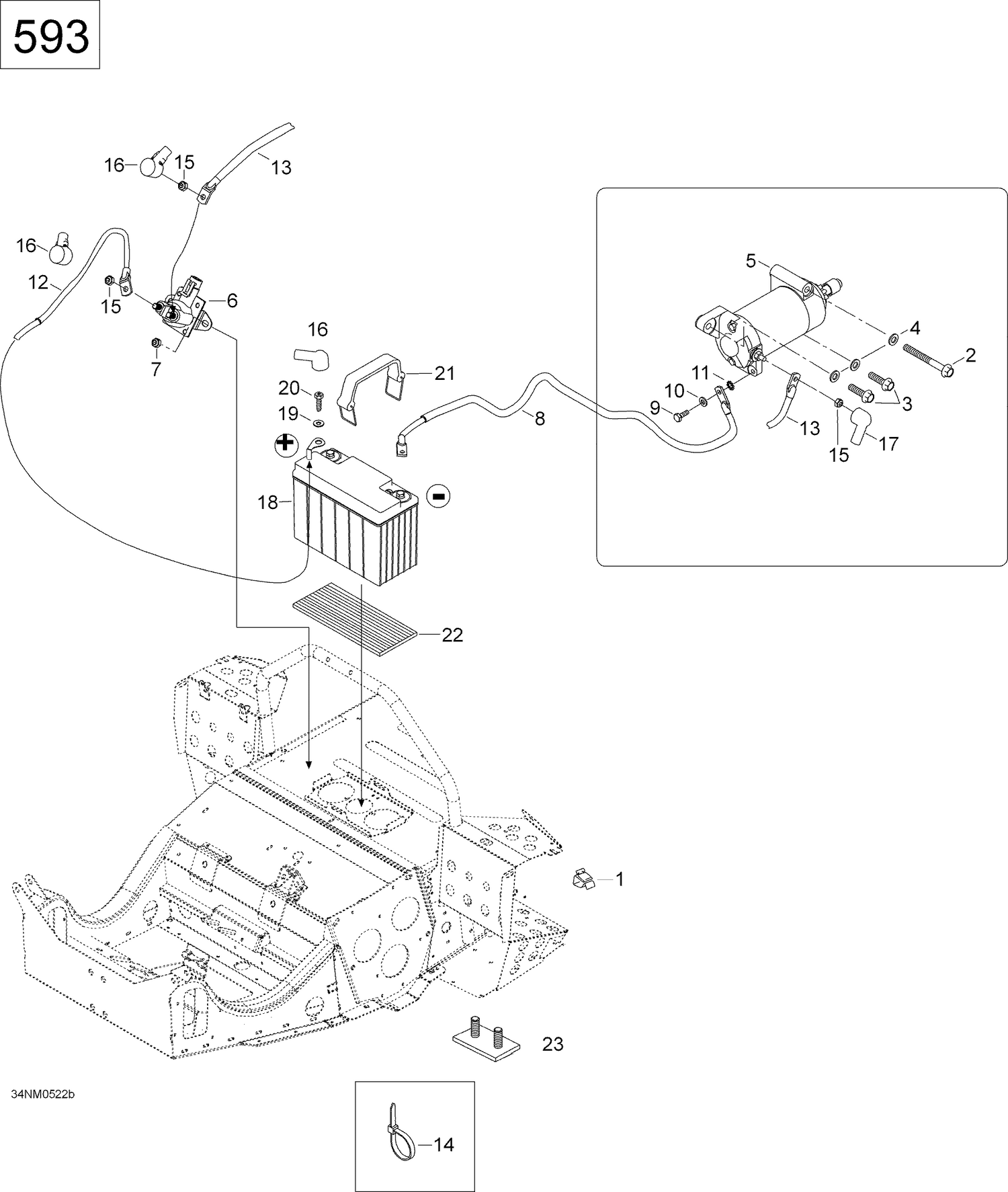

| Ref | Part Number | Description |
|---|
| 1 |
414227300 |
Clip |
| 2 |
207587544 |
Hex. Flange Screw M8 X 75, Scotch Grip |
| 3 |
207583044 |
Hex. Flange Screw M8 X 30, Scotch Grip |
| 4 |
250200008 |
Flat Washer With Teflon 8 mm |
| 5 |
515176133 |
Electric start This part replaces 515176003. |
| 6 |
278003012 |
Starter Relay This part replaces 278001802. |
| 7 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 8 |
5446597 |
Ground wire |
| 9 |
207361644 |
Hex. screw M6 x 16 |
| 10 |
20003 |
Washer A6,4 |
| 11 |
20017 |
Serrated lock washer M6 |
| 12 |
5348359 |
BATTERY WIRE - Call your local BRP dealership |
| 14 |
293750008 |
Tie-Rap 368 mm This part replaces 27100. |
| 15 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 16 |
570151000 |
Cap protection |
| 17 |
278001771 |
PROTECTOR CAP - Call your local BRP dealership |
| 19 |
391302100 |
FLAT WASHER - Call your local BRP dealership |
| 20 |
207161644 |
Screw |
| 21 |
515176044 |
Retainer strap This part replaces 515175475. |
| 22 |
605350237 |
BATTERY CARPET - Call your local BRP dealership |
