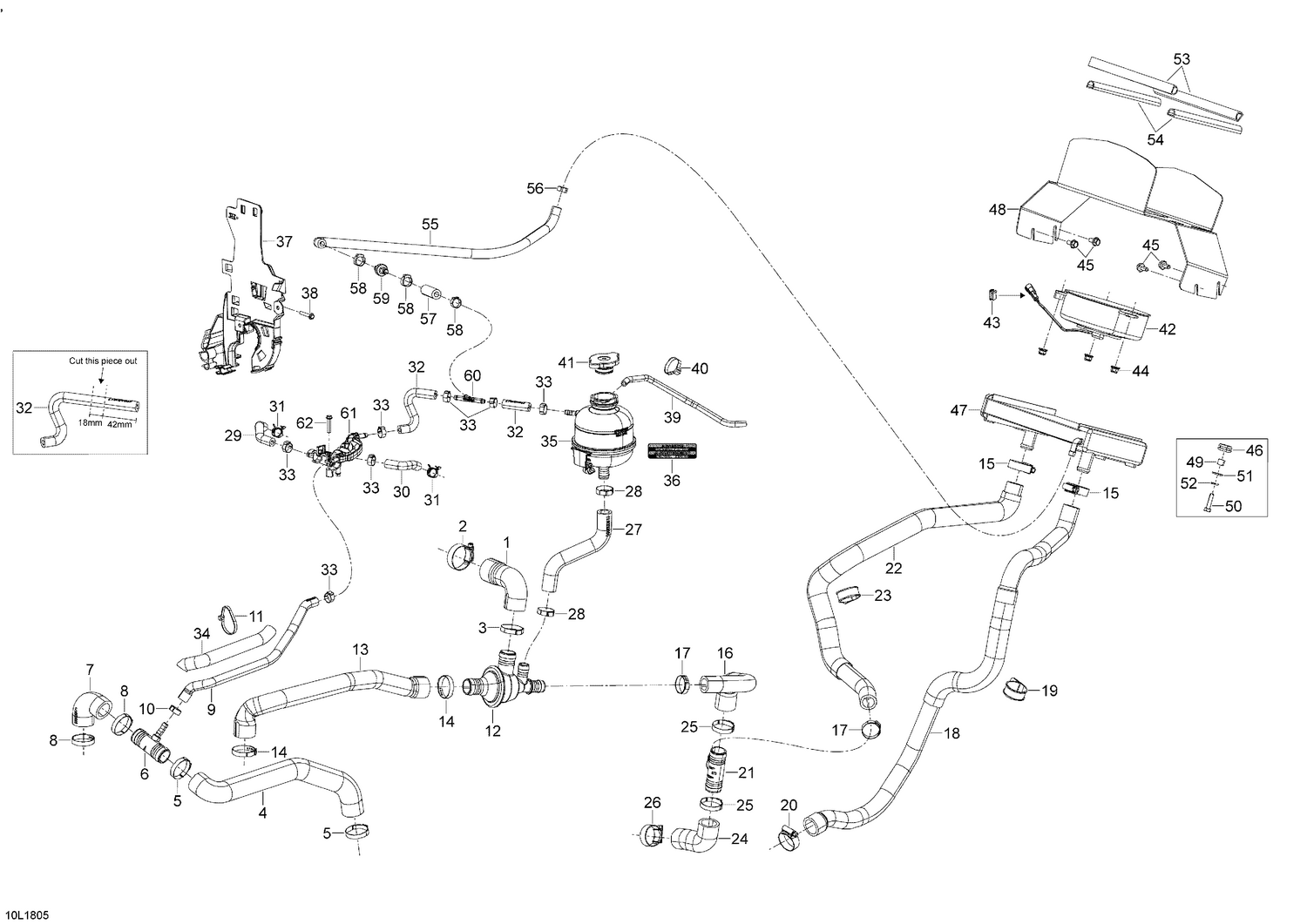

| Ref | Part Number | Description |
|---|
| 1 |
509000678 |
Hose, Engine Outlet |
| 2 |
509000443 |
Aba Gear Clamp, 26-38 MM |
| 3 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 4 |
509000670 |
Radiator Hose |
| 5 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 6 |
509000510 |
T-Fitting |
| 7 |
509001066 |
Radiator Hose |
| 8 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 9 |
509000906 |
Breather Hose |
| 10 |
293650047 |
Crimp Clamp, 15.3-706R |
| 11 |
414115200 |
Tie-Rap 180 mm |
| 12 |
509000499 |
Thermostat Housing (Incl. Thermostat, 37 Deg.) |
| 13 |
509000679 |
Thermostat Outlet Hose |
| 14 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 15 |
509000443 |
Aba Gear Clamp, 26-38 MM |
| 16 |
509000923 |
Bypass Cooling Hose |
| 17 |
293650099 |
Oetiker Gear Clamp |
| 18 |
509000926 |
Front Radiator Hose |
| 19 |
27011 |
Clamp with rubber |
| 20 |
509000443 |
Aba Gear Clamp, 26-38 MM |
| 21 |
509000372 |
T-Fitting |
| 22 |
509000927 |
Hose Junction-radiator |
| 23 |
27011 |
Clamp with rubber |
| 24 |
509000924 |
Engine Inlet Hose 600 |
| 25 |
509000181 |
Oetiker Gear Clamp |
| 26 |
509000443 |
Aba Gear Clamp, 26-38 MM |
| 27 |
509000812 |
Filling Hose |
| 28 |
509000442 |
Oeticker Gear Clamp, 25.6-706R |
| 29 |
509000818 |
Bleeder Hose |
| 30 |
509000819 |
Bleeder Hose |
| 31 |
293650170 |
Tridon Gear Clamp |
| 32 |
509000817 |
HOSE - Call your local BRP dealership |
| 33 |
293650046 |
Oetiker Clamp |
| 34 |
415080000 |
Gaine Protectrice 16 mm (1 mètre/pac) |
| 35 |
509000802 |
Coolant Tank |
| 36 |
516005904 |
Warning Decal |
| 37 |
509000973 |
TANK-SUPPORT - Call your local BRP dealership |
| 38 |
241152540 |
Hex. Flanged Screw K50 X 2.24 X 25 |
| 39 |
276000048 |
Polyurethane Hose 5.2 mm |
| 40 |
414115200 |
Tie-Rap 180 mm |
| 41 |
509000180 |
Radiator Pressure Cap |
| 42 |
509000837 |
COOLING FAN |
| 43 |
710000992 |
Clip |
| 44 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 45 |
207661244 |
Hex. Flange Screw M6 X 12 |
| 46 |
709000582 |
Grommet This part replaces 293720053. |
| 47 |
509000756 |
Radiator |
| 49 |
605453745 |
Bushing |
| 50 |
207162044 |
Hex. locking screw M6 x 20 |
| 51 |
234062410 |
Flat Washer 6 mm |
| 52 |
234161431 |
Spring Washer |
| 53 |
509000823 |
D- SEAL 12 X15 |
| 54 |
509000824 |
D- SEAL 12 X15 |
| 55 |
509000407 |
Hose 8 mm |
| 56 |
293650140 |
Oetiker Clamp |
| 57 |
509000407 |
Hose 8 mm |
| 58 |
293650140 |
Oetiker Clamp |
| 59 |
509000153 |
Takaiskuventtiili |
| 61 |
509000803 |
Bleed Collector |
