| Ref | Part Number | Description |
|---|
| COM |
710002705 |
Lock |
| COM |
710002706 |
Female Housing, 6 Circuits |
| COM |
710005438 |
Female Terminal |
| COM |
710005439 |
Female Terminal |
| ECMB |
710001589 |
Female Terminal |
| ECMB |
710001590 |
Female Terminal |
| ECMB |
710001591 |
Cover, 48 positions |
| ECMB |
710001592 |
Plug |
| ECMB |
710001727 |
Female Terminal |
| EGTS |
515178013 |
Male Terminal |
| F1 |
710000742 |
Little Fuse, 5 Ampere |
| F2 |
278002389 |
Little Fuse, 25 Ampere |
| F4 |
710000745 |
Little Fuse, 15 Ampere |
| FB |
278000218 |
Wire Seal |
| FB |
278001065 |
Wire Seal |
| FB |
515178001 |
Fuse Box |
| FB |
515178132 |
Fuse Box Cover |
| FB |
515178139 |
Female Terminal |
| FB |
515178194 |
Foam |
| FB |
515178541 |
Decal Fuses |
| FB |
710000048 |
Wire Seal |
| FB |
710000992 |
Clip |
| FP |
515178018 |
Female Terminal |
| FP |
515178474 |
Female Housing |
| GND |
278001392 |
Open Barrel Terminal |
| HL1 |
515178006 |
Female Housing |
| HL1 |
710001228 |
Terminal |
| HL1 |
710001332 |
Seal Wire |
| HL2 |
515178006 |
Female Housing |
| HL2 |
710001228 |
Terminal |
| HL2 |
710001332 |
Seal Wire |
| MAPTS |
415128501 |
Seal |
| MAPTS |
515176410 |
Male Connector |
| MAPTS |
710001137 |
Female Terminal |
| MG |
278002858 |
Female Housing 20 Circuits |
| MG |
278002860 |
Sealing Cap |
| MG |
515178014 |
Female Terminal |
| MG |
515178018 |
Female Terminal |
| RFID |
710001161 |
Housing |
| RFID |
710001163 |
Wire Seal |
| RFID |
710001164 |
Female Terminal |
| SD |
515177192 |
Female Housing, 2 Circuits |
| SD |
710000925 |
Terminal |
| SD |
710001332 |
Seal Wire |
| SH |
515178013 |
Male Terminal |
| TL |
515178014 |
Female Terminal |
| TL |
515178018 |
Female Terminal |
| TL |
515178346 |
Female Housing Connector 4 Pins W/O CPA |
| VSS |
515178024 |
Housing |
| 1 |
0435430 |
EXHAUST HOUSING ASSY. |
| 7 |
0342540 |
SCREW, Exhaust housing to ext. |
| 9 |
0437894 |
MOUNT ASSY., Upper |
| 10 |
0329021 |
MOUNT BRACKET, Lower port |
| 11 |
0329020 |
MOUNT BRACKET, Lower, stbd |
| 12 |
0330440 |
EXHAUST TUBE, Inner |
| 13 |
0339734 |
THRUST MOUNT, Upper |
| 14 |
0319229 |
GROMMET, Exh, hsg, to shift rod |
| 15 |
0342541 |
PLATE, Upper mount |
| 16 |
0395125 |
TUBE, Water outlet |
| 18 |
0395122 |
WATER TUBE & GROMMET, Inlet, std. |
| 18 |
0395123 |
EATER TUBE, Long |
| 20 |
0329046 |
THRUST MOUNT |
| 21 |
0325721 |
GASKET, Cyl. & c'case to lower engine cover |
| 22 |
0339809 |
SCREW, Outer exh. hsg. to powerhead, long |
| 23 |
0339666 |
COVER, Upper mount |
| 25 |
0319042 |
SCREW BRACKET AND CLAMPSCREW ASSY., Port |
| 27 |
0318997 |
LATERAL MOUNT, Lower |
| 28 |
0339676 |
O-RING, Cover |
| 30 |
0329241 |
RONDELLE |

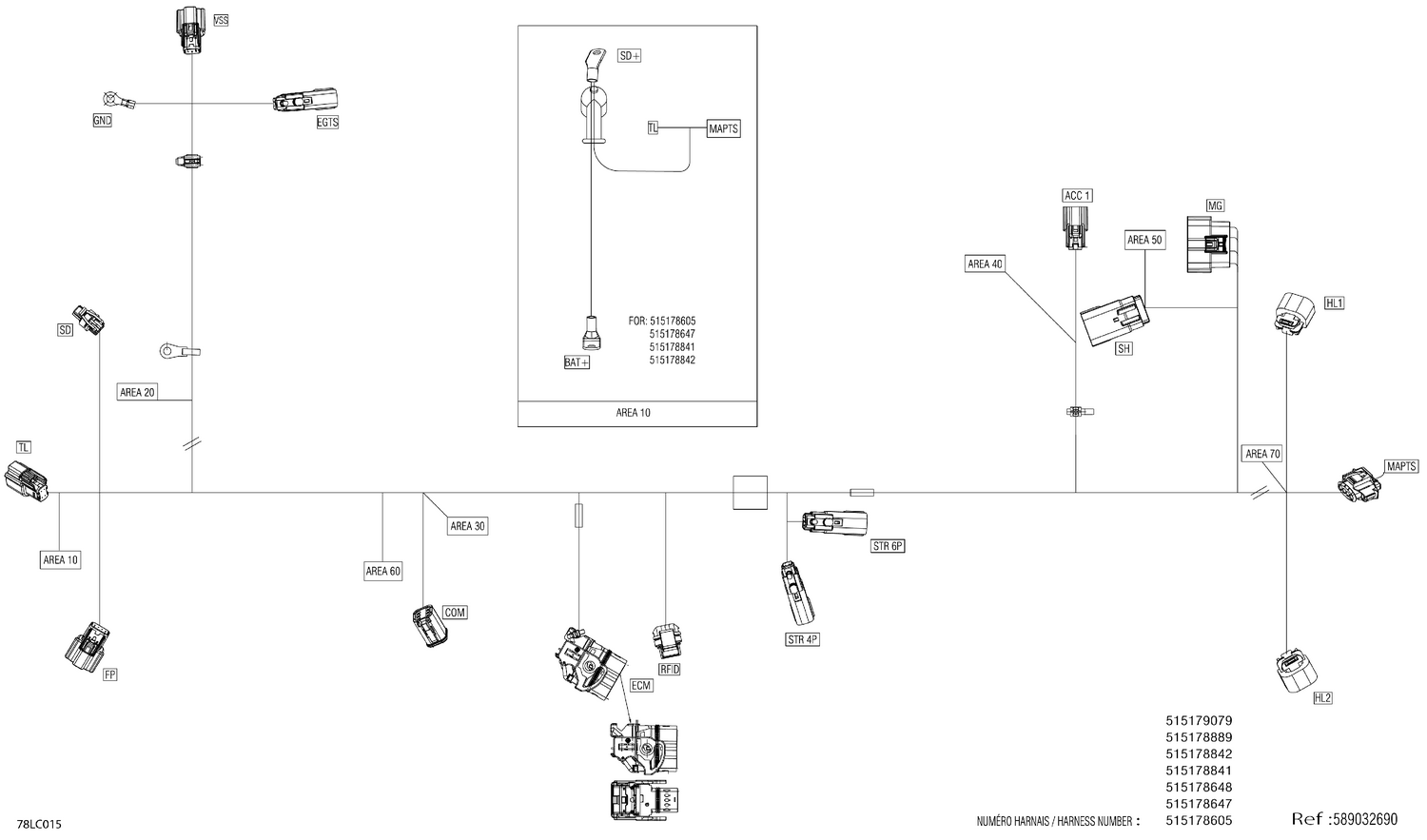

| 3000 |
515178889 |
Chassis Wiring Harness |
