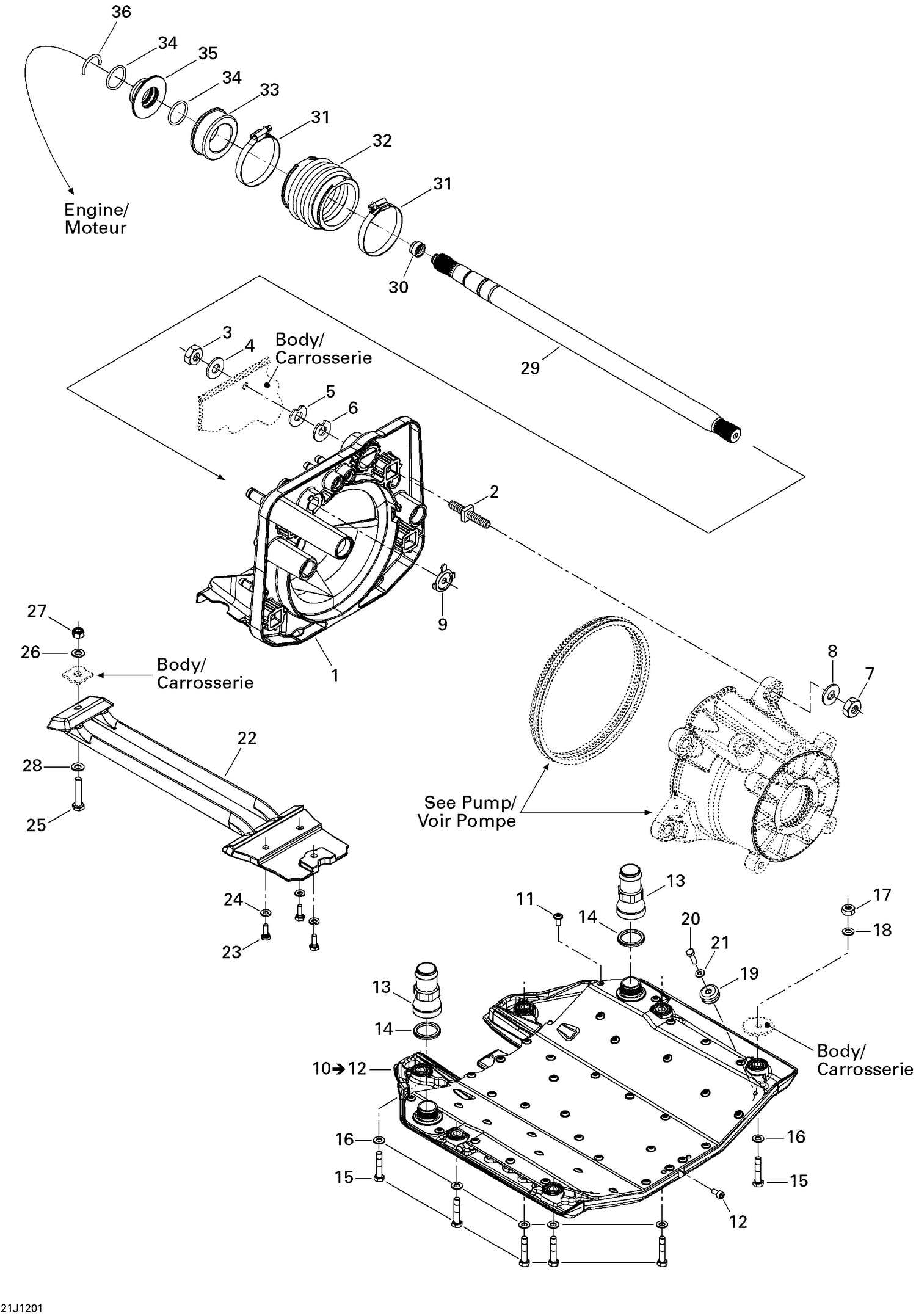

05- Propulsion — Parts Catalog

Ref	Part Number	Description
1	204120314	PUMP SUPPORT - Call your local BRP dealership
2	250300022	Square Stud
3	232501200	Elastic Stop Nut M10, Brass
4	234002600	Flat Washer 10 mm, Stainless
5	272000053	Shim 0.3 mm
6	0460011	NEEDS DESCRIPTION This part replaces 204120067.
7	232501200	Elastic Stop Nut M10, Brass
8	211200051	Flat Washer
9	291004649	Reducer This part replaces 291001887.
11	250000064	Torx Button Head Screw M6 X 14
12	250500005	Socket Drain Plug M6 X 12
13	293710111	Straight Plastic Fitting
14	293300121	O-Ring
15	207084060	Hex. Screw M8 X 40
16	234081600	Stainless, Flat Washer 8 mm
17	232581600	Hex. Elastic Nut M8
18	234082600	Flat Washer 8 mm, Stainless
19	271001813	Anode Zinc
20	207362060	Hex. Screw M6 X 20, Scotch Grip
21	234061600	Stainless Flat Washer M6
22	271001561	PUMP GRATE - Call your local BRP dealership
23	207161660	Hex. Screw M6 X 16
24	234061600	Stainless Flat Washer M6
25	207184060	Hex. Screw M8 X 40
26	234081600	Stainless, Flat Washer 8 mm
27	232581600	Hex. Elastic Nut M8
28	234081600	Stainless, Flat Washer 8 mm
29	271001724	Drive Shaft This part replaces 271001534.
30	272000173	Drive Shaft Plug
31	293650077	Norma Clamp
32	272000183	Bellows
33	295501200	Carbon Ring Kit This part replaces 272000177.
34	293300044	O-Ring
35	295501200	Carbon Ring Kit This part replaces 272000176.
