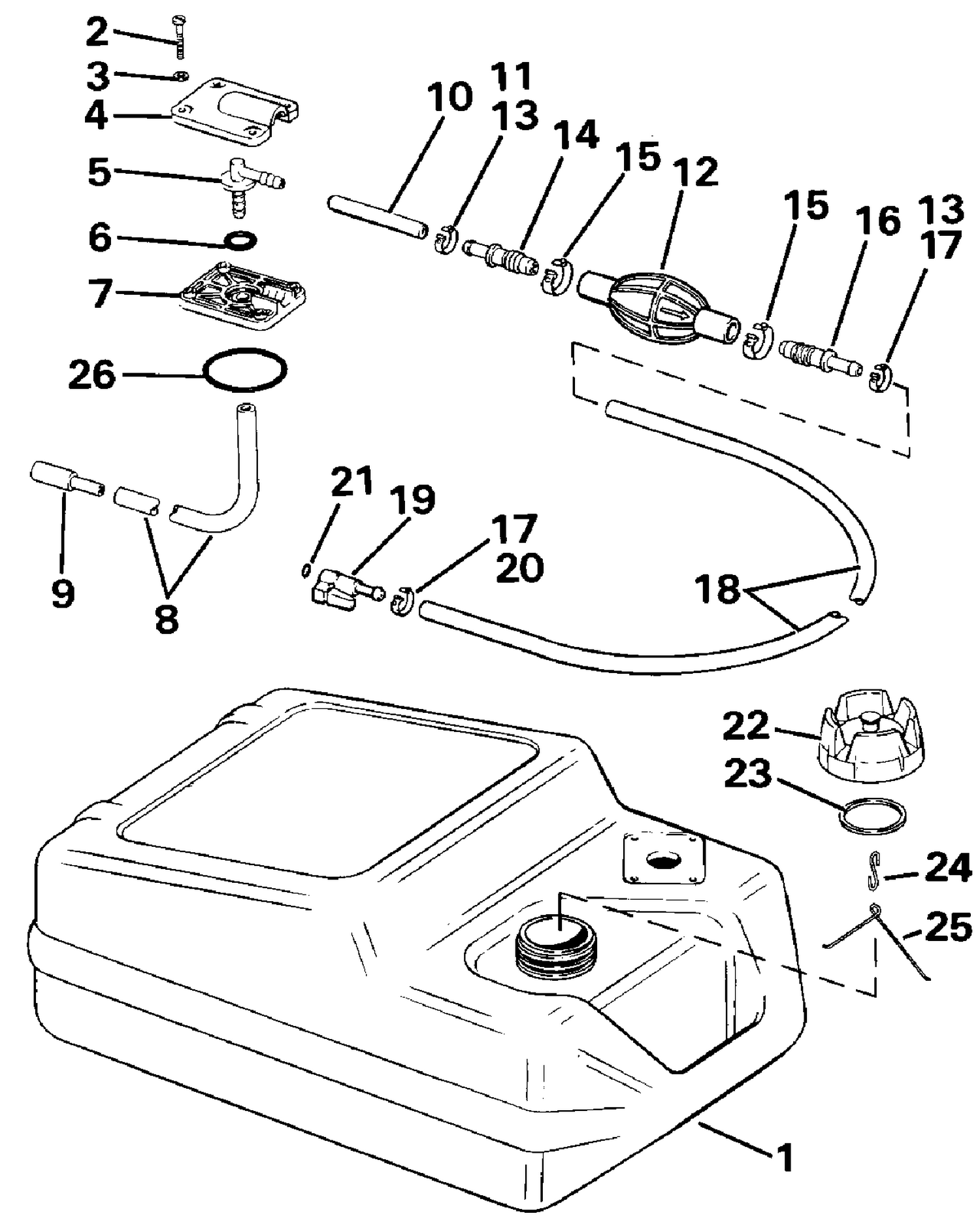

FUEL TANK
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0173339 | FUEL TANK |
| 2 | 0330336 | SCREW |
| 4 | 0123238 | COVER Fuel outlet to tank |
| 5 | 0123232 | ELBOW |
| 6 | 0123528 | O-RING |
| 7 | 0123234 | BASE, Fuel outlet |
| 8 | HOSE, | Fuel pickup, 18 1/2 in. (470mm) long |
| 9 | 0173637 | FUEL PICKUP |
| 10 | 0328787 | CLAMP, Hose, small |
| 18 | HOSE, | Long, 99 in. (2515mm) |
| 20 | 0322654 | PINCE RAPIDE, flexible d'huile |
| 22 | 0173341 | CAP ASSY., Fuel tank |
| 0174537 | 0174537 | FUEL CONN. HOSE & BULB ASSY. |
| 0174547 | 5008623 | FUEL TANK This part replaces 0174547. |
| 0174557 | 0174557 | HSG. PICKUP & BULB ASSY. |
