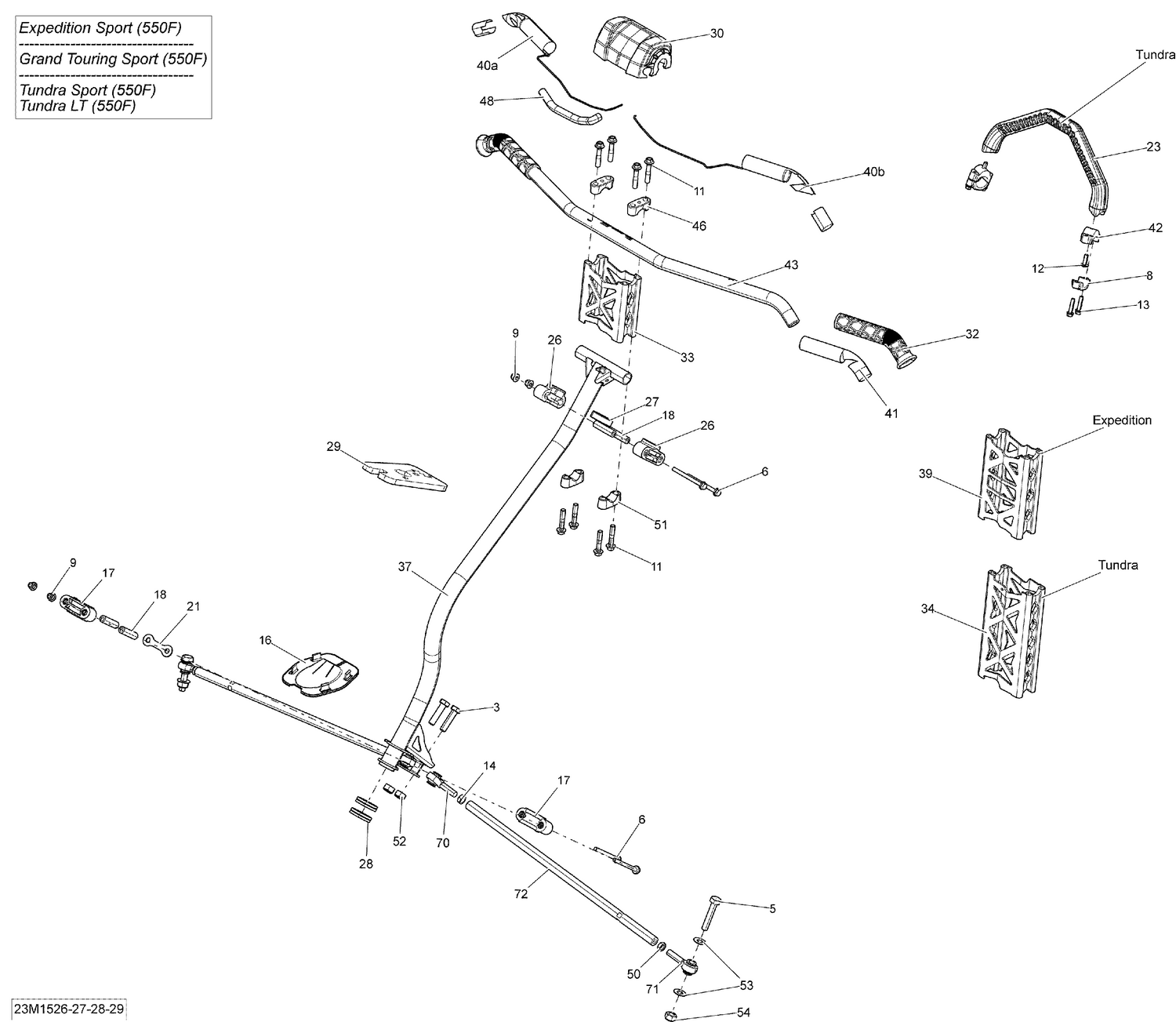

07- Steering _23M1529 — Parts Catalog

Ref	Part Number	Description
3	207004034	Hex. Screw M10 X 1.5 X 40
5	207004544	Hex. Screw M10 X 45
8	719000049	Clamps This part replaces 219800081.
11	250000352	Hex. Flange Screw M8 X 40
12	250000779	Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402.
13	250000447	Hex. Flange Screw M6 X 25
14	250100016	LH Threaded Hex. Jam Nut M10
16	XXX	Not Available As Spare Parts
17	506152217	Lower Half-Housing
21	506152389	Stopper Plate
23	506152460	Moulding Strap
26	506152508	Upper Half-Housing
27	506152509	Upper Anti-Vibration Gasket
28	506152518	Lower Vibration Ring
29	506152521	Bushing
30	506152541	Deep Black, Steering Pad
32	506152486	Grip
33	XXX	Not Available As Spare Parts
34	860200821	Extension Kit ( 205mm )
37	506152963	Steering Column This part replaces 506152586.
39	XXX	Not Available As Spare Parts
40a	506152370	RH Heating Element
40b	506152603	Heating Element 28 WATT
41	506152611	Isolant
42	506152703	Black Support Plate
43	506152709	Handle Bar, Non Dyed Clear Anodizing
46	506152751	Steering Support This part replaces 506152750.
48	219704427	LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership
50	732610010	RH Threaded Hex. Jam Nut M10
51	506152751	Steering Support
52	233601466	Elastic Locking Nut M10
53	506152582	Washer
54	233201464	Hex. Flange Elastic M10 x 1.5
70	506152081	LH Thread Ball Joint
71	506152019	RH Threaded Ball Joint
