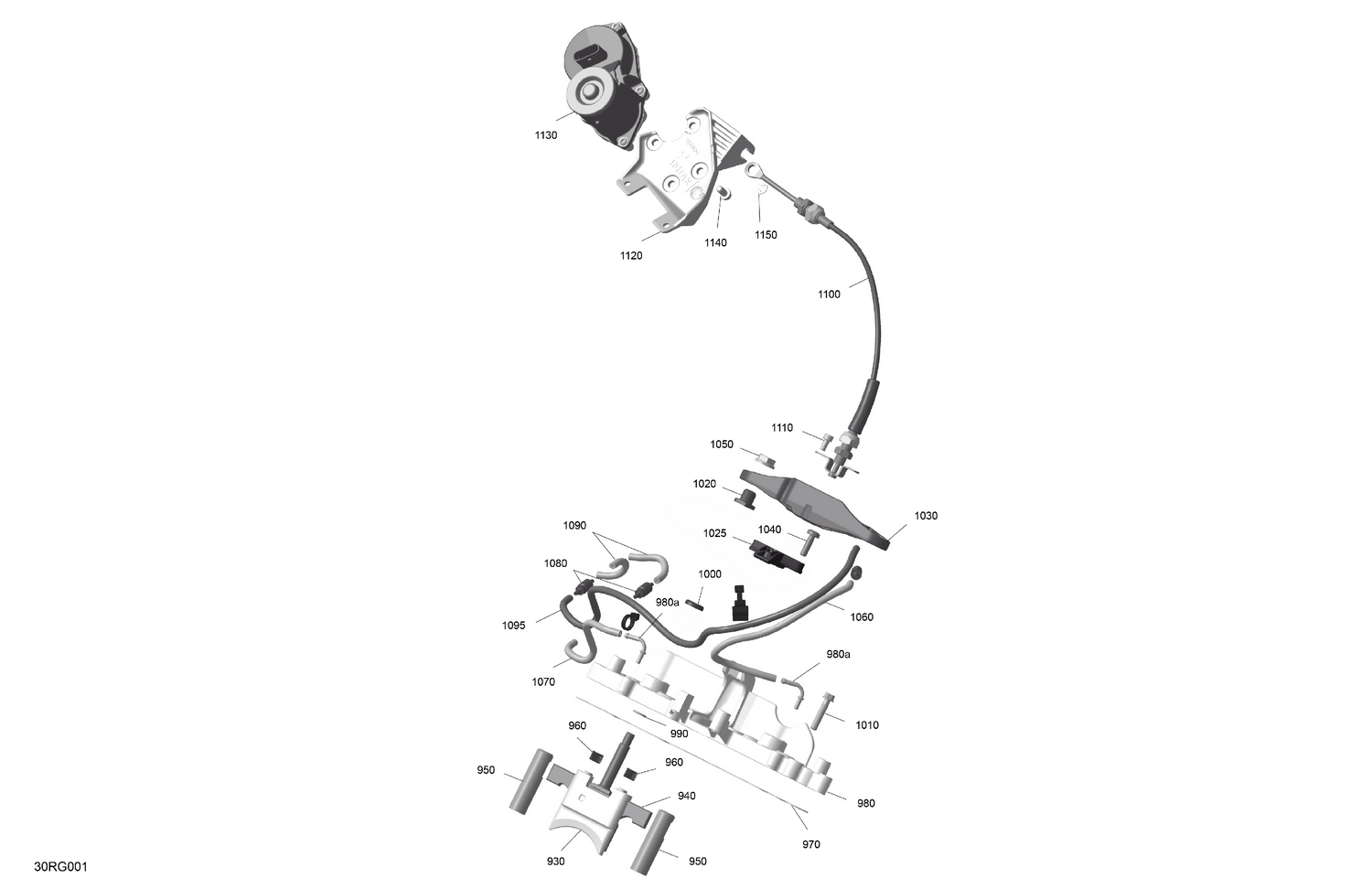

01- ROTAX - RAVE Valve
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 930 | 420954051 | Exhaust Valve Upper |
| 940 | 420954054 | Lower Exhaust Valve |
| 950 | 420954041 | Exhaust Valve |
| 960 | 420238558 | Spring |
| 970 | 420430037 | Valve Rod Housing Gasket |
| 980a | 420924053 | Fitting 90D |
| 990 | 420950950 | O-Ring |
| 1000 | 420950732 | Oil Seal |
| 1010 | 420440647 | Flanged Torx Screw M6 X 30 |
| 1020 | 420942331 | Collar Nut M8 |
| 1025 | 420260172 | Harness Support |
| 1030 | 420855350 | Valve Bar |
| 1040 | 420441386 | Flanged Torx Screw M6 X 20 |
| 1050 | 420942190 | Nut M12 X 1.5 |
| 1060 | 420201924 | Oil Line 673MM |
| 1070 | 420201924 | Oil Line 673MM |
| 1080 | 420956515 | Check Valve Ass’y |
| 1090 | 420201924 | Oil Line 673MM |
| 1095 | 420201924 | Oil Line 673MM |
| 1100 | 420997034 | Bowden Cable Ass'y This part replaces 420997034. |
| 1110 | 420240692 | Allen Screw M5 X 10 |
| 1120 | 420912006 | Mounting Bracket |
| 1130 | 420889432 | Servo Motor Ass'y |
| 1140 | 420440149 | Flanged Hex. Screw M6 X 12 |
